Home > Computer Products > Mainboard > ITX Mini pc Board ,Samsung ARM Motherboard,QL-PD Motherboard

ITX Mini pc Board ,Samsung ARM Motherboard,QL-PD Motherboard

Name: ITX Mini pc Board ,Samsung ARM Motherboard,QL-PD Motherboard
Brand: NODKA
SKU: 116611771

ITX Mini pc Board ,Samsung ARM Motherboard,QL-PD Motherboard thumbnail-1

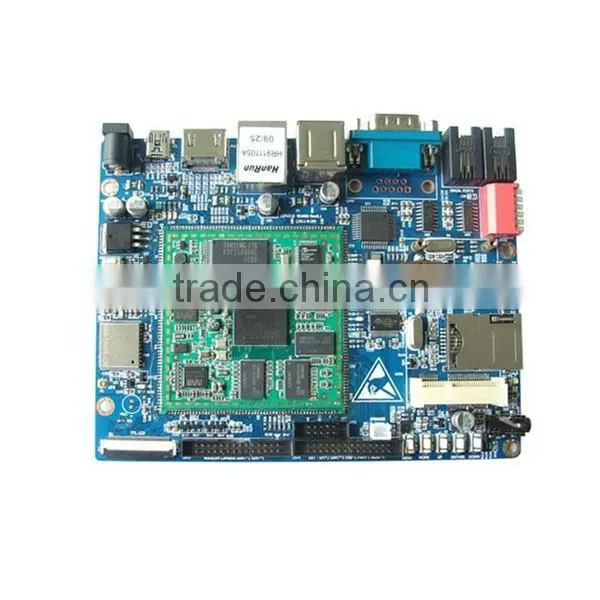

ITX Mini pc Board ,Samsung ARM Motherboard,QL-PD Motherboard photo-1

US$ 1 - 2 MOQ: 1 Piece

Key Specifications

Get Latest Price

Products Status:

Stock

Application:

Desktop

Chipset Manufacturer:

Other, Samsung

Contact Supplier Request Quote Chat Now

Shanghai CC Electronics Science&Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Application Desktop

Chipset Manufacturer Other, Samsung

Form Factor Mini-ITX

Memory Type DDR2

Graphics Card Type Integrated

Brand Name NODKA

Model Number NODKA-ARM1

Place of Origin Shanghai, China

Mini pc board motherboard with Samsung ARM Cortex-A8 S5PV210AH integrated ethernet ports arm motherboard
Description		NODKA-ARM1 integrates a high-performance, low-power 1GHz Samsung ARM Cortex-A8 S5PV210AH with Samsung K4T1G164QF chipsets and Samsung K9F2G08, delivering best performance-per-watt for communication, healthcare, automation, transportation, multimedia advertising, high performance POS machine, and surveillance applications.
		The compact NODKA-ARM1 offers a rich set of peripherals and interfaces including Ethernet, USB Host &OTG, Camera, HDMI, Serial ports, Audio, LCD, Keypad, T-Flash, Buttons and etc. The NODKA-ARM1 brings a flexible array of communications options including Wi-Fi, WCDMA and RFID. A SIM card slot is also included. Supporting Linux 2.6.32, WinCE6.0 and Android 4.0, the EM210 can deliver a variety of features and APIs that allow developers to highly custoize their system designs in the low-profile and fully-configured embedded devices.
		The board has complete electronic documentation, schematics, demo applications, and third party industry-standard C compilers and embedded development environments for evaluation. We are sure to have the right single board computer for your applications.
Feature		Specifications
CPU		Samsung ARM Cortex-A8 S5PV210AH, 1GHz System Clock Supporting NEON instruction Supporting MPEG-4, MPEG2, H.264/H263, VC-1 and DivX video codec Supporting 2D graphics acceleration, maximum resolution 8000*8000 Supporting 3D graphics acceleration(Power VR SGX540)
Memory		4G bits DDR2
Flash		2G bits SLC NAND FLASH
power		5V power supply , A power indicator light
CPU Dimension		60mm×60mm
Serial Ports (UARTs)		COM-0, five-wire DB9 RS232 serial port COM-1, four-wire RJ11 serial port COM-2, four-wire RJ11 serial port
LCD		The LCD port integrated 4-wire resistor touch screen port. The board comes with driver for 4.3", 7", 10.1", 15"(1024*768) TFT LCD
Ethernet		10M/100M High performance Ethernet, RJ45 interface
USB		2 × USB2.0 Host, 1 × USB2.0 OTG
Camera(optional)		1 × 20-pin 3.1Mega pixels CMOS camera interface
JTAG		1 × 10-pin JTAG Port
Mouse		Mouse working via USB
Keyboard		6*7 Keypad interface
Audio codec		Adopt WM9713 Audio chip, Audio I / O interface
RTC		Real Time Clock, powered by external lithium battery
SD card		1 x T-Flash card, 1 x SIM card slot
General Purpose I/O		1 x 30-pin SPI Expansion Connector
Buttons		6 Programmable User Buttons
WIFI(optional)		802.11 b/g/n
WCDMA(optional)		Supporting GSM card make calls, send messages
GPS(optional)		thinkstar GPS
External Interface		SPI,PWM ,ADIN and so on
RS232 serial port		RS232 serial port and 2 RJ11 serial port
Carrier board Dimension		108mm x 141mm
OS	Item	Feature	Description
Android4.0	Boot loader	Uboot-1.3.4	Main functions: 1.Supporting Nand Flash erase/write/read 2.Supporting USB download Image 3.Supporting print, set, save Environment Variables 4.Supporting memory's contents display/compare/modify 5.Supporting bootm, bootargs setting
		USB Installer.bin	Uboot boot process, download uboot by the process
		Image update	Support updating image from SD card or USB
	Kernel and drivers	Kernel version	Linux 3.0.8
		Drivers (source code)	Serial ports, RTC, 4.3/ 7/ 10.1/15 inch LCD including Touch Screen, SD, USB Host, USB OTG, LEDs, AC97, Keyboard, 3-axis accelerometer, PWM, IIC, SPI, MFC, TVOUT, HDMI, JPEG, WIFI, WCDMA, GPS, DM9000
	File System	File System	Yaffs File System
	Embedded GUI	Android4.0	Support file browser, Mediaplayer, Calendar, time, counter, Touch Screen Calibration program, Plug-in manager.
	Network protocol & application	Network Protocol	TCP/IP protocol, Telnet, FTP Client/server, boa web server
		Application	Alarm Clock, Browser, Gallery, Calculator, Camera, Phons, Email, Maps, ES File Explorer, Mediaplayer, Music, Picsay, ASTRO
	Cross compiler Environment		Arm-2009q3.tar.bz2, JDK1.6
	Debug Tools		DNW, MoviNAND_Fusing_Tool.exe, VmWare7.0
