Help Center7 "high-performance Embedded Integrated Touch Screen
US$ 1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Memory Type:
SDRAM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10.2"touch Screen,TFT Displays,1020 x 600 ,1*USB,1*RS232,1*RS485US$ 1 - 2MOQ: 1 Piece -
Quad Core ARM Based Industrial Motherboard Board for Kiosk /tv Box/ ad PlayerUS$ 1 - 2MOQ: 1 Piece
-
Mini Quad Core Industrial ARM Motherboard and Debug Board,support Various Interface VGA+SATA+PCIE+GPIO+APP UART EtcUS$ 1 - 2MOQ: 1 Piece
-
Mini pc Board Motherboard Integrated Ethernet Ports Arm MotherboardUS$ 1 - 2MOQ: 1 Piece
-
Quad Core ARM Based Industrial Motherboard BoardUS$ 1 - 2MOQ: 1 Piece
Products Status
Stock
Application
Desktop
Memory Type
SDRAM
FSB / HT
600MHz
Brand Name
NODKA
Model Number
ND-TPC7062Ti
Place of Origin
Shanghai, China
| 7 "high-performance embedded integrated touch screen | ||
|---|---|---|

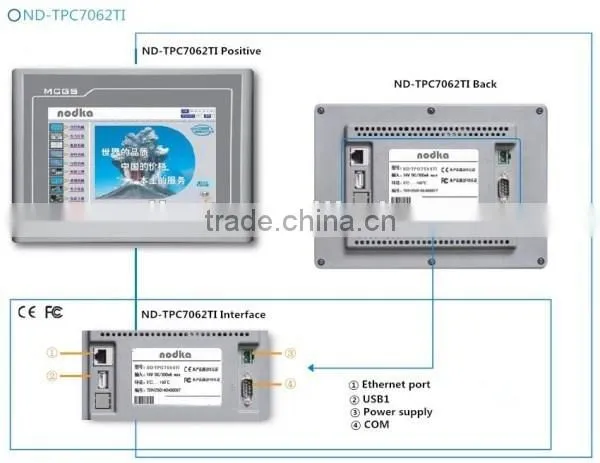

| Features | ND-TPC7062Ti, is a set of advanced Cortex-A8 CPU core (clocked at 600MHz), high-performance embedded integrated touch screen. The product is designed with a 7-inch high-brightness TFT LCD display (resolution of 800 × 480), four-wire resistive touch screen (resolution of 4096 × 4096). Also preloaded embedded configuration software (running version), with a powerful image display and data processing functions. | |
| Product Features | LCD display | 7 "TFT displays, LED backlighting |
| Display Color | 65535 true color | |
| Resolution | 800 x 480 | |
| Display brightness | 200cd/m2 | |
| Touch screen | Resistive | |
| Rated voltage | 24±20%VDC | |
| Rated Power | 5W | |
| Processor | cortex-A8,600MHz |
|
| Memory | 128M | |
| System Storage | 128M | |
| Ferroelectric Storage | - | |
| SD card storage | - | |
| Configuration Software | Embedded Edition | |
| External parts | Serial ports | COM1(RS232),COM2(RS485) |
| USB interface | 1xMain port(USB2.0) | |
| Ethernet port | 10/100MAdaptive | |
| Environmental conditions | Working temperature | 0%~45% |
| Operating Humidity | 5%~90% | |
| Storage temperature | -10℃~60℃ | |
| Vibration frequency | 0℃~57Hz 57~150Hz | |
| Product Specifications | Housing material | Industrial Plastics |
| Shell color | Industrial gray | |
| Panel Size | 227 x 163mm | |
| Cabinet openings | 215 x 152mm | |
| Certified Protection | Product Certification | CE/FCC |
| Degree of protection | IP65 Front Panel | |
| Immunity | Industrial three | |
