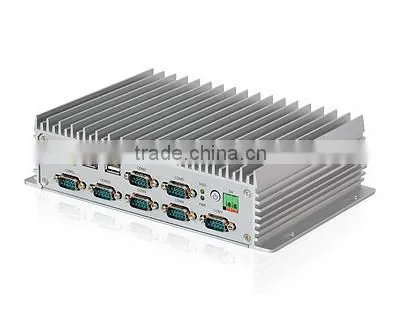

Industrial Fanless Mini PC,Intel Atom D2500 Dual-core Processor,2*RJ45,6*USB,6*RS232/RS485,,Mini-PCIe
US$ 1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, eBOX PC
Brand Name:
NODKA
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Powerful Fanless PCUS$ 1 - 2MOQ: 1 Piece -
Fanless Industrial Computer, Fully Sealed Fanless, High Performance Core Duo, Dual Gigabit Ethernet, 6 * RS232, PCI, PCIe ExpansUS$ 1 - 2MOQ: 1 Piece
-
Fanless Intel Bay Trail Mini Pc,J1900 CPU,2 GLAN,6 USB,6 RS232,VGA,H DMI,AudioUS$ 1.00 - 1.00MOQ: 1 Piece
-
Fanless Industrial Computer for Various ApplicationUS$ 1 - 2MOQ: 1 Piece
-
Fanless Intel Atom 1.6GHz CPU,2*RJ45, 6 * RS232, 6*USB,PCI, PCIe Expans Mini Box pcUS$ 1 - 2MOQ: 1 Piece
Products Status
Stock
Type
Other, eBOX PC
Brand Name
NODKA
Model Number
eBOX-322X
Place of Origin
Shanghai, China
eBOX PC Low-power, high-performance, DVI / VGA dual display, 6 serial ports | ||
Institutional parameters |
Box structure | Aluminum box structure, with good shock resistance and impact resistance |
| Surface treatment | Hard anodized, scratch resistant | |
Installation |
Support for desktop and wall-mounted |
|
Switches and indicators |
Power Switch / Power LED / HDD LED |
|
| Cooling System | Finned aluminum heat | |
| Power Input | Standard DC 12V input, with overcurrent, overvoltage, reverse polarity protection | |
| Overall dimensions | 234×150×60mm (Width × Height × Depth) | |
| Color | Iron gray | |
| Total Weight | Weight: | |
System parameters |
Processor |
Onboard Intel Atom D2500 dual-core processor (TDP10W), clocked at 1.86GHZ, 1M secondary cache |
Chipset |
Intel NM10(TDP2.1W) |
|
Memory |
Standard DDR3 2GB memory (up to 4G memory) |
|
| Disk | Support SATA 2.5 "SSD and HDD, HDD support MSATA | |
| Show | Integrated Intel GMA3600 graphics chip, support for DVI, VGA output | |
Network ports |
2 Realtek RTL8111E Gigabit Ethernet ports |
|
| Wireless Network | A Mini-PCIe slot, scalable 3G, Wifi wireless card | |
| Audio | Realtek ALC662 audio controller | |
| USB | 6 USB2.0 ports, with 8KV ESD protection | |
| Serial ports | 6 RS232 / where (expandable to 12 serial ports via expansion cards, COM7-COM12 supports 232 and 485 and has an optional surge protection) | |
| GPIO | 4 into 4 | |
| Expand | Support PC104PLUS | |
| Interface | VGA/DVI/2GLAN/6USB/6COM/AUDIO | |
| Watchdog | 0 ~ 255 seconds programmable settings | |
Environmental parameters |
Operating Temperature |
-20 ~ 60 °C (excluding mechanical hard drive) |
Storage Temperature |
-40~80°C |
|
Relative Humidity |
95% (Non-Condensing) |
|
| Vibration | 50~500Hz,1.5G,0.19mm Peak | |
Impact |
10G/eak(11ms sec) |
|
