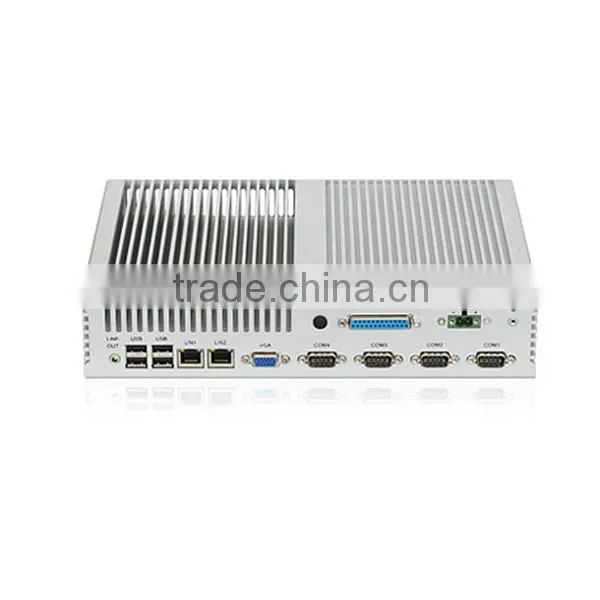

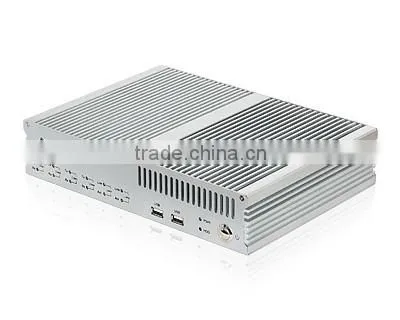

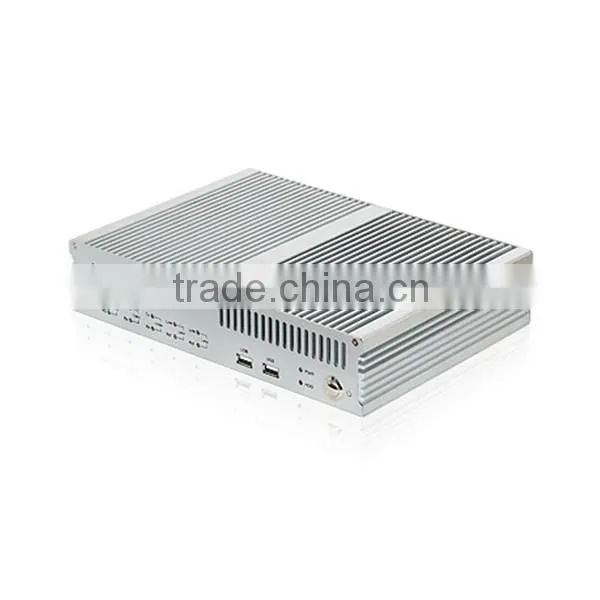

Fanless Industrial Computer for Various Application
US$ 1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, eBOX PC
Brand Name:
NODKA
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fanless Intel Atom 1.6GHz CPU,2*RJ45, 6 * RS232, 6*USB,PCI, PCIe Expans Mini Box pcUS$ 1 - 2MOQ: 1 Piece -
Fanless Industrial PC Support PCI and PCIe SlotUS$ 1 - 2MOQ: 1 Piece
-
J1900 Bay Trail Industrial Computer,mini Computer,fanless Computer,android,HDM I,US$ 1 - 2MOQ: 1 Piece
-
Fanless Industrial Computer, Fully Sealed Fanless, High Performance Core Duo, Dual Gigabit Ethernet, 6 * RS232, PCI, PCIe ExpansUS$ 1 - 2MOQ: 1 Piece
-
Fanless BOX PC,intel Atom N2600 CPU,2G Memory,6*USB,4*RS232/RS485,2*RJ45US$ 1 - 2MOQ: 1 Piece
Products Status
Stock
Type
Other, eBOX PC
Brand Name
NODKA
Model Number
eBOX-3610
Place of Origin
Shanghai, China
Fanless industrial computer,low power consumption,wide operating temperature range,on-board CPU | ||
Institutional parameters |
Box structure | Aluminum box structure, with good shock resistance and impact resistance |
| Surface treatment | Hard anodic oxidation treatment sandblasting, anti-scratch | |
Installation |
Support for desktop and wall-mounted |
|
Switches and indicators |
Power Switch/Power LED/HDD LED/Network communication indicator / serial communication indicator |
|
| Cooling System | Large aluminum plate fin heat | |
| Power Input | DC9~30V wide voltage work, with overcurrent, overvoltage and reverse polarity protection | |
| Overall dimensions | 285 × 205 × 60 mm (Width × Height × Depth) | |
| Color | Gray Iron Oxide Anodes | |
| Total Weight | Weight:2.84 KG | |
System parameters |
Processor |
Onboard Intel Atom N2600 1.6GHZ (TDP3.5W) or N28001.86GHZ (TDP6.5W) dual-core processor, two cache 1M |
Chipset |
Intel NM10(TDP2.1W) |
|
Memory |
DDR3 2GB Onboard Memory |
|
| Disk | Support SATA 2.5 "SSD, HDD and CFASTA | |
| Show | I ntel GMA3650 512MB shared memory, VGA display interface | |
Network ports |
2 INTEL 82583V 10/100/1000Mbps RJ45 ports, with lightning, surge and 15KV ESD protection |
|
| Wireless Network | A Mini-PCIe slot, scalable 3G, Wifi wireless card | |
| Audio | Realtek ALC662 Audio Controller | |
| USB | 6 ×USB2.0 ports, with 8KV ESD protection | |
| Serial ports | 4 optional RS232/RS485 serial signal has 2.5KV magnetic coupling isolation, 600W surge protection RS232 support 5V/12V voltage selector, RS485 supports automatic data flow control. | |
| GPIO | 8-channel input, 8-channel output | |
| Watchdog | 0 ~ 255 seconds programmable settings | |
Environmental parameters |
Operating Temperature |
-20°C~+60°C(Electronic disk) |
Storage Temperature |
-40~+80°C |
|
Relative Humidity |
95% (Non-Condensing) |
|
| Vibration | 50~500Hz,1.5G,0.19mm Peak | |
Impact |
10G/eak( 11ms sec ) |
|
