High Precision Silicon Steel YAG Laser Cutter Machine Manufacturers for Pipe and Sheet

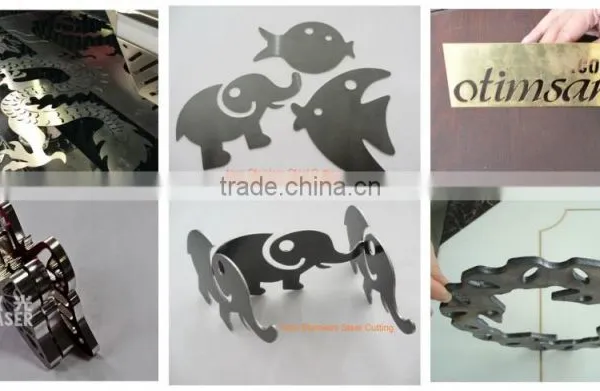

YAG Laser Cutting Machine Applicable materials:
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium
YAG Laser Cutting Machine Strength:
1.Convey Belt Automatically collect cutting parts
2. Drive system
Lead screw and guide line with selflubrication ( In cleaning working condition, oil and pumps service time reach to half years )
3. 7P Precision Temperature-Control Display Water Chiller
a. High and low voltage protection
b. Laser overheating protection
c. Current overload protection
d. (Three-phase power) Lack of phase and phase sequence protection
e. Leak-proof electrical grounding protection
4. Industrial air condition
Tianqi is nominated supplier for Mc Quay and Japan Daikin Industry
1) Dust proof
2) Keep consistent temperature, directly expand service time of equipment---especially laser power and circuit board lifetime.
5.Laser part Full reflection lens
Half reflection lens, focus lens, expander lens with spherical surface lens, easy focusing. Xenon lamp:good light strength and sealing Focus lens with Quartz grating-telescope---easy adjusting light
YAG laser cutting machine specific parameter
Laser type |
YAG lamp pump solid state laser generator |
Laser power |
500w 620w 750w 1000w |
Cutting area |
1500mm x 4100mm, 1500mm x 3000mm, 1300mm x 2500mm |
Working table |
Saw tooth working table |
Motion system |
Digital offline control system; IMPORT servo motor; ABBA high precision ball screw; linear guide transmitting system |
Repeating position accuracy |
±0.04mm |
Max. cutting thickness (Air) |
Ferrous metal: 10mm carbon steel, 8mm stainless steel Nonferrous metal: 4mm aluminum, 3mm brass & copper) |
Suggested cutting thickness |
Ferrous metal: 0.5-6mm carbon steel, 0.5-6mm stainless steel Nonferrous metal: 0.5-4mm aluminum, 0.5-3mm brass & copper |
Cooling system |
External constant-temperature water chiller system |
Auxiliary gas |
Dry filter compressed air: carbon steel, stainless steel, aluminum, brass and copper N2 :stainless steel when need shiny cutting edge |
Workshop environment |
Temperature 0-40 Centigrade, Humidity 45-85%, good ventilation, no corrosive gas, etc |
