Specifications
laser cutting machine1.Dual use Metal laser cutting
2.Cutting Pipe And Sheet
3.excellent laser machine
4.Good cutting edge
laser cutting machine

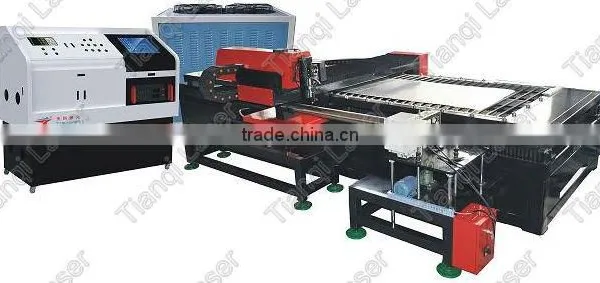

Dual use Metal laser cutting machine For Pipe And Sheet
Machine Features:
1. High precision: precise cutting for various precision part, arts and crafts.
2. Fast speed: 100 times higher than linear cutting.
3. Small heat affected zone, good dimension stability. Smooth and beautiful cutting edges do not need later processing.
4. Competitive price: the price is only 1/3 of the similar CO2 laser cutting machine and 2/5 of the NC Punch.
5. Low use cost: only USD2-USD5 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour).
6. Low follow-up maintenance cost: only 1/10~1/15 of the similar CO2 laser cutting machine and 1/3~1/4 the NC Punch.
7. Steady performance: as one of the most stable and mature laser apparatus in the laser field, the YAG laser cutting machine is suitable for long time continuously production.
Compared with CNC Punch machine, YAG laser cutting machine have many advantages:
(1)Any complicated structure which can be drawn on the computer can be manufactured by CNC YAG laser cutting machine.
(2)If the product image has be drawn on the computer, the product can be manufactured immediately without opening mould technology. It can be used to develop new products rapidly and reduce cost.
(3)Both 2D &3D cutting and surface trimming can be finished by automatic tracing system of YAG laser cutting machine.
(4)Laser cutting machine can accomplish the complicated process which is hard to achieve by CNC punch.
(5)The machine can make high grade production with smooth surface, which is hard to obtained by CNC punch.
(6)Round pipe & Square pipe cutting can be finished,it can not be processed by CNC punching machine.
(7)Forming the body (the height should be within 0.5 meter) which need increase the slot-hole processing can be achieved by YAG Metal Laser Cutting Machine, while CNC punching machine cannot do it.
Technical Parameter:
Model: |
TQL-LCY620-GC2513 |
Processing scale(L×W): |
2500mm×1300mm |
Max. output power: |
620W |
Laser wavelength: |
1064nm |
Pulse frequency: |
1--300HZ |
Min. linewidth: |
0.15mm |
Sheet metal cutting thickness: |
0.2mm-8mm |
Diameter of the pipes: |
10-800mm |
Max. length of the pipes |
According to clients' need |
Pipe cutting thickness: |
0.2mm-8mm |
Electrical source: |
380V/50HZ/100A |
X,Y,Z axis geometric positioning accuracy: |
≤±0.08mm/1000mm |
X,Y,Z axis re-orientation accuracy: |
≤±0.04mm |
Cooling mode: |
7P industry temperature display water cooling |
Max. cutting speed: |
35mm/s |
Application:
YAG laser cutting machine has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.
Applicable materials:
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe.
Research and Development:
Through continuous research and development, our own research laboratory device has been developed into laser equipment which can work continuously and stably for 24-hour a day. Tianqi laser has developed a series of high-end laser products, and owns several patents.
Service:
Tianqi Laser set up a marketing management center, 16 offices across our domestic country and 3 branches worldwide, resident technical engineer provide comprehensive pre-sale, after sales support and service. We provide one year warranty and lifetime maintenance. Also we provide online and telephone service 24 hours a day, when it is necessary, we will send technician to the customer side to solve the problem.
Pls let me know the following information:
1,What kind of material do you want to cut or process?
2,What is the dimension of your mental(including length,width and thickness)?
According to the above information ,we will recommend the most suitable machine for your metal.

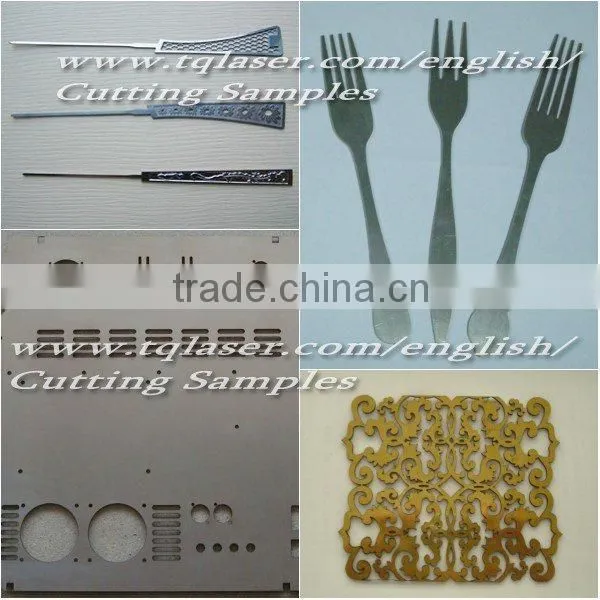

Sample Cutting:
