Specifications
Advanced technology, wide application range, long durability

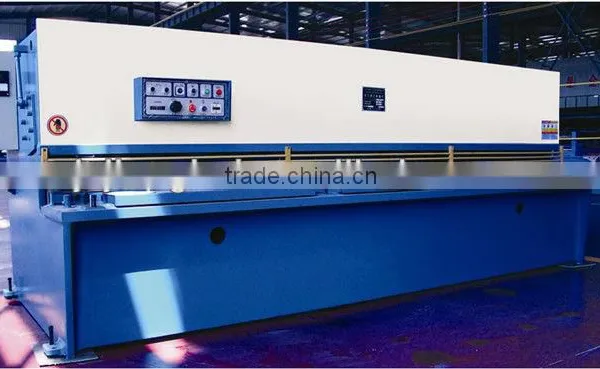

QC12Y Hydraulic Swing Beam Shearing Machine
/ Hydraulic Pendulum Shearing Machine
/ Plate Cutting Machine
Applicable fields: metal products, steel plate, stainless steel plate, aluminium plates, house-used, machinery manufacturer, etc.
Machine Features
1. Completed frame welded, vibration to eliminate stress, high in rigidity, sturdy and durable.
2. The plate shearing machine is equipped with advanced hydraulic system, driven by hydraulic and returned by nitrogen cylinder; it is with stable and reliable performance, easy for operation and beautiful machine appearance.
3. The machine is equipped with front sheet and back gauge, the front sheet is counted by scale, and the back gauge is displayed values by counter, both of which is with high precision and accurate position.
4. The gap between blade is adjusted by dial gauge, which is more intuitive, fast, accurate and convenient.
5. Equipped with the function of shearing counter, which is easy for counting.
6. Equipped with lighting-alignment, so as to align when shearing.
7. Protection fence and the electric interlock to ensure the operation safety.

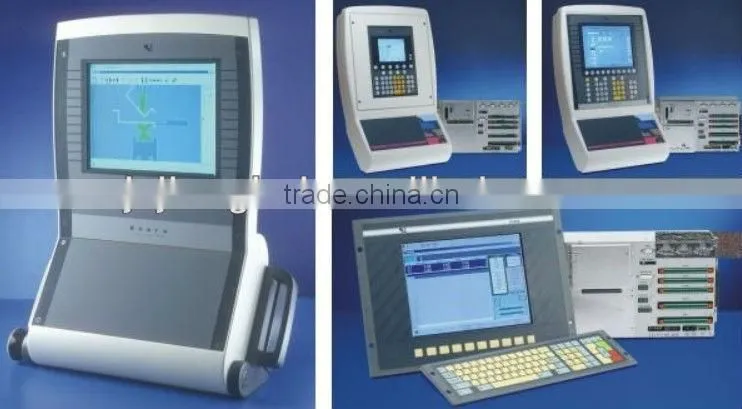

8. CNC is optional.
Main Allocation
1. Domestic famous brand Piston Pump (Kangting, Shanghai)
2. Korean AUTONICS Digital Display System
3. Siemens Electrical Units or Schneider Electric
4. Cylinder: Jianhu Hongwei Brand

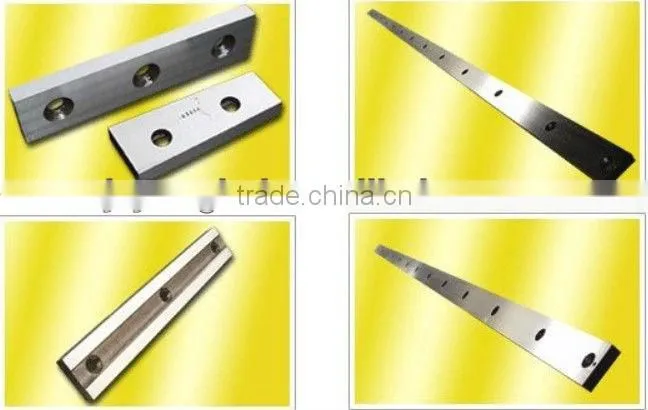

5. Blade is the products of Shanghai Blade Factory
6. Equipped with front sheet frame
7. Valve group is Shengwang products.
8. Main motor: Hengli Brand
Main Specification
Description |
Value |
Unit |
Max. Shearing Thickness |
60 |
mm |
Max. Shearing Width |
3500 |
mm |
Plate Tensile Strength |
450 |
N/mm² |
Cutting Angle |
3.5° |
|
Stroke Times |
5 |
n/min |
Range of Back Gauge |
20-800 |
mm |
Power of Main Motor |
90*4 |
Kw |
Blade Length |
3600 |
mm |
Blade Material |
6CrW2Si |
|
