Specifications
Press brake machine that works in parallel with synchronized control system.Optimizing parallel work and keep a uniform and precTechnology and Process

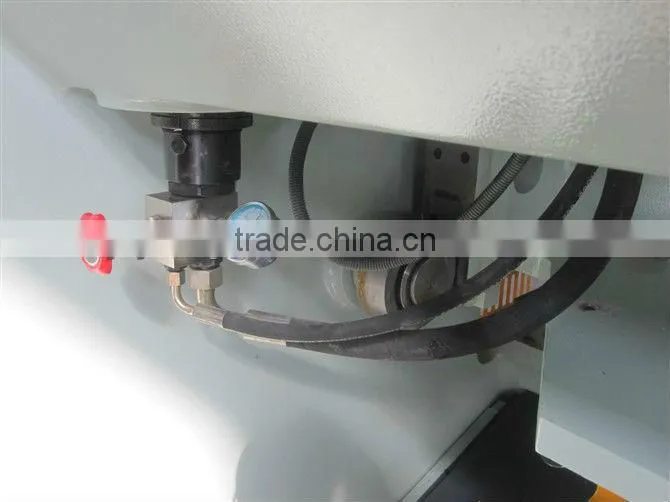

1. The machine is applied hydraulic integrated valve blocks, with compact structure. Reduction of pipe connection improves system reliability and maintenance.
2. The bending machine is used parallel cylinder. To guarantee the precise position in lower dead point, the mechanical block mechanism is set inside the cylinder and adjusted by electrical motor. The synchronization of slider during traveling is applied mechanical synchronous mechanism, which is with simple structure, reliable and steady, and easy for maintenance.
3. The slider stroke is infinitely variable controlled.
4. The dies of bending machine is alloy steel which is forged, milled and heat treated. The upper die is connected with short dies and then formed into complete long die, with high precision and good interchangeability, as well as easy to load and unload.
Configuration
Cylinder: Mingsheng Brand

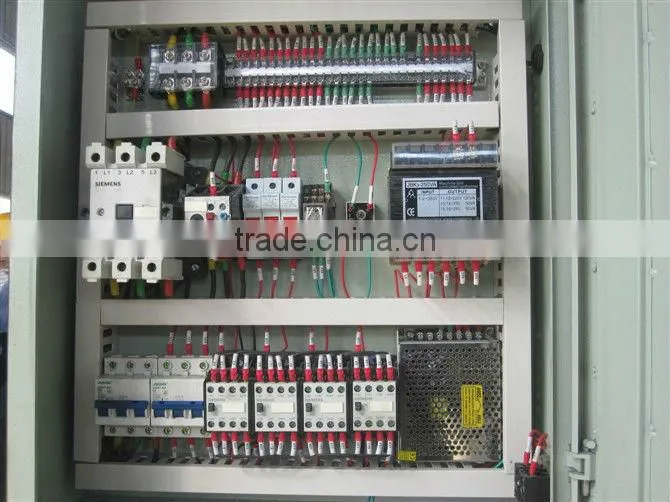

Main electrical units: Siemens or Schneider
Valve group: Jining Taifeng (OMEGA)
Die material: T8A
Main motor: Vetor Electrical Motor
System: AUTONICS
Gear Pump: Shanghai Chengjie or Hangfa Oil Pump Factory
CNC System is optional.
Technical Parameters
| Type | Nominal Press Force KN | Working Table Length mm | Column Distance mm | Max. Opening Height mm | Throat Depth mm | Slider Stroke mm | Power of Main Motor Kw |
| WC67Y-40T/2000 | 400 | 2000 | 1550 | 250 | 200 | 100 | 4 |
| WC67Y-40T/2200 | 400 | 2200 | 1700 | 250 | 200 | 100 | 4 |
| WC67Y-40T/2500 | 400 | 2500 | 2050 | 250 | 200 | 100 | 4 |
| WC67Y-50T/2500 | 500 | 2500 | 2050 | 300 | 200 | 100 | 4 |
| WC67Y-50T/3200 | 500 | 3200 | 2500 | 320 | 250 | 100 | 4 |
| WC67Y-63T/2500 | 630 | 2500 | 2050 | 320 | 250 | 120 | 5.5 |
| WC67Y-63T/3200 | 630 | 3200 | 2500 | 320 | 250 | 120 | 5.5 |
| WC67Y-80T/3200 | 800 | 3200 | 2500 | 340 | 250 | 120 | 5.5 |
| WC67Y-80T/4000 | 800 | 4000 | 3100 | 340 | 250 | 120 | 5.5 |
