Specifications

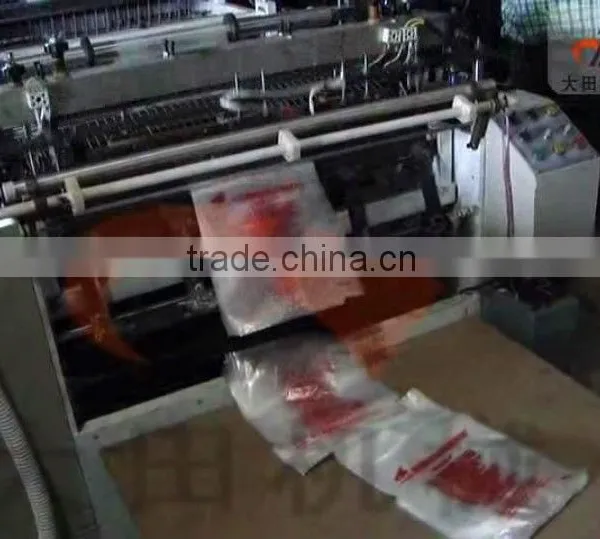

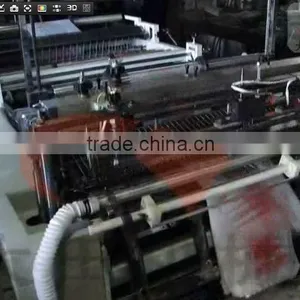

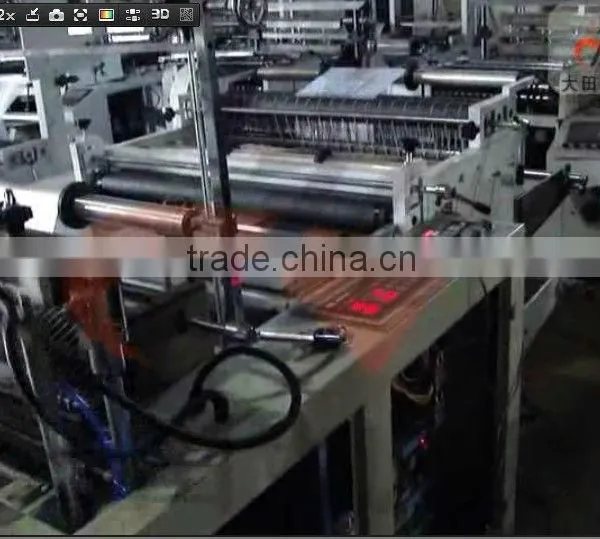

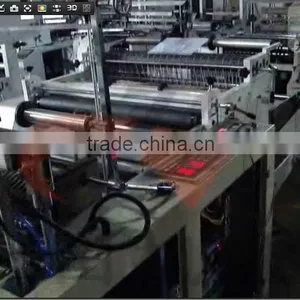

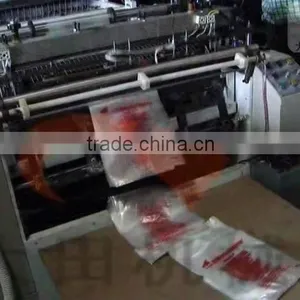

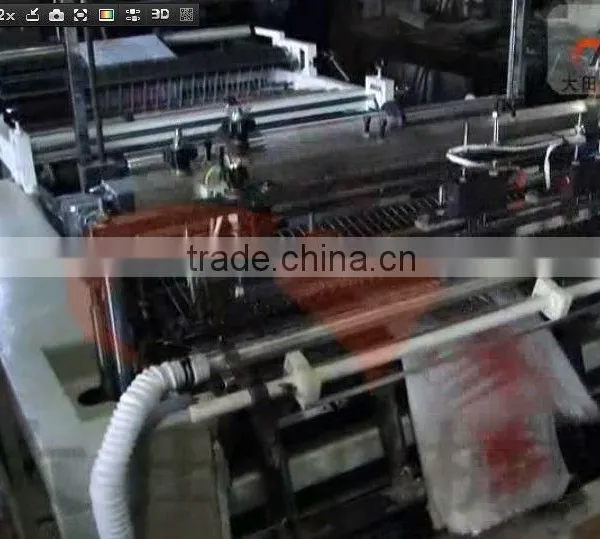

Computer Automatic Heat-Sealing and Heat-Cutting Bag-Making MachineComputer Automatic Heat-Sealing and Heat-Cutting Bag-Making Machine
Computer Automatic Heat-Sealing and Heat-Cutting Bag-Making Machine
Characteristics:
This machine is suitable for making barrel-type plastic vest bags of natural co lour and co lour-printed bound plastic vest bags.
It adopts advanced photoelectric eyes tracking which makes the printing pattern position be accurate without error, the sealing synchronize with the heat-cutting without any pulling force and the sealed bottom be firm and beautiful. Equipped with variable frequency speed regulating motor, it has many automatic protection functions such as energy-saving, over-load, over voltage and over current current, etc. And equipped with automatic counting device, it can arbitrarily set the binding quantity and can automatically discharge and reset after the bags are piled to the set quantity.
| Model | DFR-500 | DFR-700 |
| Max.Sealing and Cuttting Width | 500mm | 700mm |
| Sealing and Cutting length | 100 -1000mm | 100 -1000mm |
| Sealing and Cutting Thickness | 0.01 -0.05mm | 0.01 -0.05mm |
| Error in Length | ± 1mm | ± 1mm |
| Bag-making Speed | 40-120 pcs/min | 40-120 pcs/min |
| Power of Main Motor | 0.75Kw | 1.1Kw |
| Heating Power | 2Kw | 2.4Kw |
| Total Power | 3Kw | 3.8Kw |
| Weight of Machine | 800kg | 900kg |
| Overall Dimensions | 3000×1100× 1500mm | 3000×1300× 1500mm |
