Pre-stressed Concrete Pole Spinning Machine
- 100 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- CNC router for stone processing engraving machine
- Glass polishing machine JMB95A
- Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
- Automatic aluminum window corner connector cutting machine
- aluminum door and window frame cutting machine aluminum windows and doors machine
- Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
Condition: | New | Type: | Pipe Production Line | Pipe Material: | Concrete |
Application: | Energy Supply Pipe | Place of Origin: | Shandong, China | Brand Name: | BY |
Weight: | 5 Ton | Certification: | CE ISO | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

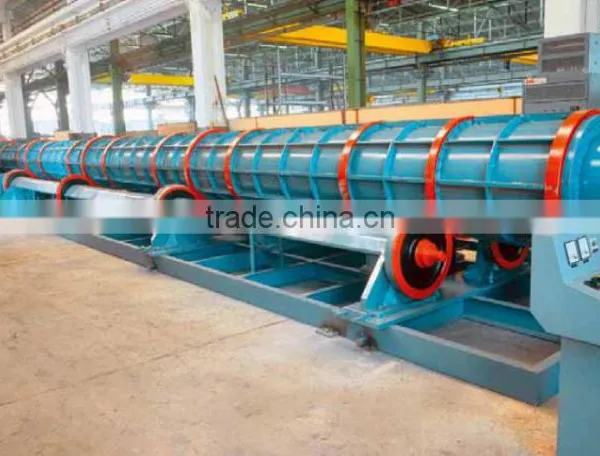

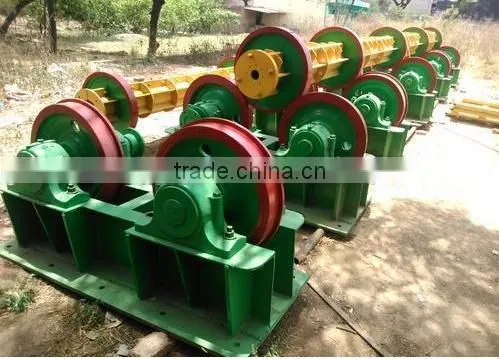

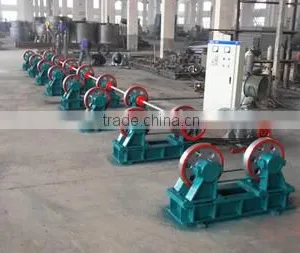

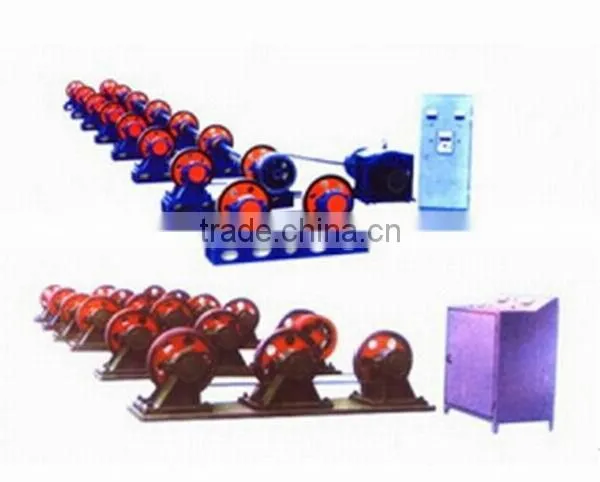

Pre-stressed Concrete Pole Spinning Machine
Product Description

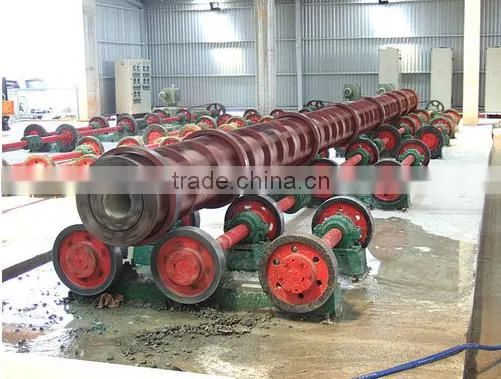

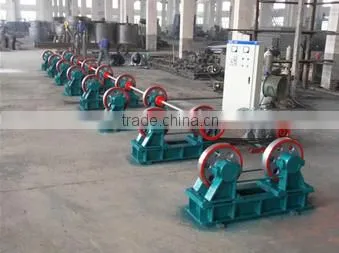

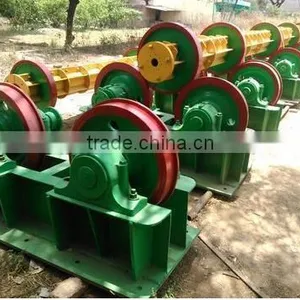

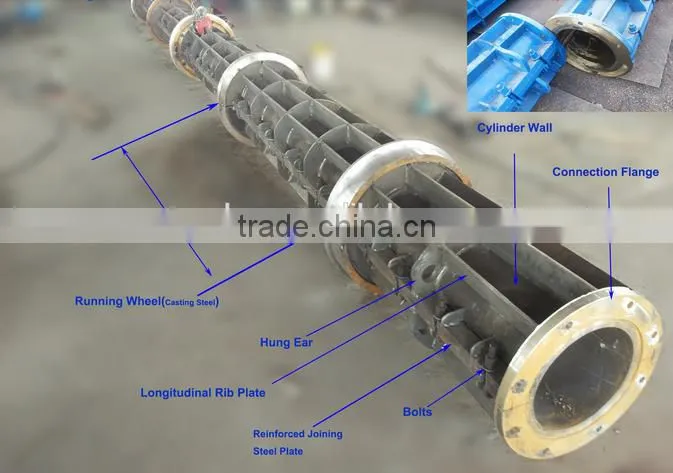

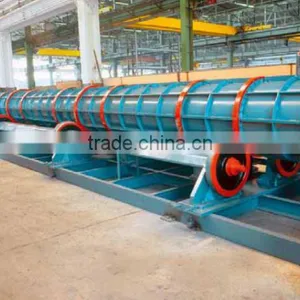

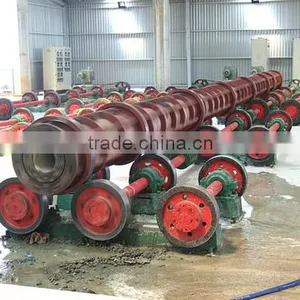

This machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
This machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.

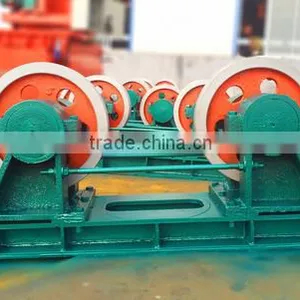

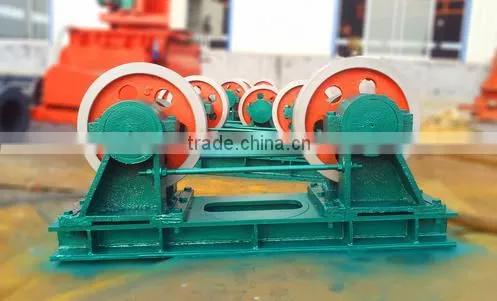

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
Working Principle
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.
Technical Parameter
top end inner diameter (mm) | Tread (mm) | Running wheel diameter (mm) | Length (m) |
150 | 2000 | 600 | 7-12 |
170 | 2000 | 600 | 7-12 |
190 | 2000 | 650 | 7-15 |
230 | 2000 | 650 | 6-9 |
300 equal diameter | 2000 | 600 | 6-9 |
350 equal diameter | 2000 | 650 | 6-12 |
310 | 2000 | 650-780 | 6-15 |
Features
1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.
Qingzhou Yibang machinery Co., Ltd. is located in Qingzhou City, Shandong Province, a developing city with long history. It is the professional manufacture of electric power tools and car care products in China. It is a high-tech enterprise which has a complete set of specialized designing, manufacturing, installation, sales and after-sale service. The company strictly executes quality standard or according to customers’ need to produce.
After many years of operation, our company has garnered widespread customer satisfaction and achieved great success through its reputation for excellence, top-notch quality, and impeccable service.
Electric power tools, Car care products and stone machinery is our main product. Yibang has developed into a famous enterprise with excellent management, standard operation.
Our corporate culture is "Unity, striving, sharing, respect and innovation." It is unity and innovation that are the strength of YIBANG.
Our Concept: "To achieve better quality and service”
Our Brief is ''Innovation creates power."
Please give us a chance, we'll offer you a satisfaction.
Welcome all customers both at home and abroad to establish business relationship with us.
Pre-sale Service:
Analyze the customer’s need and market prospect. We offer free design, free technology support and free machine maintenance training.
In-sale Service:
Provide service of installation; provide training for operator and maintenance staff.
After-sale Service:
Long-life technical support
Supply parts service
Warranty: one year
For more information please contact us, And you are welcomed to visite our factory!
