Pre-Stressed Spun Concrete Electric Pole Making Machinery/Concrete Pole Making Equipment
Overview:

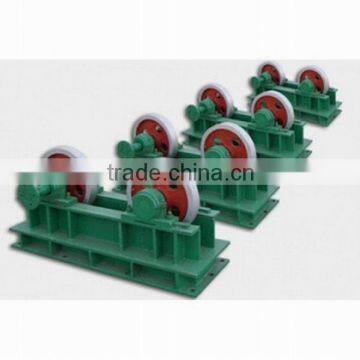

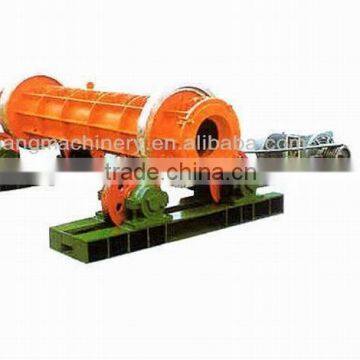

Pre-stressed Concrete Spun Pole Spinning Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
Pre-stressed Concrete Spun Pole Spinning Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
Working Principle:

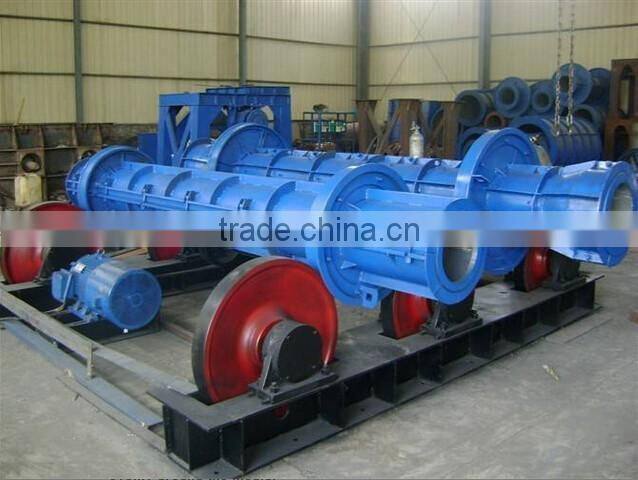

1. This spun pile steel mould shall operate together with pile spinning machine.
2. This mould forms pile under the force of centrifugal. There are longitude stiffeners and latitude stiffeners on the mould surface.
3. The mould rotates in high speed under the motor driven. The redundant water in the slurry is released by the force of centrifugal, and the concrete is dense and high in strength. And the spun pile is formed around the inner wall of the mould.
Technical Parameter:
Top end inner diameter (mm) Tread (mm) Running wheel diameter (mm) Length (m)
150 2000 600 7-12
170 2000 600 7-12
190 2000 650 7-15
230 2000 650 6-9
300 equal diameter 2000 600 6-9
350 equal diameter 2000 650 6-12
310 2000 650-780 6-15
Features:
1. This spun pile steel mould shall operate together with pile spinning machine.
2. This mould forms pile under the force of centrifugal. There are longitude stiffeners and latitude stiffeners on the mould surface.
3. The mould rotates in high speed under the motor driven. The redundant water in the slurry is released by the force of centrifugal,
and the concrete is dense and high in strength. And the spun pile is formed around the inner wall of the mould.
