Specifications

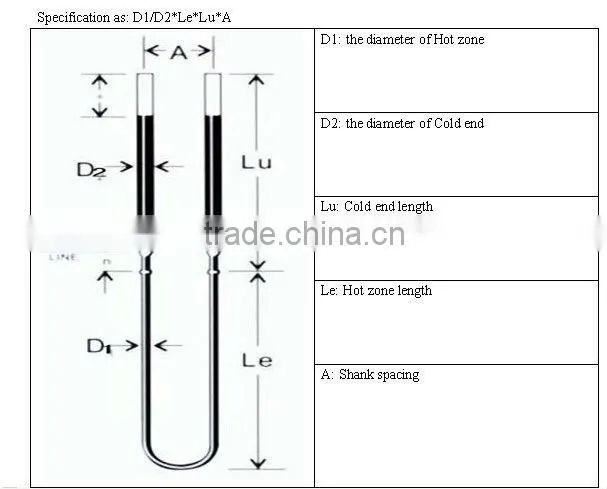

heating element(Molybdenum Disilicide Heater MoSi2 )type:U,W,UL,WL,Rod
Dia(mm):3/6,4/9,6/12,9/18,12/24
MoSi2 Heating element
kejia molybdenum disilicide MoSi2 heating elements can quickly form a thin and adhesive anti-oxidizing layer of quartz glass (SiO2), under the high temperature oxidizing condition. If the protective layer was damaged, the element can reform a new one, so MoSi2 Heater Molybdenum Disilicide Heating Elements have a very good anti-oxidation properties, it also means that the heating element can be used on operation for a much longer time than the traditional one.It is used to the highest temperature up to 1850C during oxidizing atmosphere.
Physical property of the MoSi2 heating element
| volume density | 5.5~5.6g/cm³ | bend strength | 5.5~25kg/cm² |
| vickers-hardness | (hv)570kg/mm² | porosity rate | 7.4% |
| water absortion | 1.2% | hot extensiblity | 4% |
Recommend Surface load Molybdenum disilicide heater MoSi2 heating elements
Furnace Temp (C ) |
1400 |
1500 |
1600 |
1650 |
1700 |
Surface load of hot zone(w/cm2) |
<18 |
<15 |
<12 |
<10 |
<8 |
The influence of operation temperature on the heater surface in a different atmosphere
Atmosphere |
The Maximum Using Temperature of Element |
||
1700 Grade |
1800 Grade |
1900 Grade |
|
NO2,CO2,O2,Air |
1700°C |
1800°C |
1850°C |
He,Ar,Ne |
1650°C |
1750°C |
1800°C |
SO2 |
1600°C |
1700°C |
1800°C |
CO,H2 |
1500°C |
1600°C |
1700°C |
WetH2 |
1400°C |
1500°C |
1650°C |
DryH2 |
1350°C |
1450°C |
1600°C |
why choose our products?
1. high productivity
2. energy saving
3. wide application
4. long service life
