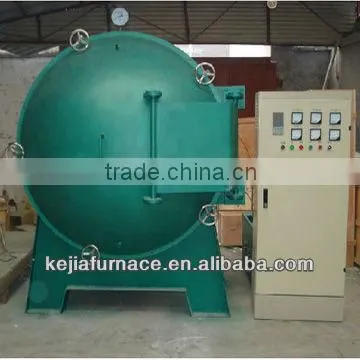

Help CenterHigh Temperature Argon Vacuum Melting Furnace
Related Products
-
New Type Laboratory Vacuum Sintering FurnaceUS$ 1,200 - 8,900MOQ: 1 Set -
Vacuum Heat Treatment Furnace for Stainless PartsUS$ 1,400 - 32,000MOQ: 1 Set
-
Vacuum Oxygen Decarburization FurnaceUS$ 1,300 - 34,000MOQ: 1 Short Ton
-
Vacuum Brazing Furnace With 30 Segments Programmable ControlUS$ 1,800 - 56,000MOQ: 1 Set
-
High Temperature Vacuum Sintering FurnaceUS$ 1,800 - 24,000MOQ: 1 Set
Specifications
1, 1200C/1600C Vacuum Melting furnace,2, heated by Resistance wire(1200C); MoSi2(1600C),
3.Max. vacuum degree: 0.001Pa
Model: KJ-1200VF/KJ-1600VF Vacuum furnace
Size(mm, WxHxD): 150x150x150 (6"x6"x6") / 200x200x200 (8"x8"x8").
Features
1. In KJ-1200VF, Operation Temperature: 1100°C,(1200°C for short time);
In KJ-1600VF, Operation Temperature: 1500°C,(1600°C for short time);
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 segments programmable.
6. Widely used in the heat treatment of metallic material in coarse vacuum, in reducibility or protective atmosphere.
7. Can also be used for special heat treatment of materials, such as carbon products in the development process of carbonation.
Descriptions
Model |
KJ-1200VF |
KJ-1200VF |
KJ-1600VF |
KJ-1600VF |
Working Temp. |
1100°C |
1100°C |
1500°C |
1500°C |
Max. Temp. |
1200°C |
1200°C |
1600°C |
1600°C |
Temp. Accuracy |
+/-1°C |
+/-1°C |
+/-1°C |
+/-1°C |
Chamber (mm,WxHxD) |
150x150x150 |
200x200x200 |
150x150x150 |
200x200x200 |
Heating Element |
Resistance wire |
Resistance wire |
MoSi2 Rods |
MoSi2 Rods |
Final vacuum |
15pa |
15pa |
15pa |
15pa |
Pressure rising rate |
≤10-20pa/h |
≤10-20pa/h |
≤10-20pa/h |
≤10-20pa/h |
Max. Power |
3kw |
7kw |
4kw |
8kw |
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: T/T, West union, etc.
Shipping and Delivery: by air/sea, in 15 days after receiving the payment
Warranty: 1 year limited warranty on all electronic parts.
