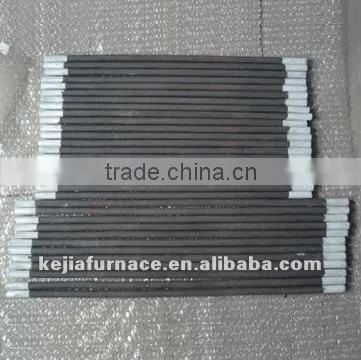

Help Center(Favorable Price)universal High Temperature SiC Heaters up to 1400C
Related Products
-
Silicion Carbide Heater for Oven Furnace(1400C)US$ 1 - 200MOQ: 1 Piece -
SiC Heat Treatment ElementUS$ 1 - 80MOQ: 30 Pieces
-
Silicion Carbide Rod Heater Used for Muffle Furnace(1400C)US$ 10 - 60MOQ: 1 Piece
-
Oven SiC Heating ElementsUS$ 1 - 75MOQ: 1 Piece
-
High Temperature and Super Oven SiC Heating Elements up to 1600CUS$ 1 - 90.7MOQ: 1 Piece
Specifications
High temperature SiC heaters1.Material:Good quality green SiC poeder
2.Heating temperature:600-1600C
High temperature SiC heaters upto 1400C
W Shape SiC Heating Elements with the terminals at one end, are designed for three-phase power source applications, such as the float glass process.
When you place an order of the W Shape SiC Heating Elements, please give following information:
OD:Outer Diameter;
HZ:Length Of Hot Zone;
CZ:Length Of Cold Zone;
OL:Total Length, A: Shank Spacing
Order Sample of the W Shape SiC Heating Element
W Shape: OD=20mm, HZ=250mm, CZ=350mm, OL=625mm, A=52mm,
Resistance: 0.9Ω Specify As: 20/250/625/52/0.9
SiC heating elements is a kind of non-metal high temperature electric heating element, made of selected super quality green silicon carbide as main materials.
Feature of SiC heating elements: anti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintance.
SiC heating elements can be used in the furnace temperature 600C-1400C, directly in the air use as well, and it need not any protective atmosphere. Because of SiC heating elements well performance, they are widely used in high temperature furnace, ceramics, glass, analysis and test, semiconductor, science research etc.
Types: rod U-shape W-shape single spiral double spiral Slot
In case of any inquiry or order, please kindly state diameter, length of hot end as well as the total length and electric resistance, thank you.
Mininum Order Quantiaty: 1 pcs
Means of Transport: ship/air
Production Capacity: 10000/year
Packing:wood packing
Delivery Date: according to order quantity
Tel:+86-371-67826992
Fax:+86-371-67197091
ID:cn1000501797
If have any needs,please be free to contact us.
