Specifications
1.Silicon carbide SiC electric heating elements can up to 1600 C2.SiC heater is for furnace and kiln
3.Competitive price
silicon carbide
1. Material: Good quality green SiC poeder
2. Heating temperature:600-1600C
3. Professional manufacturer of the sic heater
W Shape SiC Heating Elements with the terminals at one end, are designed for three-phase power source applications, such as the float glass process.
When you place an order of the W Shape SiC Heating Elements, please give following information:
OD:Outer Diameter;
HZ:Length Of Hot Zone;
CZ:Length Of Cold Zone;
OL:Total Length, A: Shank Spacing
Order Sample of the W Shape SiC Heating Element
W Shape: OD=20mm, HZ=250mm, CZ=350mm, OL=625mm, A=52mm,
Resistance: 0.9Ω Specify As: 20/250/625/52/0.9Ω
SiC heating elements is a kind of non-metal high temperature electric heating element, made of selected super quality green silicon carbide as main materials.
Feature of SiC heating elements: anti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintance.
SiC heating elements can be used in the furnace temperature 600C-1400C, directly in the air use as well, and it need not any protective atmosphere. Because of SiC heating elements well performance, they are widely used in high temperature furnace, ceramics, glass, analysis and test, semiconductor, science research etc.

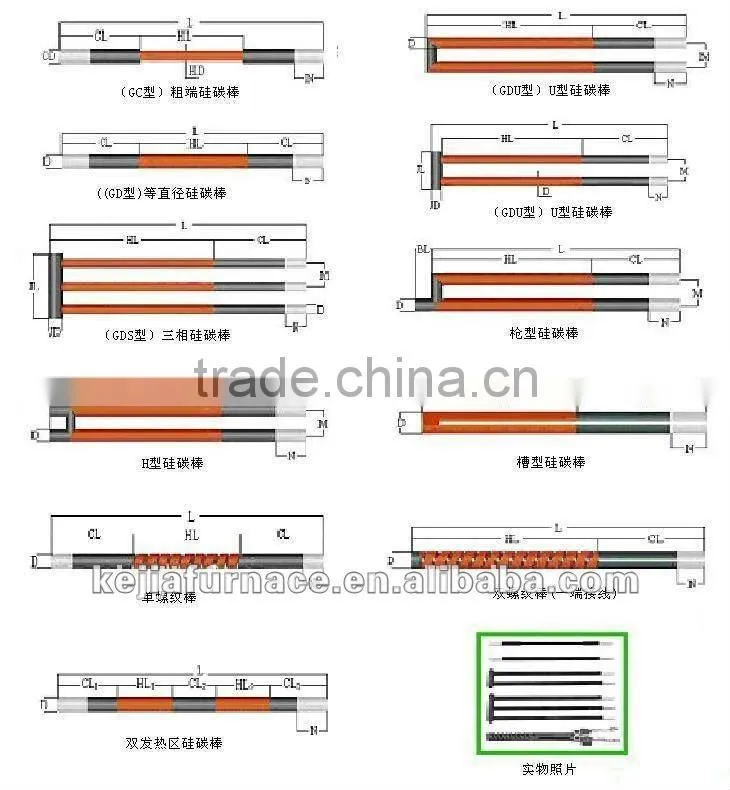

Types: rod U-shape W-shape single spiral double spiral Slot
In case of any inquiry or order, please kindly state diameter, length of hot end as well as the total length and electric resistance, thank you.
Mininum Order Quantiaty: 1 pcs
Means of Transport: ship/air
Production Capacity: 10000/year
Packing: wood package
Delivery Date: according to order quantity
Welcome to pay close attention to our other furnace: Tube furnaces, (Vacuum) Crucible furnaces, Vacuum Box furnace, Double(Multi) zones Tube furnaces, Multi-position Rotary Tube furnace, Bottom Loading furnace, MoSi2 heating elements, SiC heating elements, etc.
