Specifications
Box furnace chamberMaximum energy efficiency is achieved
Lower temperature outside

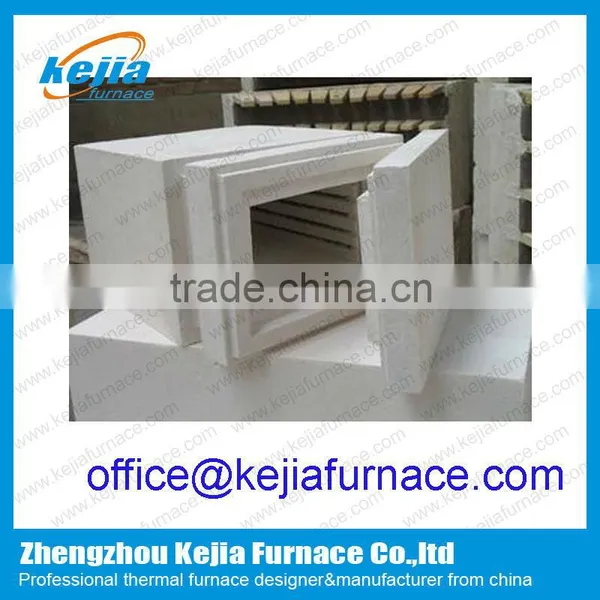

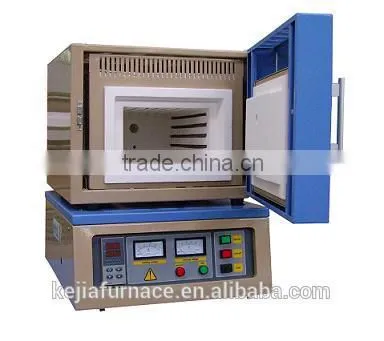

Introduction of muffle furnace chamber
The muffle furnace uses high temperature electric resistance wire as
heating element, adopts double shell structure and yu electric 50 program temperature
control system. The inside chamber of the laboratory adopts 1600 polycrystal alumina fiber materials.
Outstanding features of muffle furnace chamber
1. Natural air insulation type; light and easy to handle
2. Heating faster
3. Both side radiation heating in the chamber and long lifetime furnace
uniform temperature distribution
4. PID automatic control and LED digital display
5. Durable, beautiful and long life time furnace
6. Stable heating temperature
7. Non changeful chamber and Non losing vanish appearance
Usage of muffle furnace chamber
1. Normalizing, quenching and annealing of Alloy steel products, various kinds of metal parts
2. High sintering of diamond cutting blade
3. Small scale production
4. Quantitative analysis
5. Ashing test
It si widely used in universities and colleges, and industrial and mining enterprises
Technical specifications of muffle furnace chamber
| Inside chamber size | 200X200X300mm |
| Working temperature | 1100C |
| Max temperature | 1200C |
| Temperature control | Digital 50segment programmable program controlling |
| Heating control | 0~15C/min (advice: <=10C) |
| Constant temperature precision | +-1C |
| Heating element | Electric resistance wire |
| Working voltage | Voltage:208~240V; Single Phase: 50Hz |
| Rated power | 4KW |
| Boundary dimension | 630X500X710mm |
| Net mass | 90Kg |
1. Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full
experience doing business in domestic and oversea.
2. We are not professional for operation and installation of your machine?
While it is not a stumbling block,our machine is easy to operate,
no need to professional training,and the instruction manual and
vedio sent to you are enough.What’s more,we have professional
engineers and they can solve all questions.
3. How about packaging ?………….if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,
plywood carton or as your requirement.Damage haven’t happened before,
if happen,we will arrange replacement.
