Heating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing Dies

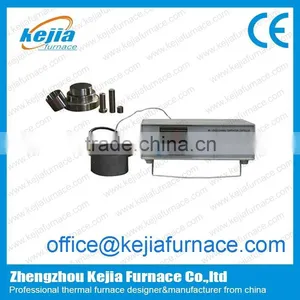

Heating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing Dies thumbnail-1
Heating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing Dies photo-1
US$ 100 - 2,100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Kejia
Model Number:
Dry Pressing die
Contact Supplier Request Quote Chat Now
Zhengzhou Kejia Furnace Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Kejia
Model Number Dry Pressing die
Shaping Mode Die Casting
Product Material Metal
Product Household Product

One set of 1/8" Diameter ( I.D. ) Dry Pressing Die - EQ-Die-03D



Heating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing Dies



Introduction of pressing die





EQ-Die-03D is a Complete pressing die with 1/8" I.D. is ready for you to make 3 mm diameter sample pellet. The die is designed for our 24T Mini Pressing machine,and also is good for any desktop pressing up to 10 metric Tone.



Specification of pressing die:



Mold

EQ-Die-03D

Height

2.3" (58.5 mm)

Diameter

1 3/8" (37 mm)

Weight

1.1 Lbs

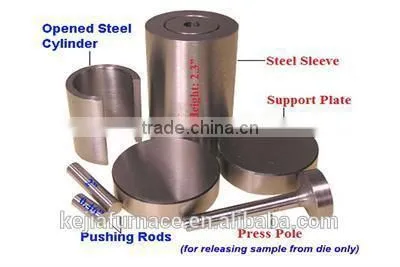

Whole set

pressing die includes
  • One 1/8"  I.D. core die  made of  hardened steel and highly polished  with hardness Rc 60 - 62
  • One steel sleeve for core die protection
  • Two pushing rods highly polished and perfectly fitted into die.
  • Two steel support plates
  • One pressing pole for releasing sample from die only
  • One opened steel cylinder for pushing out sample.
  • Max. Pressure 1 metric Ton



 Heating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing Dies

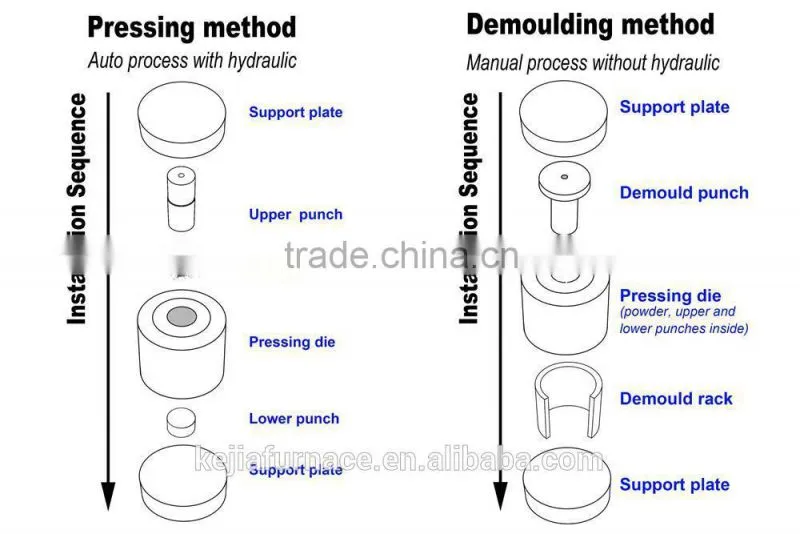

Steps to make sample pellet
  • Mixing and grinding chemical powder by agate mortar or Ball Mill
  • Calcine mixed the powder in a high temp furnace under suitable temperature
  • Crushing and Grinding calcined powder again by mortar or ball mill
  • Put calcined powder in to the die
  • Pressing sample by a pressing machine under suitable pressure
  • Take out pellet sample from die
  • Sintering the pellet under suitable temperature
  • Then, a new material sample is formed!ing Oven



Heating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing DiesHeating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing DiesHeating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing Dies

Heating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing DiesHeating Jacket (250C Max.) and Temperature Controller Series for Dry Pressing Dies

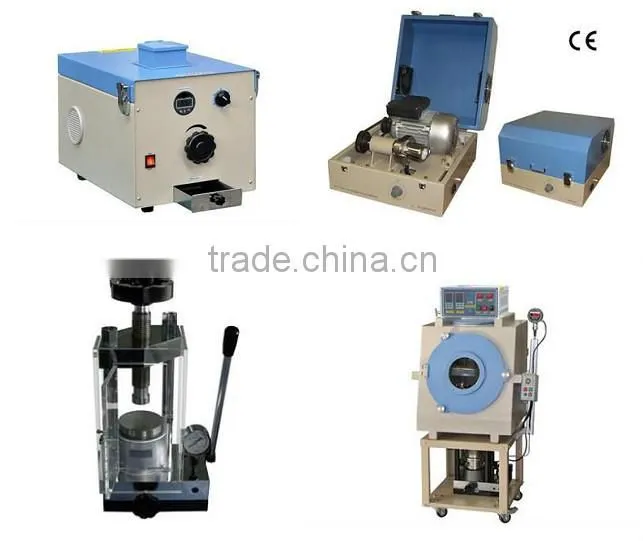

Products:

1) Muffle furnaces / Box furnaces / Chamber furnaces / Lab furnaces /Tube furnace /Dental furnace

2) Vacuum tube furnaces / Multi zones tube furnaces

3) Atmosphere furnaces / Vacuum Furnaces /Electric Furnace/Melting Furnace

4) Silicon Carbide Heating Elements

5) Molybdenum Disilicide Heating Elements

6) CVD System Other Furnaces related products



Application:

New energy materials, metal materials, magnetic materials, semiconductor materials,

ceramic materials, electrochemical, film material, CVD, MOCVD, PLCVD, LPCVD, PECVD,

UPECVD, JPECVD, MPECVD graphene siliconnanotubes, nanowires, sapphire (LED ),

optical materials, dental and other fields of research.





Our products have been exported to Middle East, Europe and the United States,etc.

If there is any interest or demand,please feel free to get in touch.
