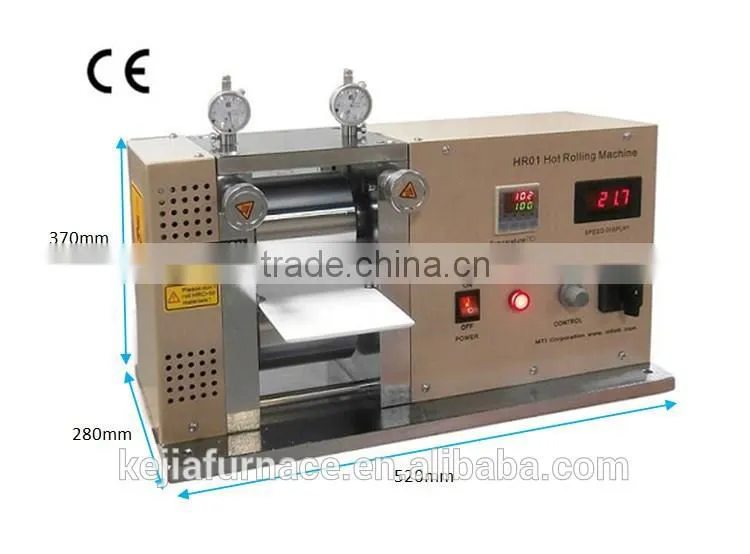

4" Electric Hot Rolling Press / Calender up to 100C - MSK-HRP-01

4" Electric Hot Rolling Press / Calender up to 100C - MSK-HRP-01 thumbnail-1
4" Electric Hot Rolling Press / Calender up to 100C - MSK-HRP-01 photo-1
US$ 500 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Kejia
Model Number:
Lab rolling press
Contact Supplier Request Quote Chat Now
Zhengzhou Kejia Furnace Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Kejia
Model Number Lab rolling press
After-sales Service Provided No overseas service provided

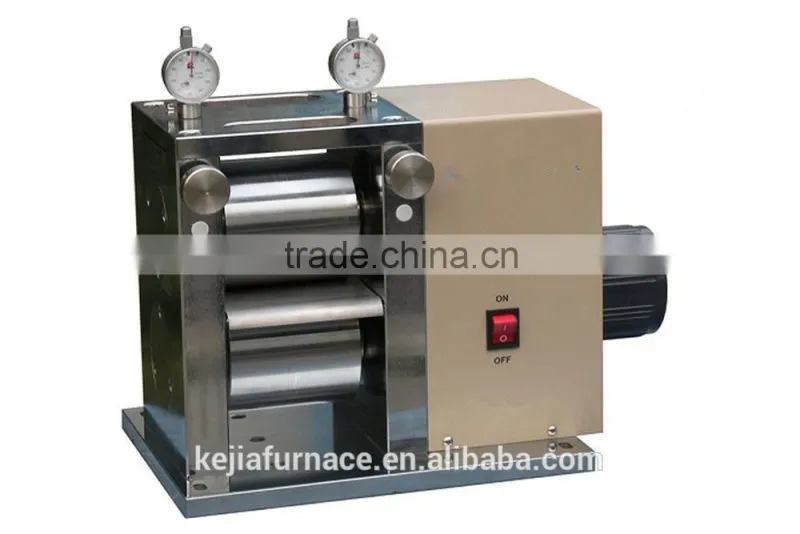

Lab Rolling Press



Introduction of lab rolling press

 lab rolling press

MSK-HPR-MR100A (upgrade from EQ-MR100A) is a CE Certified compact precision electric rolling press. It has dual rollers of 100 mm dia. x 100mm width and dual grade micrometer. It is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

 lab rolling press

Specification of lab rolling press:



Working Voltage
  • 110V / 220V AC single phase selectable
  • 220V AC Power plug is not included.

Max. Power Consumption

500W Total

Structure
  • Heavy duty steel frame, gears and handle
  • 100 mm Dia. x 100mm width Rollers made from hardened tool steel (RC > 62) with Cr electroplated coating
  • Dual micrometer for accurate thickness adjustment in the range 0 - 1.8 mm Maximum

Roller
  • Dimensions: 100mm(Dia.) x 100mm(W)
  • Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating
  • Power: Driven by 0.5 HP high touqe gear AC Motor
  • Constant Rolling Speed: 65 mm / second

Product Dimensions

381 mm(L) x 241.3mm(W) x 355.6mm(H) (15" x 9.5" x 14")

Warranty

One year limited manufacture warranty with lifetime support

Application Notes
  • The MSK-MR-100A roller is specially designed for battery R&D in terms of its advantages as affordable,
  • compact and precise. Please strictly follow the instructions during operation
  • Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
  • Apply antirough if machine were to be unused for a long period of time
  • Never roll materials with hardness > 50HRC
  • The minimum thickness of the rolled sheet should depend on the physical property of the materials.
  • Here are some results from our test

Electrode

Size

Original thickness

Finished thickness

LiFePO4 double sides

50mm Width x 260mm Length

0.205mm

0.09mm

LiMn2O4 double sides

50mm Width x 260mm Length

0.205mm

0.09mm

Copper foil + graphite (single side)

75mm Width x 240mm Length

0.09mm

0.04mm



Shipping Dimension

40" x 23"x 26"

Shipping Weight

160 lb

 More photos of lab rolling press



4" Electric Hot Rolling Press / Calender up to 100C - MSK-HRP-014" Electric Hot Rolling Press / Calender up to 100C - MSK-HRP-01
