Help CenterMoSi2 Heating Rod U Type for Heat Treatment Furnace
Related Products
-
W Shape MoSi2 Heating Elements for Kiln&furnaceUS$ 1.2 - 120MOQ: 1 Piece -
1700/1800C High Temperature MoSi2 Heating Elements for FurnaceUS$ 1.9 - 120MOQ: 1 Piece
-
1700M/1800M MoSi2 Heating Elements Using for Furnace HeatingUS$ 1.2 - 110MOQ: 1 Set
-
U/W Type MoSi2 Heating ElementsUS$ 1.9 - 1,200MOQ: 1 Piece
-
MoSi2 Heating Elements for Heating Equipment(U Type)US$ 1.9 - 1,400MOQ: 1 Piece
Specifications

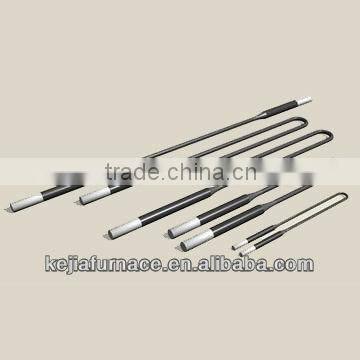

1. U shape MoSi2 heating rod for heat treatment furnace2. Diameter, 3/6 - 12/24mm.
Model: U shape Molybdenum Disilicide Heating element
Features:
1. used in the high temperature under oxidizing atmosphere,
2. It will form the SiO2 film which can keep the element from being melted.
3. It has unique effect for resisting oxidization in the high temperature.
4. "U", "W" and "U-right angle” shapes heating elements are available.
Descriptions
Material Grade: M1700/M1800
d: Hot Zone Diameter
c: Cold Zone Diameter
Le: Hot Zone Length
Lu: Cold Zone Length
a: Shank Spacing
Specification
1700°C Grade |
1800°C Grade |
|||||||||
d/c (mm) |
3/6 |
4/9 |
6/12 |
9/18 |
12/24 |
3/6 |
4/9 |
6/12 |
9/18 |
12/24 |
Le Max,mm |
350 |
450 |
1400 |
1400 |
1700 |
350 |
450 |
1400 |
1400 |
1700 |
Lu Max,mm |
300 |
450 |
1000 |
1000 |
1000 |
300 |
450 |
1000 |
1000 |
1000 |
a (mm) |
25 |
25 |
40/50 |
60 |
80 |
25 |
25 |
40/50 |
60 |
80 |
f (mm) |
25 |
25 |
45 |
75 |
100 |
25 |
25 |
45 |
75 |
100 |
g (mm) |
15 |
15 |
25 |
30 |
40 |
15 |
15 |
25 |
30 |
40 |
Nonstandard shape & size could be made according to your requirement. | ||||||||||
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: T/T, West union, etc.
Shipping and Delivery: by air/sea, in 10 days after receiving the payment
Contact person: Sally Gu
ID:cn1000501797
Tel.:86-371-67826992
Fax.:86-371-67197091
Mobile:18736046549
