Specifications
MoSi2 heating rod1.Work tem:1300-1800C
2.Type:I, L,U,h,W,UL
3.Dia:3/6,4/9,6/12,9/18,12/24mm
4.Long life,high perfermance
kiln(Favorable price) -W shape MoSi2 rod used for furnace and kiln(Favorable price) W shape MoSi2 rod
W shape MoSi heater rod used for furnace and kiln(Favorable price)
Material Grade: M1700/M1800

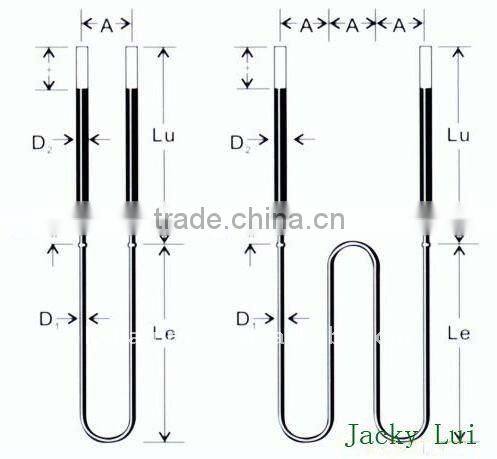

d: Hot Zone Diameter
c: Cold Zone Diameter
Le: Hot Zone Length
Lu: Cold Zone Length
a: Shank Spacing
If you have the special requirement for the resistance, please tell us!
Order Sample
U Shape, Material Grade: M1700,
d-4mm, c-9mm, Le-450mm, Lu-450mm, a-25mm
Specify As: KJ-MoSi2-U, 4/9×450×450×25
Descriptions
W shape MoSi2 rod
| 1700°C Grade | 1800°C Grade | |||||||||
| d/c (mm) | 3/6 | 4/9 | 6/12 | 9/18 | 12/24 | 3/6 | 4/9 | 6/12 | 9/18 | 12/24 |
| Le Max,mm | 350 | 450 | 1400 | 1400 | 1700 | 350 | 450 | 1400 | 1400 | 1700 |
| Lu Max,mm | 300 | 450 | 1000 | 1000 | 1000 | 300 | 450 | 1000 | 1000 | 1000 |
| a (mm) | 25 | 25 | 40/50 | 60 | 80 | 25 | 25 | 40/50 | 60 | 80 |
| f (mm) | 25 | 25 | 45 | 75 | 100 | 25 | 25 | 45 | 75 | 100 |
| g (mm) | 15 | 15 | 25 | 30 | 40 | 15 | 15 | 25 | 30 | 40 |
| Nonstandard size could be made according to your requirement. | ||||||||||
Welcome to pay close attation to our other furnace: Tube furnaces, (Vacuum) Crucible furnaces, Vacuum Box furnace, Double(Multi) zones Tube furnaces, Multi-position Rotary Tube furnace, Bottom Loading furnace, MoSi2 heating elements, SiC heating elements, etc.
Tel:+86-371-67826992
Fax:+86-371-67197091
ID:cn1000501797
If have any needs,please be free to contact us.
