Specifications
Vacuum chamber furnace1.quartz tube chamber
2.Factory price,fast delivery
3.Water-cooled stainless steel flange
4.CE
small smelting furnace
Zhengzhou Kejia Furnace Co.,Ltd
--Professional Muffle Furnace,Tube Furnace and Heating Elements Manufacturer--

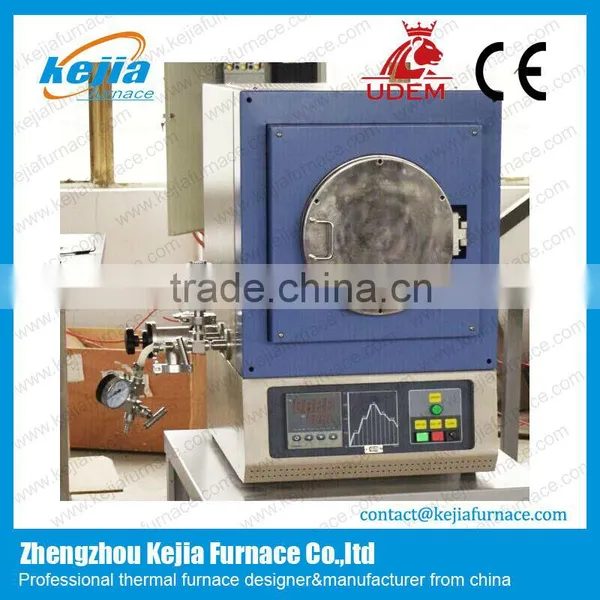

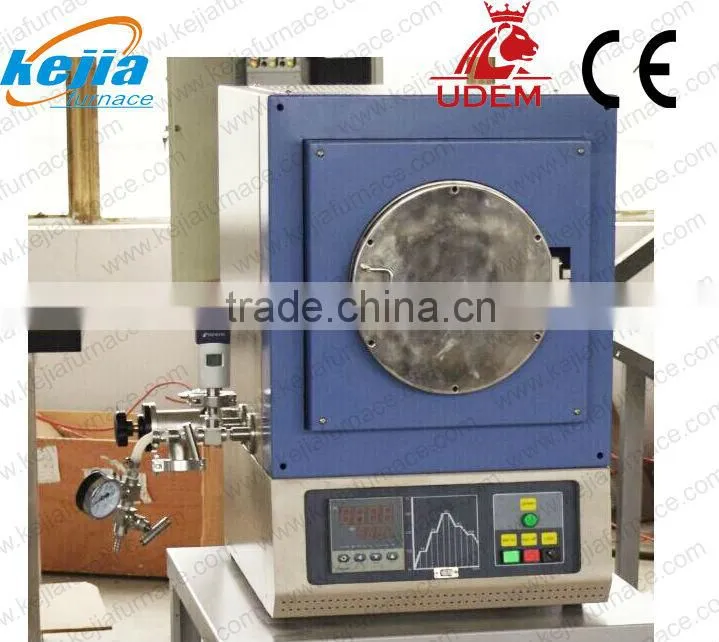

CE Certified 1100°C Programmable 7.6 Liter Vacuum Chamber Furnace With digital vacuum gauge
KJ-T1200 is a vacuum furnace with a quartz tube chamber placed horizontally. Water-cooled stainless steel vacuum flanges with valves are installed to achieve a vacuum of 10-2 to10-5 torr through a mechanical or molecular vacuum pump. It is designed for calcining or annealing
semiconductor wafers (up to 6") under vacuum or various other gas atmospheres with a temperature
up to 1100°C. It also can also be used as vacuum brazing furnace for fusing small parts.
smelting furnace
Vacuum Furnace |
Power |
3000 W max. |
Voltage |
Single phase 208 - 240 VAC / 50/60Hz, (20 A breaker required) |
|
Working Temperature |
<= 1000 °C continuously Max. 1100 °C, < 30 minutes Temperature Uniformity: +/- 2°C |
|
Heating Rate |
Max. 20°C/ min Recommended. 10°C/ min |
|
Heating Elements |
High quality Ni-Cr-Al resistance wire as heating elements and can be heated up to 1200°C. |
|
Quartz Tube Size |
Tube size: 8" x 13.4" L. |
|
Vacuum Flange |

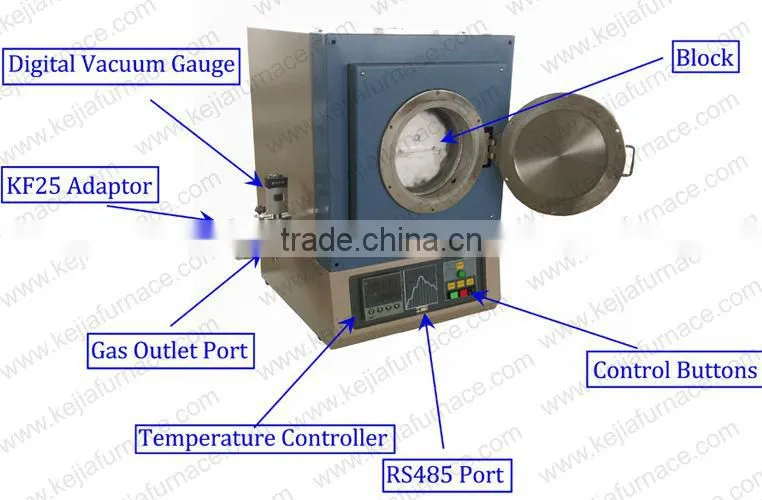

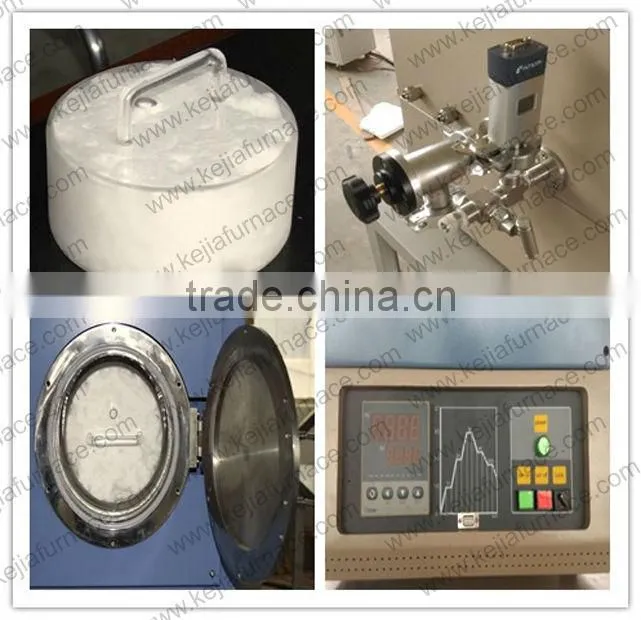

Stainless steel vacuum flange with dual high temperature silicone O-rings at front door. One needle valve is built into the flange for use as gas inlet. One KF25D port on left side of furnace for connection to vacuum pump |
|
Temperature Controller |
1. PID automatic control and auto-tune function. 2. 30 programmable segments for precise control of heating rate, cooling rate and dwell time. 3. Over temperature protection and alarm allows for operation without attendant(s). 4. +/- 1 ºC temperature accuracy. 5. RS485 Communication Port. |
Plastic paper inside, Polyfoam filled, Wooden box outside,best ways to protect the vacuum chamber furnace.
furnac
small smelting furnace
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and
professional engineers and staff.
6. Professional factory : We are manufacturer, specializing in laboratory furnaces.
