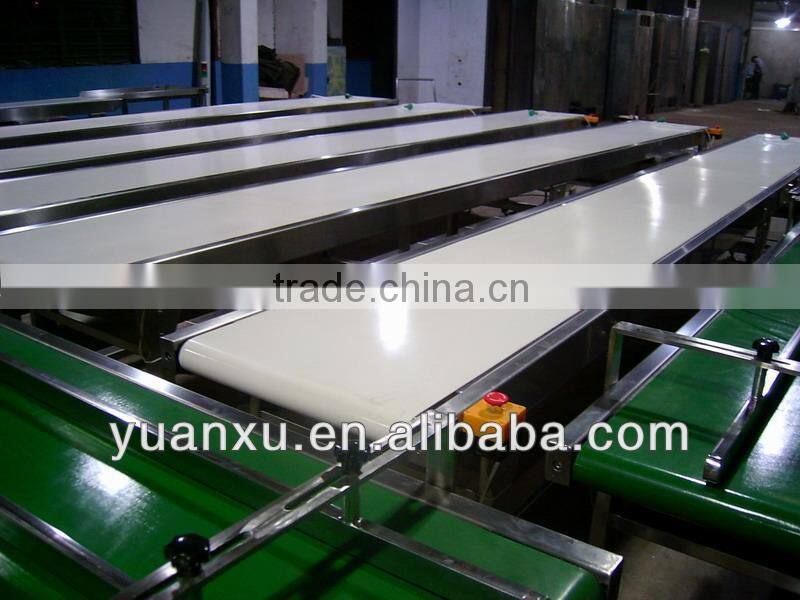

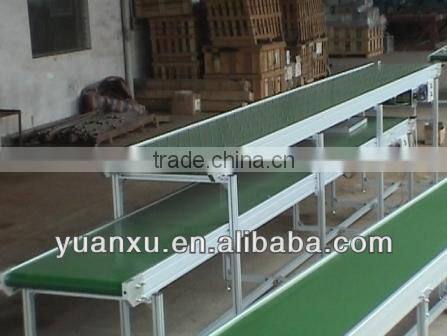

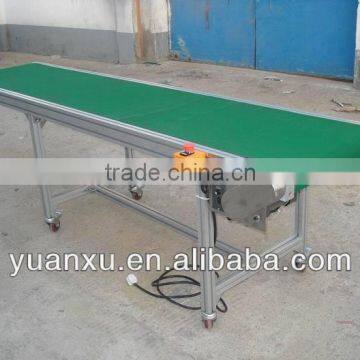

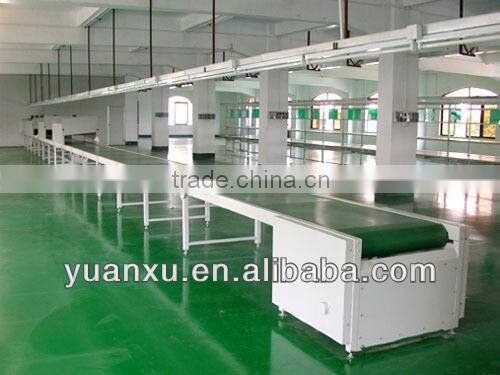

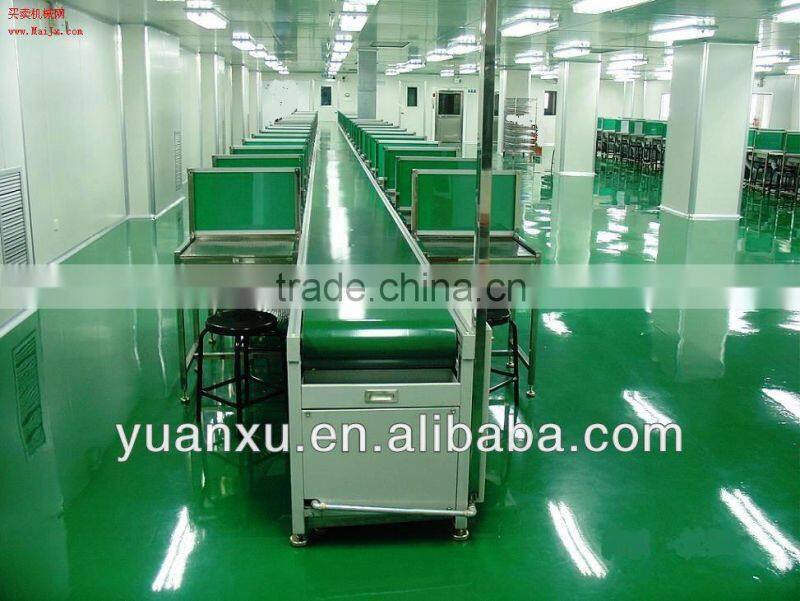

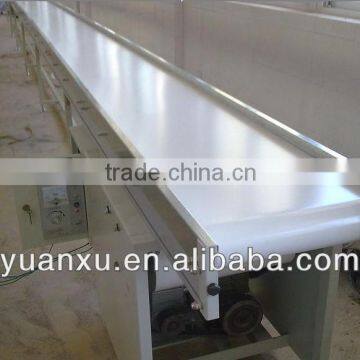

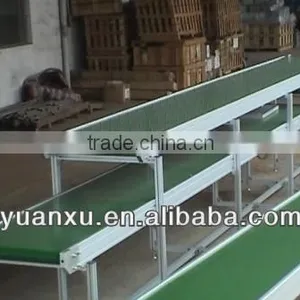

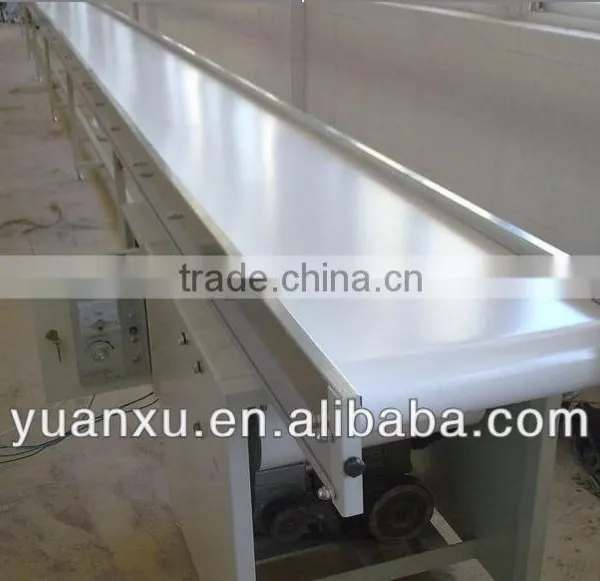

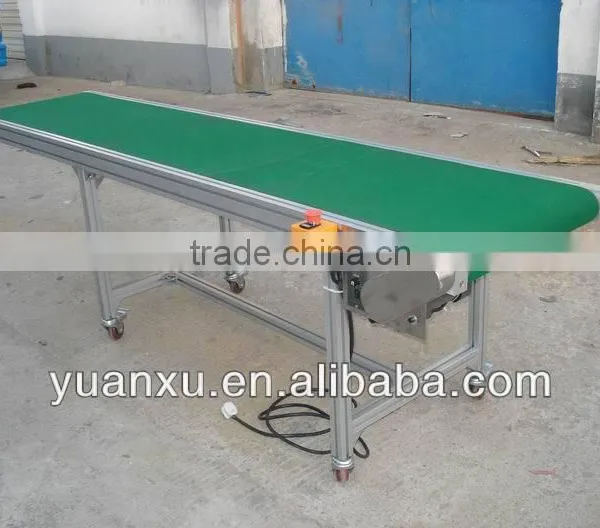

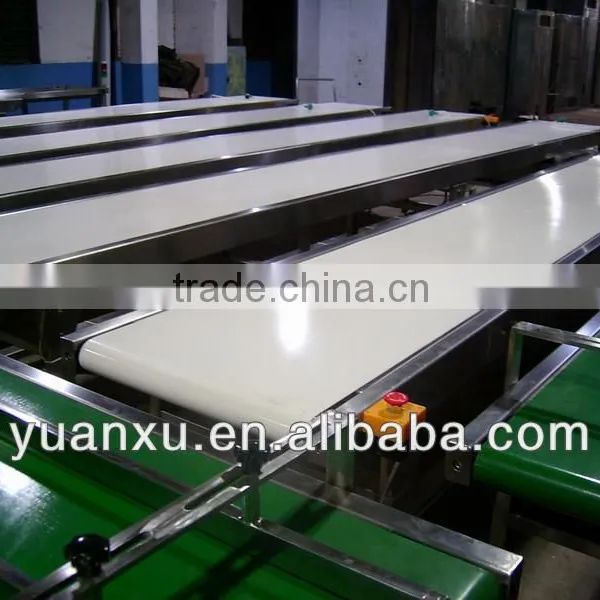

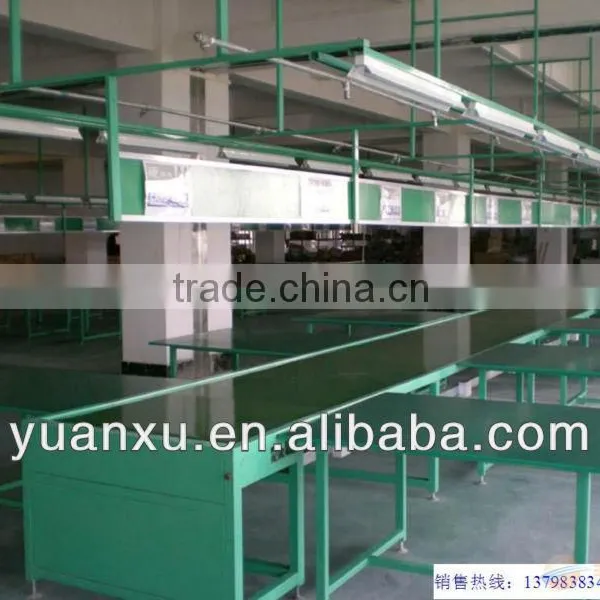

YK-PD001 Automatic Green Belt Conveyor
US$ 500 - 2,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical Conveyor
Material:
Nylon
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YK-PD001 Powered Carton Green Belt ConveyorUS$ 500 - 2,000MOQ: 1 Set -
YK-GT02 Pallet Powered Roller ConveyorUS$ 500 - 2,000MOQ: 1 Set
-
YK-GT01 Stainless Steel no Power Roller ConveyorUS$ 200 - 500MOQ: 1 Meter
-
YK-GT02 Pallet Turntable Power Roller ConveyorUS$ 800 - 2,000MOQ: 1 Set
-
YK-GT02 Carton Power Roller ConveyorUS$ 500 - 2,000MOQ: 1 Set
Condition
New
Type
Vertical Conveyor
Material
Nylon
Material Feature
Oil Resistant
Structure
Belt Conveyor
Load Capacity
200kg
Place of Origin
Shanghai, China
Brand Name
Yuanxu
Model Number
YK-PD001
Voltage
220/380V
Power(W)
0.75KWA
Dimension(L*W*H)
0*0*0mm
Certification
CE
After-sales Service Provided
Overseas service center available
TYPE: TypeYK-PD001
NAME:34 type standard belt conveyor
constant speed:1.9~45m/min
variable speed:0.13~50m/min
Width: 100mm~600mm
Load capacity: max about 30kg
SPE.
| belt W | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | |||||||||
| conveyor W | 140 | 190 | 240 | 290 | 340 | 390 | 440 | 540 | 640 | |||||||||
| conveyor L | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 | ||||||
BELT SPEED SHEET
| reduction ratio | speed mark | constant speed(m/min) 50/60Hz | speed mark | variable speed(m/min) 50/60Hz |
| 1/180 | T1 | 1.9/2.3 | H1 | 0.13~2.5 |
| 1/150 | T2 | 2.3/2.7 | H2 | 0.15~3.0 |
| 1/120 | T3 | 2.8/3.4 | H3 | 0.19~3.8 |
| 1/100 | T4 | 3.4/4.1 | H4 | 0.23~4.5 |
| 1/90 | T5 | 3.8/4.5 | H5 | 0.26~5.1 |
| 1/75 | T6 | 4.6/5.5 | H6 | 0.31~6.1 |
| 1/60 | T7 | 5.7/6.8 | H7 | 0.38~7.6 |
| 1/50 | T8 | 6.8/8.2 | H8 | 0.46~9.1 |
| 1/36 | T9 | 9.5/11.4 | H9 | 0.63~12.6 |
| 1/30 | T10 | 11.4/13.7 | H10 | 0.76~15.2 |
| 1/25 | T11 | 13.7/16.4 | H11 | 0.91~18.2 |
| 1/18 | T12 | 19.0/22.8 | H12 | 1.27~25.3 |
| 1/15 | T13 | 22.8/27.3 | H13 | 1.52~30.4 |
| 1/12.5 | T14 | 27.3/32.8 | H14 | 1.82~36.4 |
| 1/9 | T15 | 37.9/45.5 | H15 | 2.53~50.6 |
