Sheets Iron Machine

Name: Sheets Iron Machine
Brand: FUTE
SKU: 116477335
Availability: InStock

US$ 1,080 - 10,800 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

FUTE

Model Number:

YZI / YDI Sheets iron machine

Shanghai Fute Washing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name FUTE

Model Number YZI / YDI Sheets iron machine

Specifications

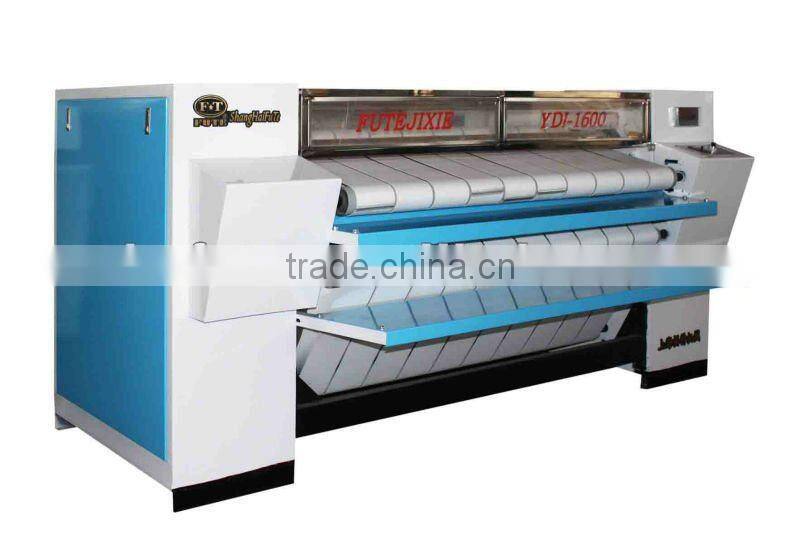

Sheets iron machine
1,steam&Electric heating
2,Professional factory

Discription of Sheets iron machine

This ironer has the advantages of high speed,high efficiency,low cost,safe, high reliability and so on

1. Sheets iron machine for bedsheets, quilts, tablecloth, towel, curtain, bath towel etc.

2. Large diameter(Φ800mm) roller drum,stainless steel, surface is smooth.

3. Frame and auxiliary,high-quality steel carbon structures, strong and durable.

4. Variable frequency, variable speed, according to fabric, moisture, steam supply, etc.

5.Pressure roll with guiding ribbons,superior ironing quality,nomex ironing belts.

6.The big Drum adopt excelent stainless steel,comtact parts through galvanized and spray paint processing.

7.frequency conversion speed-adjusting save 60% power ,adopt chain-wheel driving,reducing break-down ,stable run,low noice.

Technology specification

Steam Heating

Model	YZI-2500	YZI-2800	YZI-3000
Roll Diameter	800	800	800
Max Iron Smooth Width(mm)	2500	2800	3000
Ironing Speed(m/min)	0-6	0-6	0-6
Max Steam Presure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6
Motor Power(kw)	1.5	1.5	1.5
Max Iron Smooth Temperature(c)	158	158	158
Rated Voltage	220	220	220
Frequency power	1.5	1.5	1.5
Dimension(L.W.H) (mm)	1360x3740x1240	1360x4040x1240	1360x4240x1240
Total Weight(kg)	1120	1180	125

Electric heating

Model	YDI-2500	YDI-2800	YDI-3000
Roll Diameter	800	800	800
Max Iron Smooth Width(mm)	2500	2800	3000
Ironing Speed(m/min)	0-5	0-5	0-5
Heating power (Mpa)	18	36	43
Motor Power(kw)	1.5	1.5	1.5
Max Iron Smooth Temperature(c)	158	158	158
Rated Voltage	380	380	380
Frequency power	1.5	1.5	1.5
Dimension(L.W.H) (mm)	1360x2640x1240	1360x3640x1240	1360x3940x1240
Total Weight(kg)	900	1128	1194
