Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649

Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649

Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649 thumbnail-1

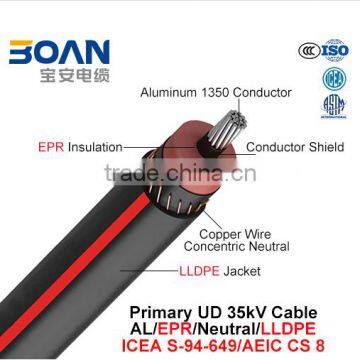

Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649 photo-1
US$ 1 - 5 MOQ: 500 Inches
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boan or OEM
Model Number:
Primary Ud
Contact Supplier Request Quote Chat Now
Jiangsu Boan Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Boan or OEM
Model Number Primary Ud
Insulation Material Other, Epr
Type Medium Voltage
Application Underground
Conductor Material Aluminum
Jacket PVC
Product Description

  Primary UD Cable, 35 KV, Al/EPR/Neutral/LLDPE (AEIC CS 8/ICEA S-94-649) Applications: Predominantly used for primary underground distribution; Suitable for use in wet or dry locations, direct burial, underground duct, and where exposed to sunlight. To be used at 15, 000 volts or less and at conductor temperatures not to exceed 90° C for normal operation. Specifications: Primary UD Cable meets or exceeds the following ASTM specifications: B-3 Soft Annealed Copper Wire. B-8 Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard or Soft. B-230 Aluminum, 1350-H19 Wire for Electrical Purposes. B-231 Aluminum 1350 Conductors, Concentric-Lay-Stranded. B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes. Primary UD Cable is manufactured to the latest edition of the following specifications, and in case of specification conflicts, in the order listed: ANSI/ICEA S-94-649 AEIC CS-8 RUS U-1 Construction: The phase conductor is concentrically stranded, compressed soft copper or 1350-H16/26 aluminum alloy. The cable is composed of the conductor with moisture block in the strands, covered by a semi-conducting cross-linked polyethylene strand shield, an ethylene propylene rubber primary insulation, and a semi-conducting cross-linked polyethylene insulation shield. Conductors are available with either 100% or 133% insulation levels. A concentric neutral of bare copper wires and an insulating polyethylene jacket is applied over the insulation shield. The cable is identified by surface print on the jacket and with the lightning bolt symbol for supply cables indented in the jacket. A semi-conducting polyethylene jacket is available upon request. Maximum Conductor Normal Operation: - 90O C; Emergency Overload: - 130O C Temperatures: Short Circuit - 250 C Application: Medium voltage power cable for single phase underground distribution (UD), including getaway systems in low profile substations. Application:
Features: 1. Simultaneous extrusion of strand shield, insulation, and insulation shield (triple extrusion, dry curing process) forms a virtually perfect cable core, eliminating unequal electrical stress. 2. Ethylene Propylene Rubber (EPR) insulation offers: Excellent heat, moisture and corona resistance; Electrical stability under stress; Low dielectric loss, chemical resistance.

1/3 Neutral Full Neutral
Size AWG or kcmil  Number of Strands Nominal OD Over Insulation in  Number of Wires   Size AWG  Jacket Thickness mil Approximate Outside Diameter in Approximate Net Weight lb/kft Size AWG or kcmil  Number of Strands Nominal OD Over Insulation in  Number of Wires   Size AWG  Jacket Thickness mil Approximate Outside Diameter in Approximate Net Weight lb/kft
Aluminum 100% Insulation Level (345 mil)
1/0 1 1.06 6 14 50 1.38 858 1/0 1 1.06 16 14 50 1.38 979
1/0 19 1.10 6 14 50 1.42 895 1/0 19 1.10 16 14 50 1.42 1015
2/0 19 1.14 7 14 50 1.47 971 2/0 19 1.14 20 14 50 1.47 1127
3/0 19 1.19 9 14 50 1.52 1070 2/0 19 1.14 13 12 50 1.50 1167
4/0 19 1.25 11 14 50 1.57 1184 3/0 19 1.19 25 14 50 1.52 1263
250 37 1.30 13 14 80 1.69 1358 3/0 19 1.19 16 12 50 1.55 1300
350 37 1.40 18 14 80 1.79 1604 4/0 19 1.25 32 14 50 1.57 1437
500 37 1.53 25 14 80 1.95 1989 4/0 19 1.25 20 12 50 1.61 1468
500 37 1.53 16 12 80 1.99 2036 4/0 19 1.25 13 10 80 1.71 1592
750 61 1.74 24 12 80 2.19 2628 250 37 1.30 25 12 80 1.73 1716
750 61 1.74 15 10 80 2.24 2684 250 37 1.30 16 10 80 1.77 1772
1000 61 1.89 31 12 80 2.34 3139 350 37 1.40 32 12 80 1.83 2038
1000 61 1.89 20 10 80 2.38 3217 350 37 1.40 20 10 80 1.87 2084
1000 61 1.89 16 9 80 2.41 3260 350 37 1.40 16 9 80 1.89 2119
- - - - - - - - 500 37 1.53 29 10 80 2.03 2667
- - - - - - - - 750 61 1.74 28 8 80 2.29 3661
- - - - - - - - 1000 61 1.89 37 8 80 2.44 4483
Aluminum 133% Insulation Level (420 mil)
1/0 19 1.25 6 14 50 1.57 1076 1/0 19 1.25 16 14 50 1.57 1196
2/0 19 1.29 7 14 50 1.62 1157 2/0 19 1.29 20 14 80 1.68 1380
3/0 19 1.34 9 14 80 1.73 1331 2/0 19 1.29 13 12 80 1.71 1424
4/0 19 1.40 11 14 80 1.79 1454 3/0 19 1.34 25 14 80 1.73 1524
250 37 1.45 13 14 80 1.84 1571 3/0 19 1.34 16 12 80 1.76 1566
350 37 1.56 18 14 80 1.98 1876 4/0 19 1.40 32 14 80 1.79 1707
500 37 1.68 25 14 80 2.11 2235 4/0 19 1.40 20 12 80 1.82 1743
500 37 1.68 16 12 80 2.14 2285 4/0 19 1.40 13 10 80 1.86 1805
750 61 1.89 24 12 80 2.34 2902 250 37 1.45 25 12 80 1.88 1933
750 61 1.89 15 10 80 2.39 2963 250 37 1.45 16 10 80 1.92 1992
1000 61 2.04 16 9 80 2.56 3560 350 37 1.56 32 12 80 2.01 2314
- - - - - - - - 350 37 1.56 20 10 80 2.05 2365
- - - - - - - - 350 37 1.56 16 9 80 2.08 2403
- - - - - - - - 500 37 1.68





Packaging & Shipping

 Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649



Our Services



We are glad to offer free samples for testing, please feel free to talk with us.



Company Information

Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649Primary Ud Cable 35Kv Al/Epr/Neutral/LLDPE AEIC CS 8 ICEA S-94-649



FAQ



1. Are you a manufacturer?

Yes, we are a manufacturer. Jiangsu Baoan Cable  Co., Ltd. Is factory. Mainly responsible for the import and export business.



2. What are your main products?

Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.



3. Is the quality of your products guaranteed?

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.



4. How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.



5.What is your waranty terms?

The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Jiangsu Boan Cable Co., Ltd.
Business Type
Manufacturer
Year Established
1996
Factory Size
Below 1,000 square meters
Total Employees
501 - 1000 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Communication Cable Communication Cable
Audio & Video Cable Audio & Video Cable
Power Cord & Extension Cord Power Cord & Extension Cord
Wire Harness Wire Harness
Cable Tools Cable Tools
Enameled Wire Enameled Wire
Cable Assembly Cable Assembly
Optical Fiber Optical Fiber
Power Cable Power Cable
