Specifications
sand makerquality
2.high efficiency
3.also called sand making machine
4.artificial sand making
China new top quality artificial sand makers for sale
1. Introduction
Sand maker is widely used in fine crushing and rough grinding of metal, mineral, building aggregate, concrete, anti-fire material, glass raw material, manufactured sand and all kinds of metallurgical slug. It is also can utilized in shaping of high rank road surface. Compared with other kind of crusher, it is more advanced in intermediate hard, extra hard and abrasive material
2.Features and Benefits
- Simple structure , lower operation cost
- Cubic type , final product size: less than 5mm (30%~60%)
- Working noise is less than 75 decibels and dust pollution is little.
- Slightly influenced by the humidity of material, and the max humidity is 8%.
- More suitable for crushing mid-hardness materials and high-hardness materials.
3.Working Principle
Sand making machine, also named as “sand maker”, plays an important role in crushing minerals into pieces. This equipment has two types: rock-on-rock and rock-on-iron. Sand yield of “rock-on-iron” type is higher by 10-20% than that of “rock-on-rock” type.
4.specification
Model |
Max. Feed Size (mm) |
Impeller Speed (r/min) |
Capacity (t/h) |
Power (kW) |
PL700 |
45 |
1700-2000 |
30-60 |
75-90 |
PL800 |
55 |
1400-1620 |
50-90 |
110-150 |
PL900 |
65 |
1330-1530 |
80-150 |
180-264 |
PL1050 |
80 |
1200-1400 |
150-250 |
264-320 |
PL1250 |
100 |
1000-1100 |
250-500 |
440-500 |
PL1300 |
100 |
1000-1100 |
500-700 |
500-640 |

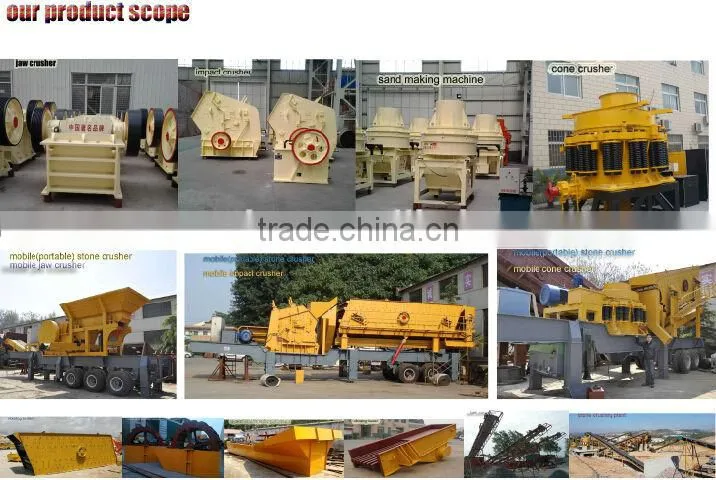

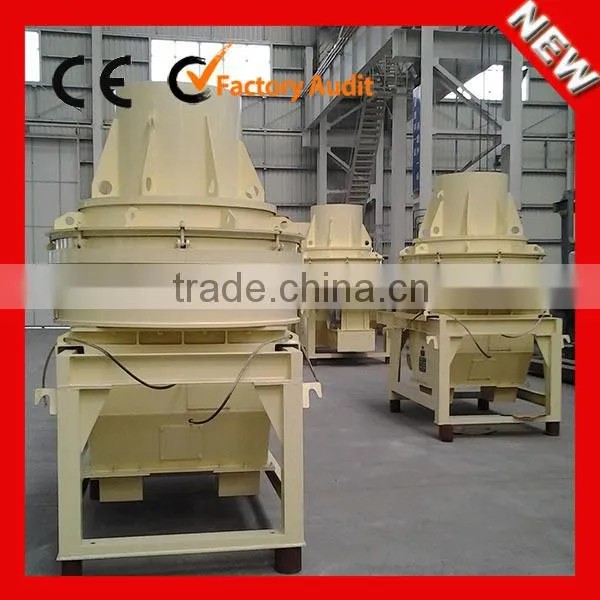

5.Photo
After-Sale Service of sand making machine
Erection and Commissioning
Operator Training
Spare Parts Supply
Warranty Terms: More than 12 months
Delivery Time: 20~30 days after receiving advanced payment .
Products Certificate: TUVRheinland CE , ISO9001:2000

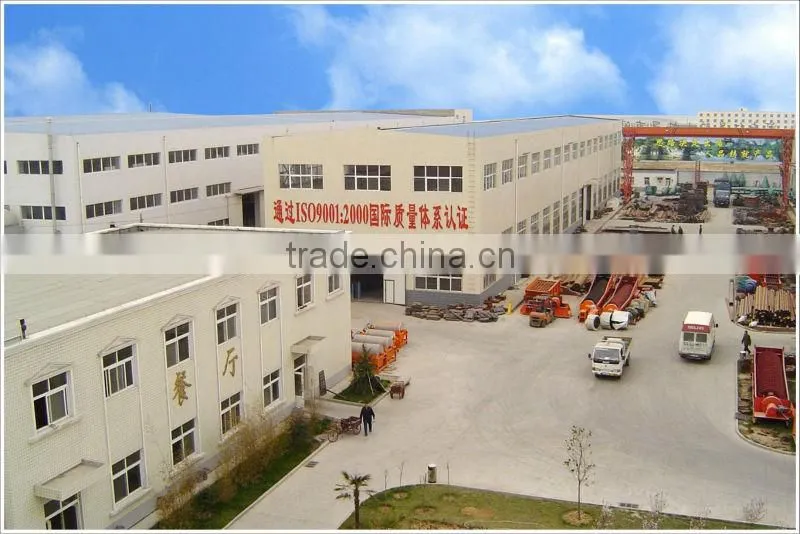

Introduction:
Zhengzhou Zoonyee mining machinery Co.,Ltd has been specialized in this field of stone crushing equipment for decade years.We have many experts and professional technical personnels.We also do technical communication and cooperation with large construction waste treatment equipment manufacturers in Europe.The company insists to innovate and continues to develop products with international leading technology and independent intellectual property rights.Zoonyee company pays attention to the development of new products and new technology,so far the company has won more than 10 invention patents and new national utility patents.
Besides expansion on domestic market,our products have also been exported to Canada, Russia, India,Mongolia,South Africa,Central Asia,Western Asia and other countries and regions.
Our eternal objective is to create the biggest value for our customers.
