Type SHD-GC, Mining Cable, Cu/Epr/TPU, 3/C, 15kv (ICEA S-75-381/NEMA WC-58)
Applications
These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps and mobile equipment where grounding conductors, a ground check conductor and metallic shielding are required.
Standards
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA-C22.2 No.96

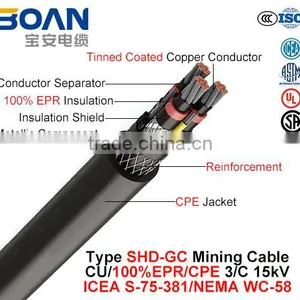

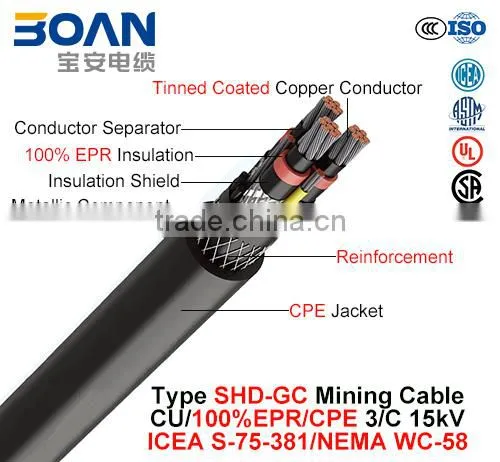

Construction
Conductors: Stranded annealed tinned copper conductor.
Insulation: Ethylene Propylene Rubber (EPR).
Insulation Shield: Tinned copper/textile braid.
Ground Check
Conductor: Tinned copper conductor with a yellow polypropylene insulation.
Grounding Conductor: Tinned copper conductor.
Jacket: Reinforced extra-heavy-duty
Chlorinated Polyethylene (CPE), black.
Options
Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD
Maximum Conductor
Operating Temperature: +90ºC
| Constructon | No. of Strands | Grounding Conductor Size | Control Conductor Size | Nominal Insulaton Thickness | Nominal Jacket Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity |
| No. of cores×AWG/kcmil | AWG/kcmil | AWG/kcmil | inch | inch | inch | lbs/kf | A | |
| 3×4 | 259 | 8 | 8 | 0.15 | 0.205 | 1.94 | 2019 | 122 |
| 3×2 | 259 | 6 | 8 | 0.15 | 0.220 | 2.12 | 2603 | 159 |
| 3×1 | 259 | 5 | 8 | 0.15 | 0.220 | 2.21 | 2913 | 184 |
| 3×1/0 | 266 | 4 | 8 | 0.15 | 0.220 | 2.32 | 3351 | 211 |
| 3×2/0 | 323 | 3 | 8 | 0.15 | 0.235 | 2.46 | 3946 | 243 |
| 3×3/0 | 418 | 2 | 8 | 0.15 | 0.250 | 2.62 | 4582 | 279 |
| 3×4/0 | 532 | 1 | 8 | 0.15 | 0.250 | 2.75 | 5321 | 321 |
| 3×250 | 627 | 1/0 | 6 | 0.15 | 0.250 | 2.89 | 6101 | 355 |
| 3×350 | 888 | 2/0 | 6 | 0.15 | 0.280 | 3.21 | 7696 | 435 |
| 3×500 | 1221 | 4/0 | 6 | 0.15 | 0.295 | 3.56 | 10199 |
