Type Shd-Pcg AWG 1/0 mining cable Cu/Epr/CPE 3/C 5kv ICEA S-75-381
- 50000000 Meter / Meters per Month
- Shanghai
- T/T D/P D/A Credit Card
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Boan or OEM | Model Number: | Type Shd-Pcg |
Insulation Material: | Other, Epr | Type: | Medium Voltage | Application: | Mining |
Conductor Material: | Copper | Jacket: | Other, CPE |
Product Description
Type SHD-PCG, Mining Cable, Cu/Epr/CPE, 3/C, 5kv (ICEA S-75-381/NEMA WC-58)
Applications
These heavy duty cables are designed for use on longwall shearers, where three shielded power conductors, three unshielded control conductors, and a grounding conductor are required.
Standards
ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA-C22.2 No.96

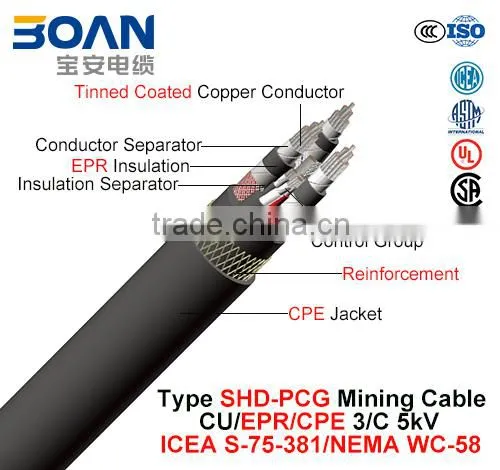

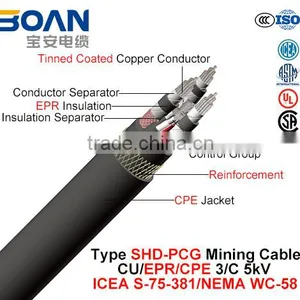

Construction
Conductors:
Stranded annealed tinned copper conductor.
Insulation: Ethylene Propylene Rubber (EPR).
Insulation Shield: Tinned copper/textile braid.
Control Group (3 Conductor): Tinned copper conductor, EPR insulation and thermosetting jacket.
Colour of insulation: Black, white and red.
Grounding Conductor: Tinned copper conductor, located in the center of the cable.
Jacket: Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD Maximum
Conductor Operating Temperature: +90ºC
Constructon | No. of Strands | Grounding Conductor Size | Control Conductor Size | Nominal Insulaton Thickness | Nominal Jacket Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity |
No. of cores×AWG/kcmil | AWG/kcmil | AWG/kcmil | inch | inch | inch | lbs/kf | A | |
3×2 | 259 | 4 | 8 | 0.11 | 0.205 | 2 | 2769 | 159 |
3×1 | 259 | 4 | 8 | 0.11 | 0.22 | 2 | 2825 | 184 |
3×1/0 | 266 | 3 | 8 | 0.11 | 0.22 | 2 | 3571 | 211 |
3×2/0 | 329 | 2 | 8 | 0.11 | 0.22 | 2 | 3774 | 243 |
3×3/0 | 418 | 1 | 8 | 0.11 | 0.235 | 3 | 4752 | 279 |
3×4/0 | 532 | 1/0 | 6 | 0.11 | 0.25 | 3 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
