Help CenterType Shd-Gc Mine Cable Cu/epr/TPU 25kv ICEA S-75-381 NEMA WC-58
Related Products
-
Type MP-Gc Mining Cable Cu/Epr/CPE 3/C 5kv ICEA S-75-381 NEMA WC-58US$ 1 - 5MOQ: 500 Inches -
300mm2 Mining Cable Cu/XLPE/PVC 3/C 5kv ICEA S-75-381/NEMA WC-58US$ 1 - 5MOQ: 500 Inches
-
Type MP-Gc Mining Cable Cu/XLPE/PVC 3/C 8kv ICEA S-75-381/NEMA WC-58US$ 1 - 2MOQ: 500 Inches
-
Type MP-Gc MineCable Cu/XLPE/PVC 3/C 15kv ICEA S-75-381/NEMA WC-58US$ 1 - 2MOQ: 500 Inches
-
Type Shd-Gc Mining Cable Cu/Epr/TPU 3/C 15kv ICEA S-75-381/NEMA WC-58US$ 1 - 5MOQ: 500 Inches
Product Description
These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps and mobile equipment where grounding conductors, a ground check conductor and metallic shielding are required.
Standards
ICEA S-75-381/NEMA

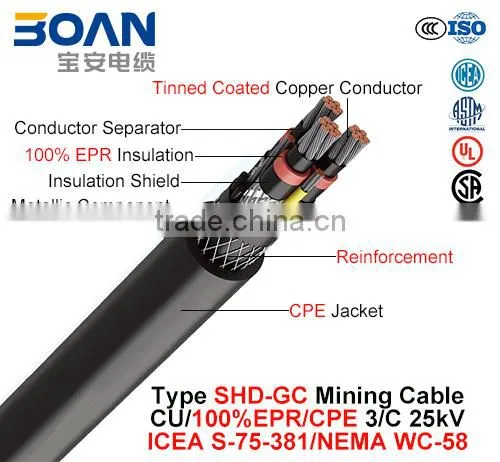

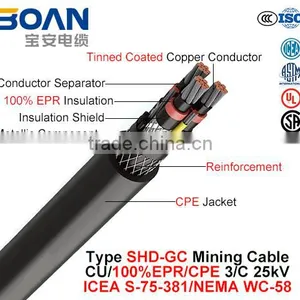

Construction
Conductors: Stranded annealed tinned copper conductor.
Options Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD
| Constructon | No. of Strands | Grounding Conductor Size | Control Conductor Size | Nominal Insulaton Thickness | Nominal Jacket Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity |
| No. of cores×AWG/kcmil | AWG/kcmil | AWG/kcmil | inch | inch | inch | lbs/kf | A | |
| 3×1 | 259 | 5 | 8 | 0.26 | 0.265 | 2.95 | 4410 | 191 |
| 3×1/0 | 266 | 4 | 8 | 0.26 | 0.265 | 3.05 | 4866 | 218 |
| 3×2/0 | 323 | 3 | 8 | 0.26 | 0.280 | 3.2 | 5560 | 249 |
| 3×3/0 | 418 | 2 | 8 | 0.26 | 0.280 | 3.33 | 6192 | 286 |
| 3×4/0 | 532 | 1 | 8 | 0.26 | 0.295 | 3.5 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
