Type G-Gc Mining Cable AWG8 Cu/Epr/CPE /C 2kv ICEA S-75-381

Name: Type G-Gc Mining Cable AWG8 Cu/Epr/CPE /C 2kv ICEA S-75-381
Brand: Boan or OEM
SKU: 116459693
Availability: InStock

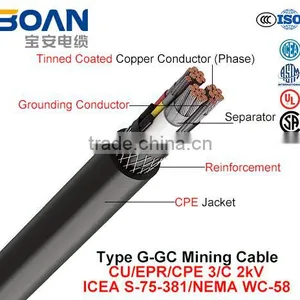

Type G-Gc Mining Cable AWG8 Cu/Epr/CPE /C 2kv ICEA S-75-381 thumbnail-1

Type G-Gc Mining Cable AWG8 Cu/Epr/CPE /C 2kv ICEA S-75-381 photo-1

US$ 1 - 5 MOQ: 500 Inches

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Boan or OEM

Model Number:

Type G-Gc

Contact Supplier Request Quote Chat Now

Jiangsu Boan Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Boan or OEM

Model Number Type G-Gc

Insulation Material Other, Epr

Type Medium Voltage

Application Mining

Conductor Material Copper

Jacket Other, CPE

Product Description

Type G-Gc, Mining Cable, Cu/Epr/CPE, 3/C, 2kv (ICEA S-75-381/NEMA WC-58)

Features

Meets all requirements of ICEA S-75-381. Reformulated compounds suitable for CV curing, developed to meet the high level of physical properties required in service. -40 °C Rating CPE Jacket.

Application

Trailing cable on ac mining equipment where a ground conductor is required. For use where induced voltages in grounding system will not produce a hazard.

Standards

ICEA S-75-381/NEMA WC-58 Portable and Power Feeder Cables for Use in Mines and Similar Applications.

Specifications

Maximum operating voltage: 2 kV

Maximum conductor operation temperature: 90 °C wet or dry locations under normal operating conditions.

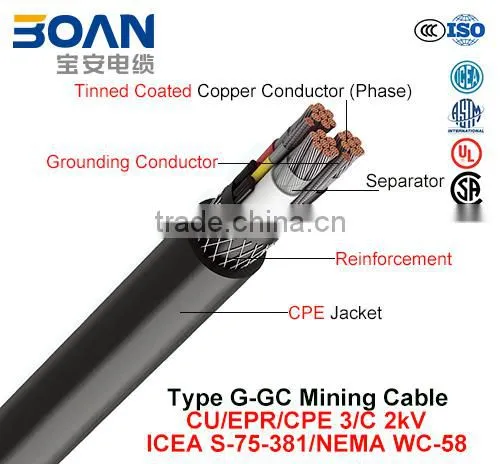

Engineering Information

1. Conductor: Soft or annealed tinned coated copper conductor, rope lay flexible stranding per ASTM B172.

2. Separator: A separator may be applied over the conductor.

3. Insulation: High quality, heat, moisture, ozone and, thermosetting ethylene propylene rubber (EPR) meeting ICEA S-75-381.

4. Phase ID: Color coded insulation, Black, White and Red.

5. Ground Check: Thermosetting insulation yellow colored for identification.

6. Assembly: Phase conductors cabled together with nonhygroscopic fillers as required and a binder tape.

7. Jacket: Black heavy duty chlorinated polyethylene (CPE) compound, applied in one layer over a fibrous reinforcement layer.

Conductor Size	Number of Strands	Size of Each Strand	Nominal Insulation Thickness	Ground Conductor Size	Maximum Overall Diameter	Approximate Total Weight
AWG or kcmil		AWG	mil	AWG	in	lb/kft
8	133	29	60	10	1	652
6	133	27	60	10	1.08	800
4	259	28	60	8	1.22	1082
2	259	26	60	7	1.37	1458
1	259	25	80	6	1.54	1848
1/0	259	24	80	5	1.69	2251
2/0	329	24	80	4	1.79	2681
3/0	413	24	80	3	1.94	3232
4/0*	532	24	80	2	2.09	3642
250*	608	24	95	2	2.45	4556
300*	741	24	95	1	2.62	5389
350*	855	24	95	1/0	2.74	6095
500*	1221	24	95	2/0	3.09	7916
