Zoonye Hot Selling Artificial Sand Casting Machine Price
- 500 Set / Sets per Month
- Qingdao
- T/T
- Mining Stone Crushing Machine Silica Quartz Sand Making Production Line
- High Efficiency Stone Fine Crusher 5X Series Sand Making Machine
- High Efficient Artificial Building VSI Crusher Sand Making Machine Equipment
- Automatic Zero Discharge Concrete Recycling System
- Concrete Batching Plant Parts
- Concrete Recycling Machine
Product Details
Condition: | New | Production Capacity: | 60-90 | Place of Origin: | Henan, China |
Brand Name: | zoonye | Model Number: | VSI7611 | Voltage: | 380v |
Power(W): | 110kw | Dimension(L*W*H): | 3700*2150*2100mm | Weight: | 11.8t |
Certification: | CE, ISO9001:2000 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.The motor can be heated automatically in winter2. Unique vibrating alarm device
3. Special feeding structure
4.Low price

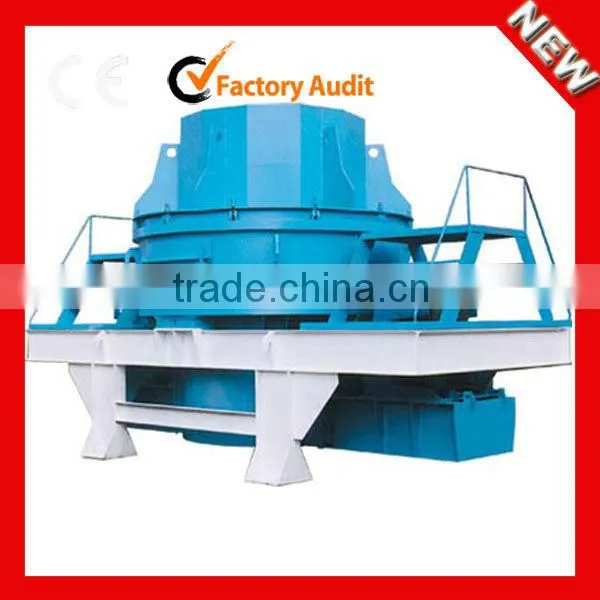

Zoonye Hot Selling Artificial Sand Casting Machine Price
Sand Casting Machine, type of sand making machine, is improved on the basis of Germany high technology, which is highly-efficient and superior in performance. The Zoonye VSI Crusher (sand making machine) is widely used to produce sand and stone for highway, high-speed railway, city project, hydropower dam constructions, and concrete mixing plant, and it’s also widely used in sand making and stone reshaping industry.
Features Of Sand Casting Machine
1. The oil needed is supplied by two oil pumps, and the machine stops automatically if there is no oil; the motor can be heated automatically in winter to ensure the normal working of the machine.
2. Hydraulic lifting system to check and replace the spare parts, thus it’s very easy and simple to maintain.
3. The bearing is of SKF and TIMKEN brand to ensure the normal working of the machine.
4. Unique vibrating alarm device: if the machine works abnormally, the alarm will sound to stop the machine, thus protecting the whole machine.
5. Special feeding structure; rock on rock, and rock on iron to make the stones crushed and reshaped.
6. Unique dustproof seal system to prevent the dust getting into the spare parts.
7. Unique design of material bumping angle reduces the friction between raw material and spare parts, extending the working life of spare parts and cut the cost.
8. Low price
Working Principle of Sand Casting Machine
- Central feeding:Raw materials fall down into the feeding hopper, then enters the impellor through central entrance inlet, thus the material being accelerated by the high-speed impellor and being thrown out at the speed of 60-75m/s. It is crushed when hitting the impact plate, and the end products comes out from the discharging outlet.
- Ring feeding:Raw materials fall down into the feeding hopper, and the materials are divided into two parts by a special plate. Some materials enter the impellor through the center of the plate and the other part of materials falls down from outside of the plate. The materials thrown out earlier crush the materials down from outside, thus the materials crushed and re-crushed.
The Application of Sand Casting Machine
1. River pebbles, rocks (limestone, granite, basalt, diabase, and esite), ore tailings, the artificial sand stone chips.
2. Production of construction aggregate, Highway fabric, cushion material, asphalt concrete and cement concrete aggregate.
3. Production of water conservancy and hydropower engineering, highway, highways, high-speed rail passenger line, bridges, airport runways, municipal engineering, high-rise building mechanisms sand and stone shaping.
4. Material crushing grinding of the mining areas of front-end crushing process, building materials, metallurgy, chemical, mining, refractory, cement, abrasive industry.
5. High abrasive and secondary disintegration broken, thermal power, metallurgy industry, in addition to sulfur, slag, construction waste crushing and other environmental projects.
6. Glass, quartz sand and other high purity materials production.
Specification of Sand Casting Machine
Model | Capacity(t/h) | Best feed size(mm) | Rototion speed(r/min) | Double motor power(kw) | Demension(mm) | Weight(t) | Power supplier | ||
feed both at center and at sides | Feed at center | Soft material | Hard material | ||||||
VSI-7611 | 120-180 | 60-90 | 35 | 30 | 1700-1890 | 110 | 3700*2150*2100 | 11.8 | 380V50HZ |
VSI-8518 | 200-260 | 100-130 | 40 | 35 | 1520-1690 | 180 | 4140*2280*2425 | 14.5 | |
VSI-9526 | 300-380 | 150-190 | 45 | 40 | 1360-1510 | 264 | 4560*2447*2778 | 17.8 | |
VSI-1140 | 450-520 | 220-260 | 50 | 45 | 1180-1310 | 400 | 5000*2700*3300 | 25.6 |
- Packaging: Standard Container, Nude Packs or in Bulk.
- Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
VSI sand casting machine has good quality and reasonable price.
