Specifications
1.won the national patent2.lower electricity consumption
3.advanced leve
Environmental industry waste briquetting machine
Introduction:
This machine is a new generation of energy-saving products, researched and developed by our researcher newly. It is mainly for the renewable or recycled organic material's densification and molding. it can make the biomass briquette from the different raw material via the high temperature, high pressure procedure.
Raw material:
1. Wood waste, scobs, branch, palm tree,
2.bean straw, wheat straw, corn straw, cotton straw, rice straw, rice husk,
3. Cotton shell, peanut shell, rice shell, palm tree, coconut shell,
4. Livestock and poultry's waste and other organic waste resources and so on,
Application:
1. Home heating stoves
2. Hot water boilers and the industrial boilers,
3. Biomass power plants and so on.
Specification:
Model |
YKJ-2-760 |
YKJ-2-810 |
YKJ-2-980 |
YKJ-2-1000 |
Power(KW) |
30 |
37 |
45 |
55 |
Capacity(t/h) |
1—1.2 |
1.3—1.8 |
2—2.5 |
2.8—3 |
Rotate Speed(r/min) |
980 |
980 |
980 |
980 |
Diameter of Mould(mm) |
760 |
810 |
980 |
1000 |
Hole No. in Mould |
30 |
36 |
42 |
60 |
Specification of briquette(mm) |
32*32 |
32*32 |
32*32 |
32*32 |
Length of raw material(mm) |
3—60 |
3—60 |
3—60 |
3—60 |
Moisture of raw material(%) |
15—30 |
15—30 |
15—30 |
15—30 |
Density of briquette(t/m3) |
0.8—1.4 |
0.8—1.4 |
0.8—1.4 |
0.8—1.4 |
Dimension(mm) |
2700*1000*1800 |
2700*1000*1800 |
1700*1100*1800 |
2700*1200*200 |
Weight(T) |
2.5 |
2.8 |
3.2 |
4.3 |

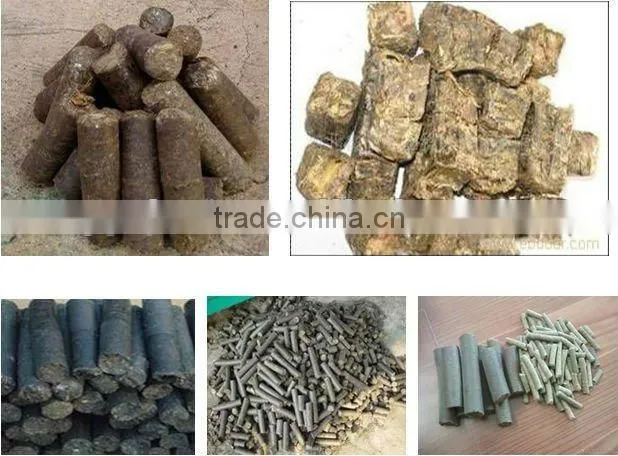

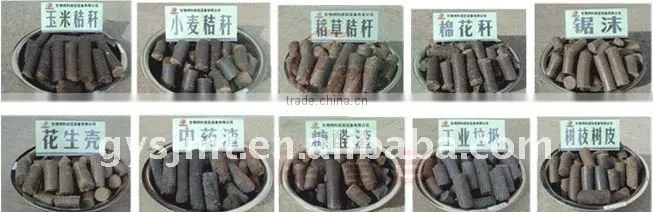

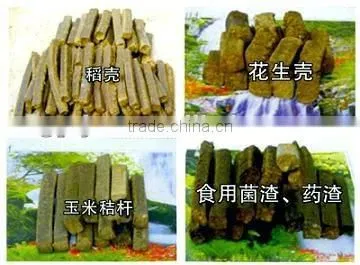

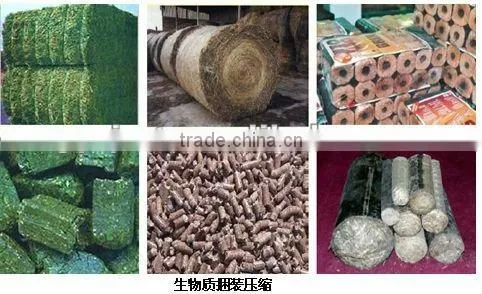

Final products
