Specifications
Biomass Briquetting Machine:1. environment friendly
2. saving-energy
3. Hot sale
4. Long use life & warranty time

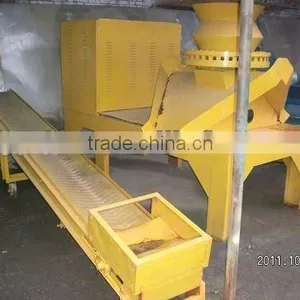

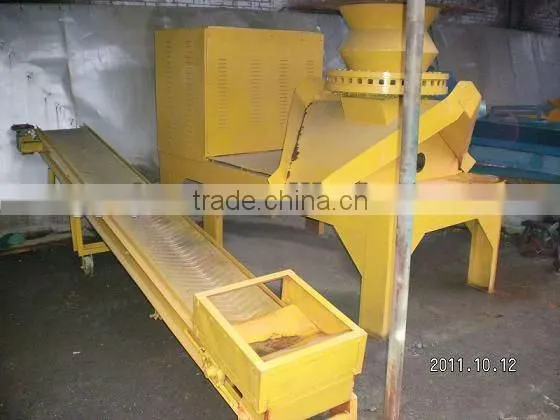

Biomass Briquetting Machine
Introduce:
This machine is a new generation of energy-saving products, researched and developed by our researcher newly. It is mainly for the renewable or recycled organic material's densification and molding. it can make the biomass briquette from the different raw material via the high temperature, high pressure procedure.
Raw material:
1. Wood waste, scobs, branch, palm tree,
2.bean straw, wheat straw, corn straw, cotton straw, rice straw, rice husk,
3. Cotton shell, peanut shell, rice shell, palm tree, coconut shell,
4. Livestock and poultry's waste and other organic waste resources and so on,
Application:
1. Home heating stoves
2. Hot water boilers and the industrial boilers,
3. Biomass power plants and so on.
Features:
1. This machine has a reasonable structure, stable performance, equipped with forced lubrication system, high efficiency, low energy consumption, good forming effect, simple operation, easy maintenance.
2. The unique mold structure for machining of various water crops straw: (1) the good adaptability to extend the raw material’s production cycle; (2) the size of material is 3 ~ 30 mm, moisture content in the range of 16% ~ 30%.
3. The ring mold with a flat type, cavity wear synchronization, effectively prolongs service life. Template is specially designed, so the biomass fuels have high density and smooth surface.
4. The automatic heating device for adjust the temperature and solve the problems such as congestion, poor shape in the molding.
Specification:
Model |
YKJ-2-760 |
YKJ-2-810 |
YKJ-2-980 |
YKJ-2-1000 |
Power(KW) |
30 |
37 |
45 |
55 |
Capacity(t/h) |
1—1.2 |
1.3—1.8 |
2—2.5 |
2.8—3 |
Rotate Speed(r/min) |
980 |
980 |
980 |
980 |
Diameter of Mould(mm) |
760 |
810 |
980 |
1000 |
Hole No. in Mould |
30 |
36 |
42 |
60 |
Specification of briquette(mm) |
32*32 |
32*32 |
32*32 |
32*32 |
Length of raw material(mm) |
3—60 |
3—60 |
3—60 |
3—60 |
Moisture of raw material(%) |
15—30 |
15—30 |
15—30 |
15—30 |
Density of briquette(t/m3) |
0.8—1.4 |
0.8—1.4 |
0.8—1.4 |
0.8—1.4 |
Dimension(mm) |
2700*1000*1800 |
2700*1000*1800 |
1700*1100*1800 |
2700*1200*200 |
Weight(T) |
2.5 |
2.8 |
3.2 |
4.3 |
Biomass Briquetting Machine
