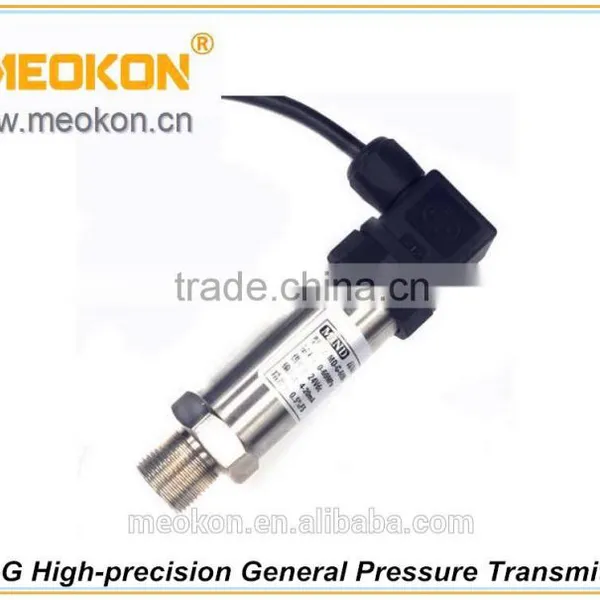

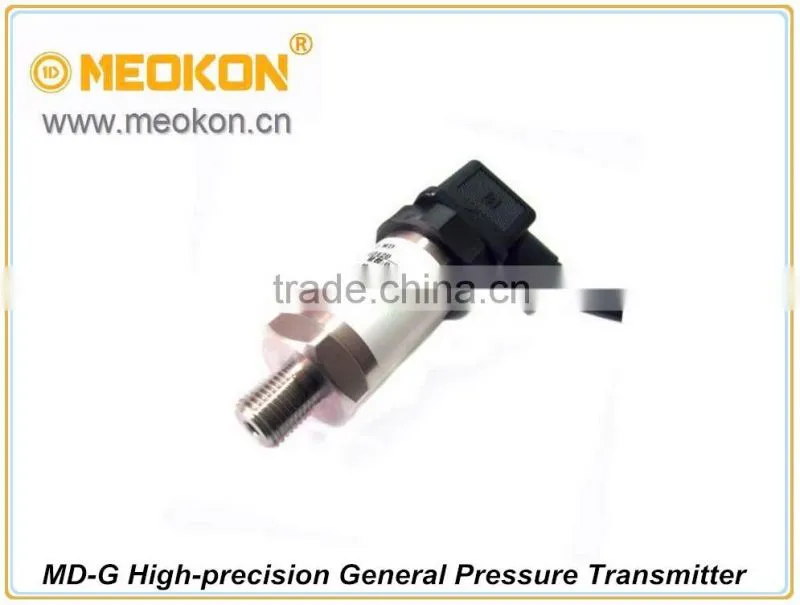

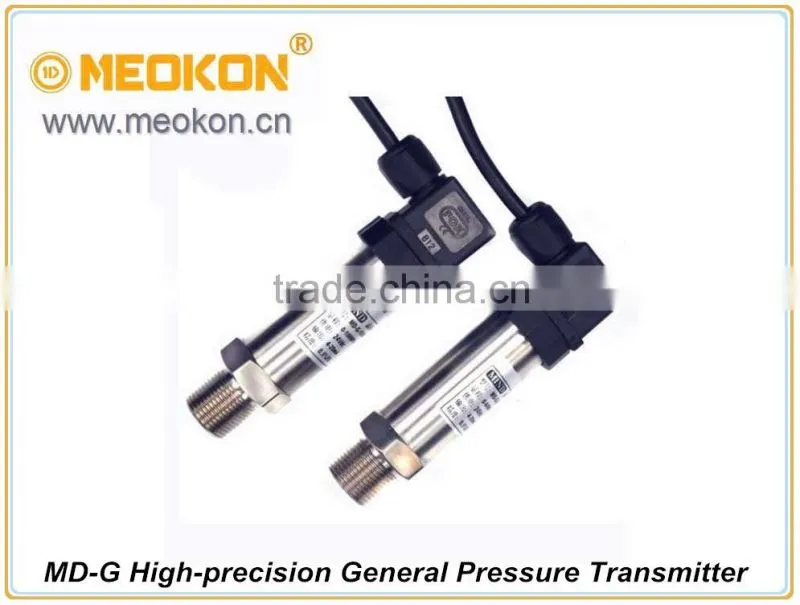

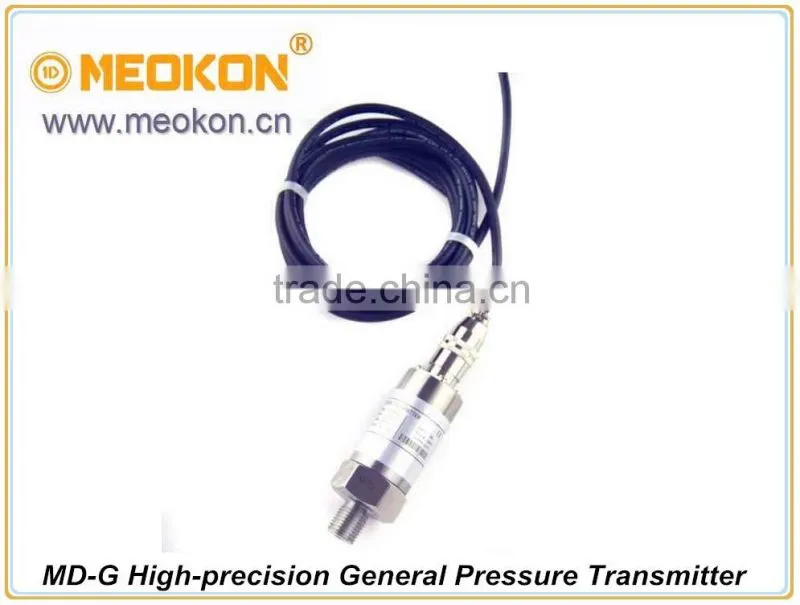

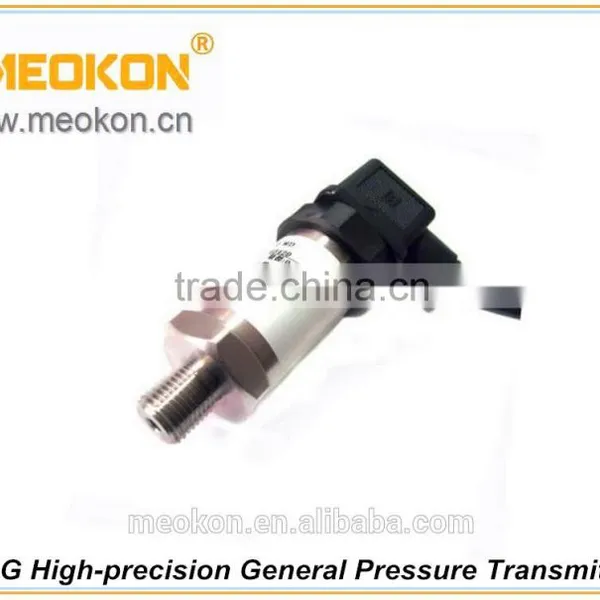

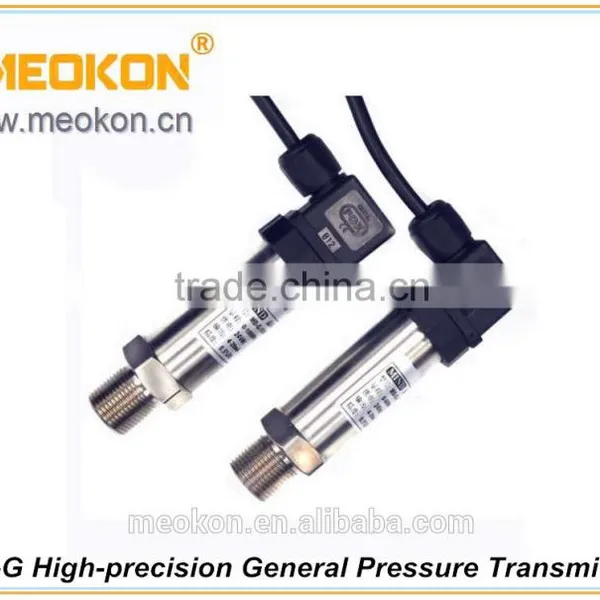

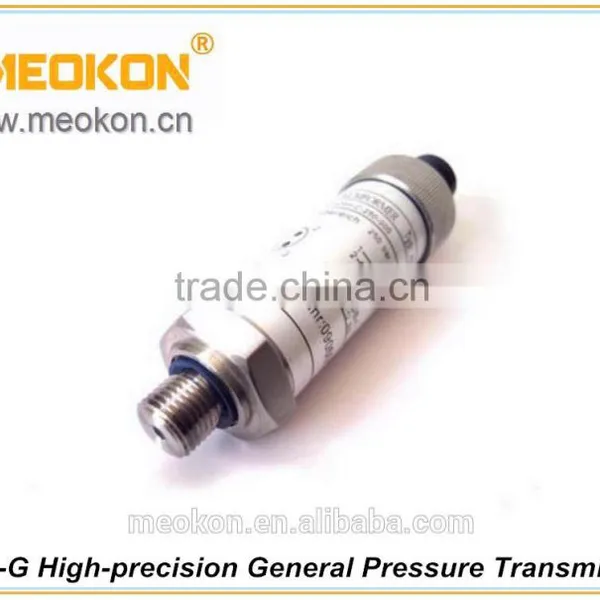

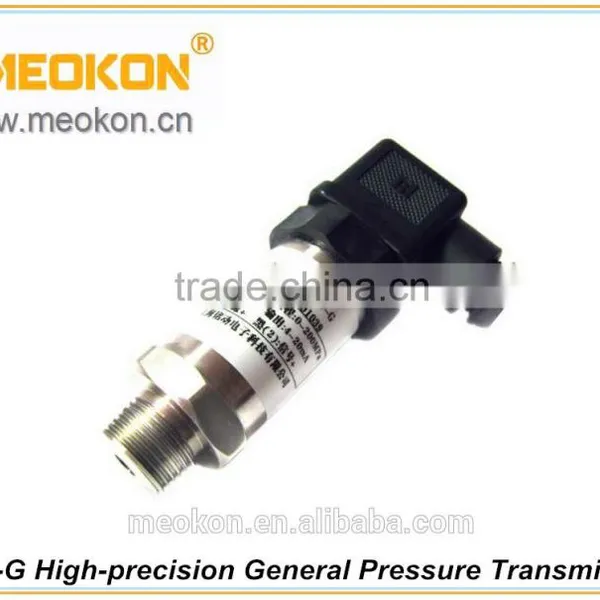

MD-G series high precision pressure transmitter adopts imported chip as the sensing chip.The transmitter has the followed advantages: compact structure, excellent anti-jamming performance of the internal circuit, full sealing stainless steel interface.
The design of IP65 protection grade and explosion-proof type ensure the use in various environments and situations.Excellent long-term stability and high precision of the MD-G series pressure transmitter can be widely used in a variety of fields.
SPECIFICATION
| Range |
Gage Pressure:-100kpa~0...5kpa...100KPa...1...5...10...25...60Mpa Absolute Pressure:0~5KPa..10KPa...20KPa...100KPa...1000KPa |
| Overload Pressure | ≤10MPa 200% ; >10MPa 150% |
| Response Time | ≤2ms |
| Acc. | 0.5%FS 0.25%FS |
| Long-term Stability | Typical:±0.1%FS/year |
Temperature effect on zero |
Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Sensitivity Temperature drift | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Operating Temperature | -40~85℃ |
| Compensation Temperature | -10~ 70℃ |
| Storage Temperature | -40~100℃ |
| Electric Protection | Reverse connect protection, Anti frequency interference |
| Protection Grade | IP65(DIN), IP67(Straight out) |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | G1/4, G1/2, M20*1.5, ZG1/4,R1/4(selectable) |
| Shell | Stainless Steel |
| Supply | 9-32VDC (Typical24V) |
| Output Signal | 4-20mA |
APPLICATION
Machine Automation
Engineering Machinery
Medical Equipment
Pump/compressor
Source water treatment system
Agricultural Machinery
Testing Jip
Hydraumatic and pneumatic system
PRODUCT SIZE
Standard pressure indicator transmitter export packing or follow the customer' requirements
SHIPPING:
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
MEOKON Sensing Technology (Shanghai) Co., Ltd is a high and new technology enterprise. The leading products: digital pressure gauge, digital pressure switch, intelligent pressure controller, pressure sensor, pressure transmitter, the transmitting instrument. It is a set R&D, design, production and sale in one professional unit.
We have more than 100 types specifications of sensors and transmitting instruments. According to customers' requirements, different kinds of sensors, display control appliances and measuring control systems can be customized. MEOKON' products are mainly used in these fields: air compressor, automobile professions, spurt & hydraulic pressure, water supply system, devoting to a wide range of sensor, transmitting instrument, measuring and controlling appliance, the date acquisition system.
Quality control is rigorously carried out through the whole production process. Our products are qualified for industrial standards, such as CE,CPA. Others, we have a good staff group and enterprise culture: sports meeting, cultural shows, parties, tourism and other activities.
MEOKON Sensing Technology (Shanghai) Co, Ltd sincerely look forward to your cooperation!
