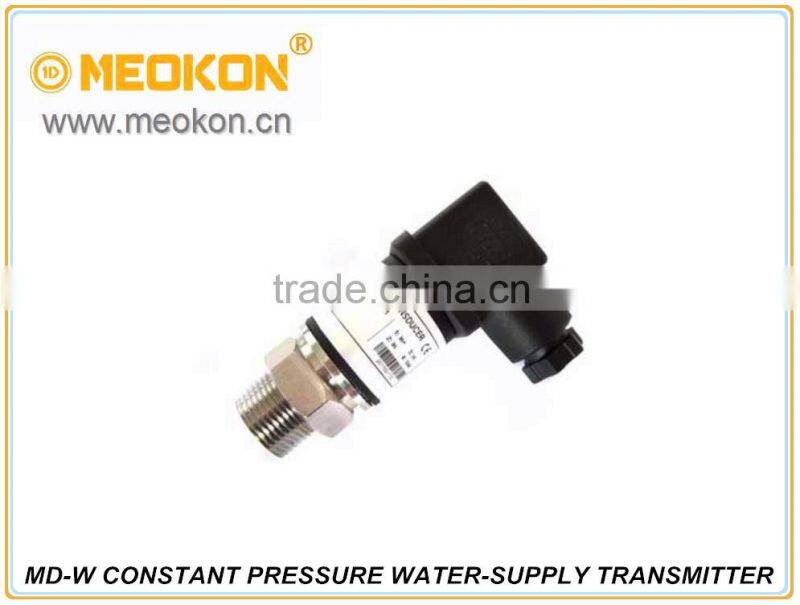

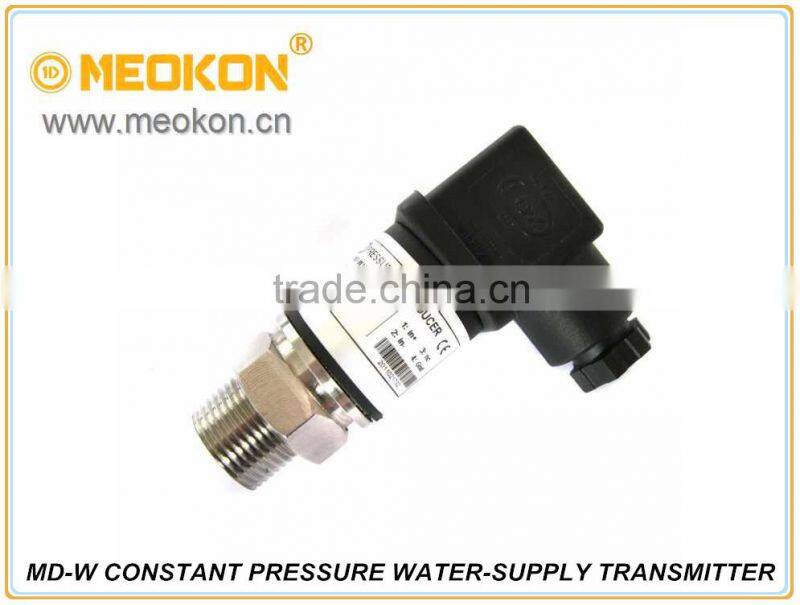

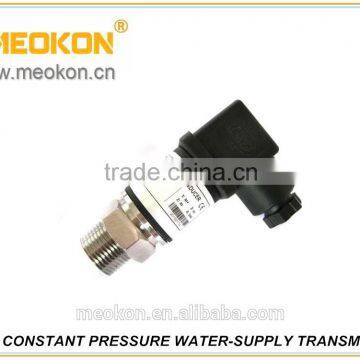

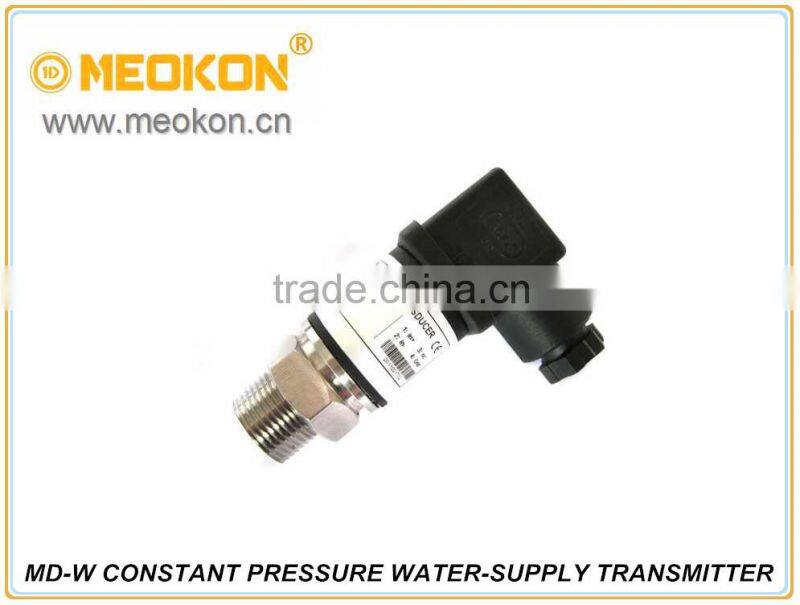

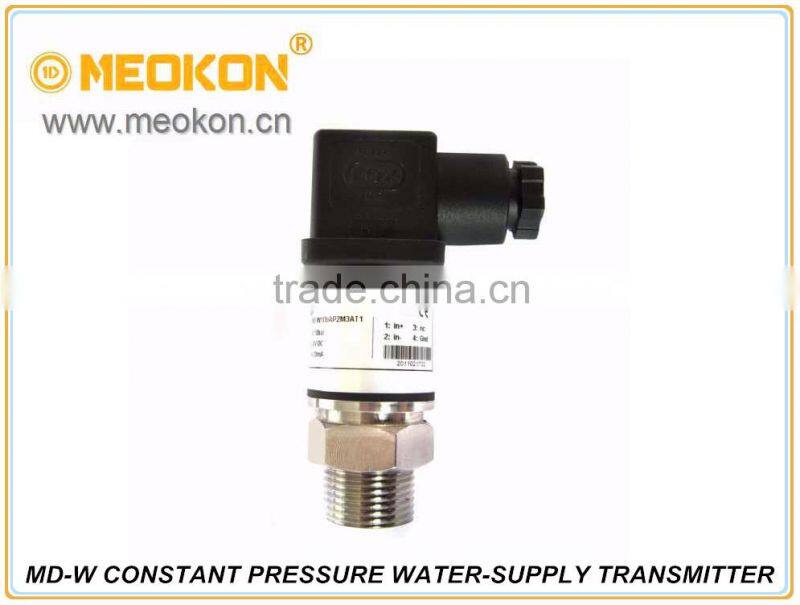

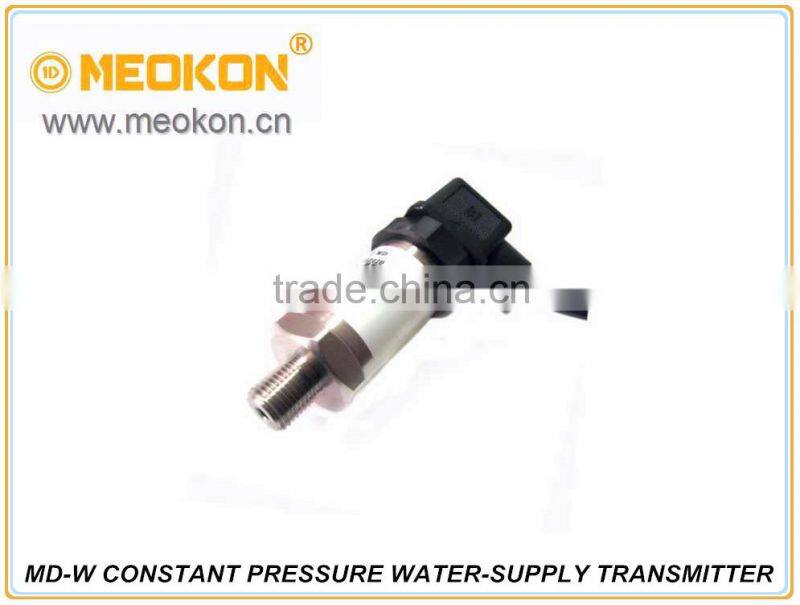

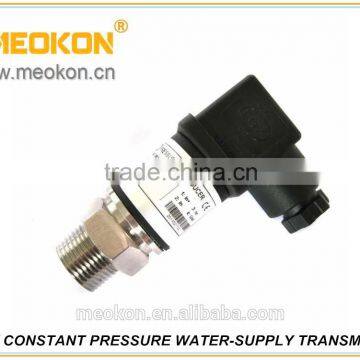

Help CenterMD-W Constant Pressure Water-supply Transmitter
Related Products
-
MD-M Hydraumatic Pressure TransmitterUS$ 1 - 100MOQ: 1 Piece -
MD-L100 General Input Type Liquid Lever TransmitterUS$ 1 - 100MOQ: 1 Piece
-
MD-L200 Anti-thunder Liquid Lever TransmitterUS$ 1 - 100MOQ: 1 Piece
-
MD-L500 Antiseptic Liquid Lever Transmitter Most PopularUS$ 1 - 100MOQ: 1 Piece
-
MD-L600 Mounted Liquid Lever TransmitterUS$ 1 - 100MOQ: 1 Piece

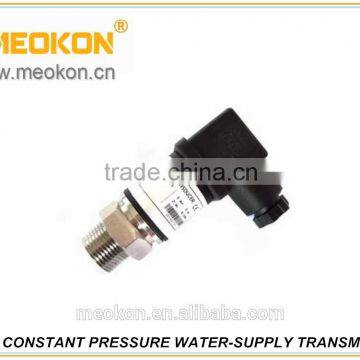

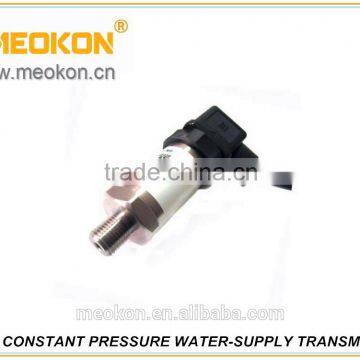

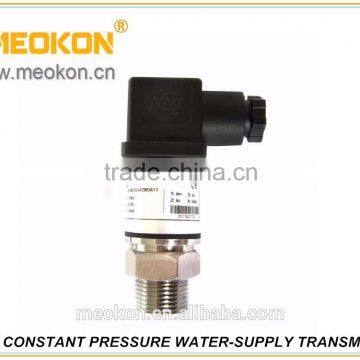

MD-W uses compact structure and miniaturized circuit. So it is easy to install because of the small size.
MD-W is designed to solve the frequency conversion problem in water-supply system. It uses anti frequency interference circuit to keep the signal and product stability. Considering the operation temperature of water-supply system, the anti frequency interference circuit will do temperature compensation for transmitter in the wide range -20~80℃ to keep the product high precision, small drift, good consistency, long-term stability.
The transmitter is widely used to supporting of various transducers, especially frequency conversion supporting equipment of pumps, frequency conversion control cabinet, water-supply equipment, building water-supply.
FEATURES:
- Anti-frequency interference, especial supporting with transducer, transducer pumps
- Long-term stability, high precision
- Wide voltage to power supply, 9-32V available
- Hirschmann interface, 304SS material
SPECIFICATION
| Range | 0-0Mpa...1.6Mpa...2.5Mpa (other range is customized) |
| Over Pressure | 200% |
| Dielectric Strength | 500VDC |
| Response Time | ≤2ms |
| Acc. | 0.5%FS |
| Long-term Stability | Typical:±0.2%FS/year |
Temperature effect on zero |
Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Sensitivity Temperature drift | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Operating Temperature | -20 ~ 80℃ |
| Compensation Temperature | -10 ~ 60℃ |
| Storage Temperature | -40 ~100℃ |
| Electric Protection | Reverse connect protection, resist interference of frequency scaling |
| Protection Grade | IP65(DIN) IP67(straight out) |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | G1/4, G1/2, M20*1.5(others customized) |
| Shell | 304SS |
| Supply | 9-32VDC (Typical24V) |

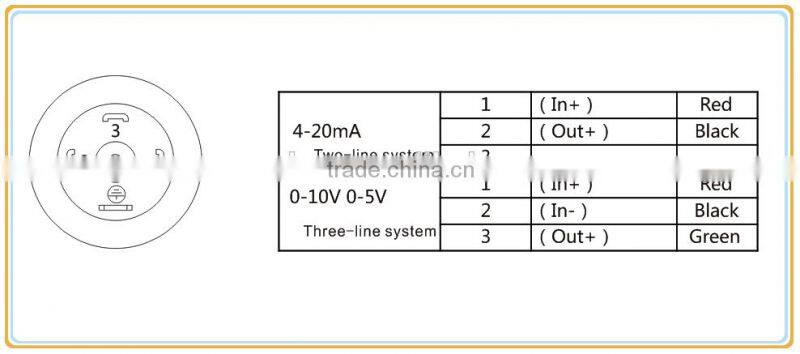

| Output Signal | 4-20mA 0-10V 0-5V |
APPLICATION
- Frequency Conversion Water-supply
- Supporting Equipment of Transducer
- Building Water-supply
- Tap Water Pipe Network

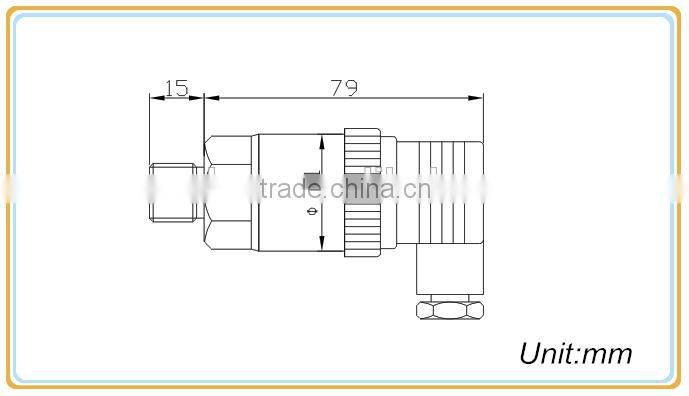

DIMENSION

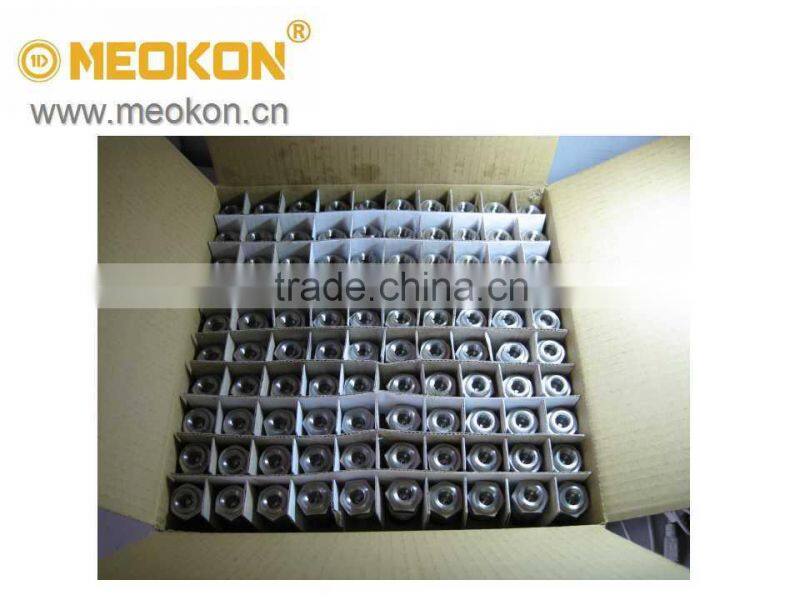

Standard pressure indicator transmitter export packing or follow the customer' requirements
SHIPPING:
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
MEOKON Sensing Technology (Shanghai) Co., Ltd is a high and new technology enterprise. The leading products: digital pressure gauge, digital pressure switch, intelligent pressure controller, pressure sensor, pressure transmitter, the transmitting instrument. It is a set R&D, design, production and sale in one professional unit.
We have more than 100 types specifications of sensors and transmitting instruments. According to customers' requirements, different kinds of sensors, display control appliances and measuring control systems can be customized. MEOKON' products are mainly used in these fields: air compressor, automobile professions, spurt & hydraulic pressure, water supply system, devoting to a wide range of sensor, transmitting instrument, measuring and controlling appliance, the date acquisition system.
Quality control is rigorously carried out through the whole production process. Our products are qualified for industrial standards, such as CE,CPA. Others, we have a good staff group and enterprise culture: sports meeting, cultural shows, parties, tourism and other activities.
MEOKON Sensing Technology (Shanghai) Co, Ltd sincerely look forward to your cooperation!
