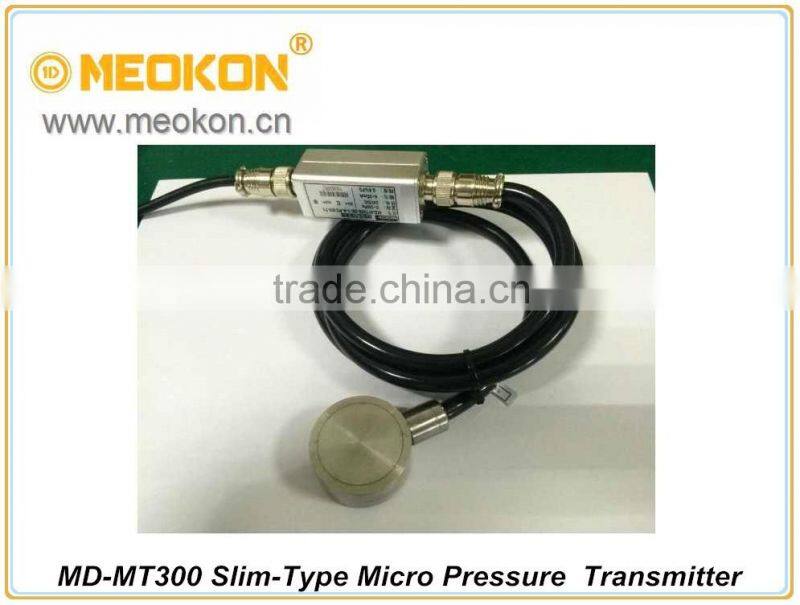

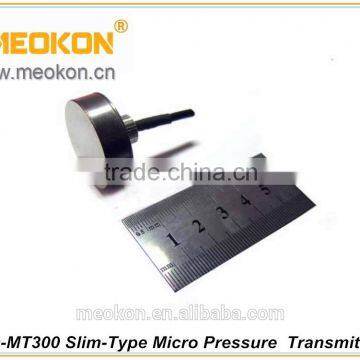

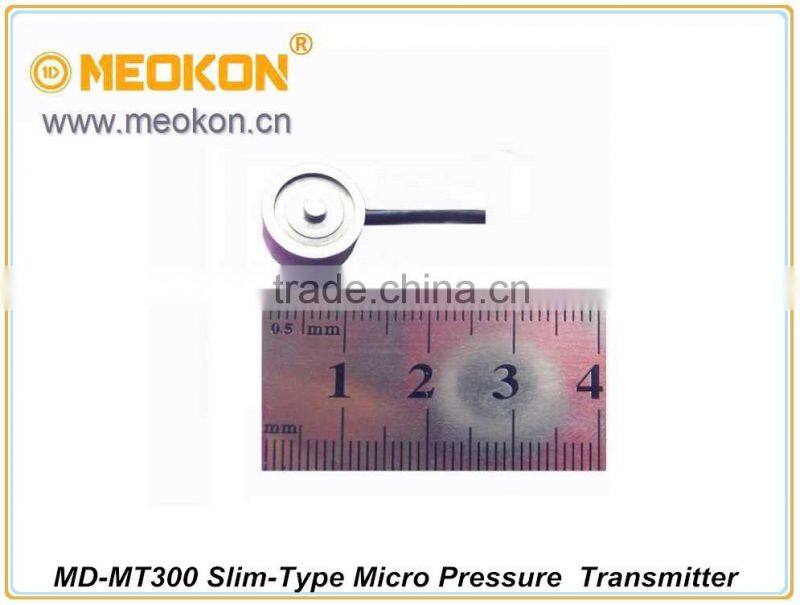

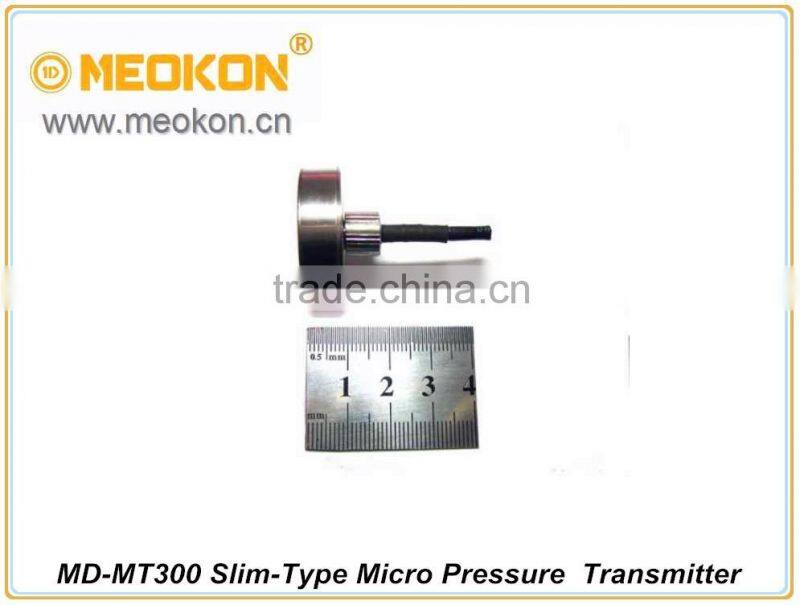

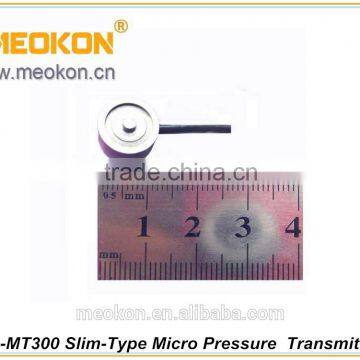

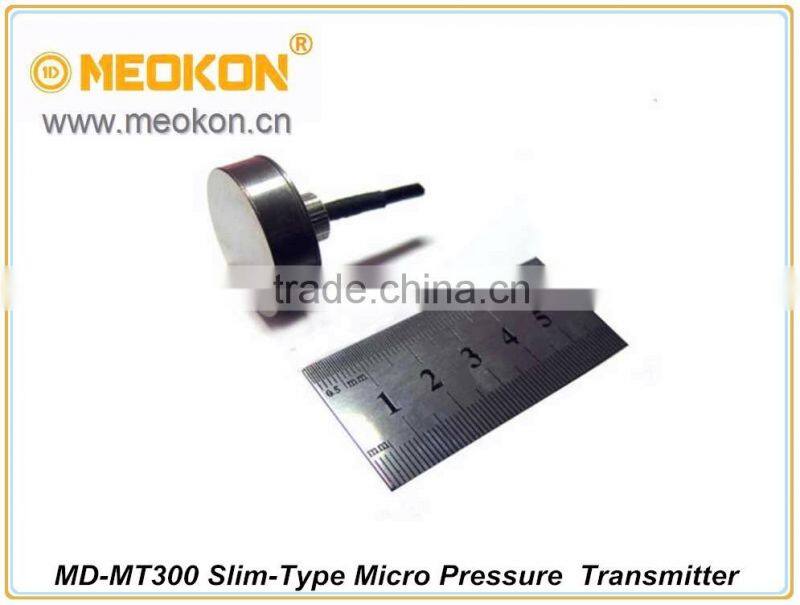

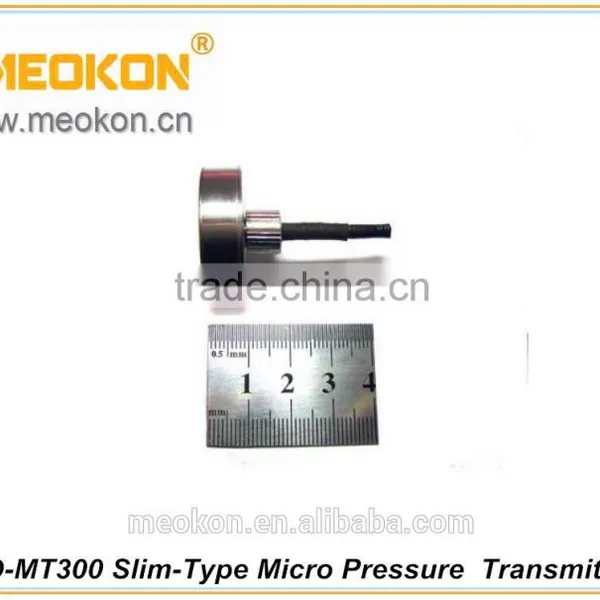

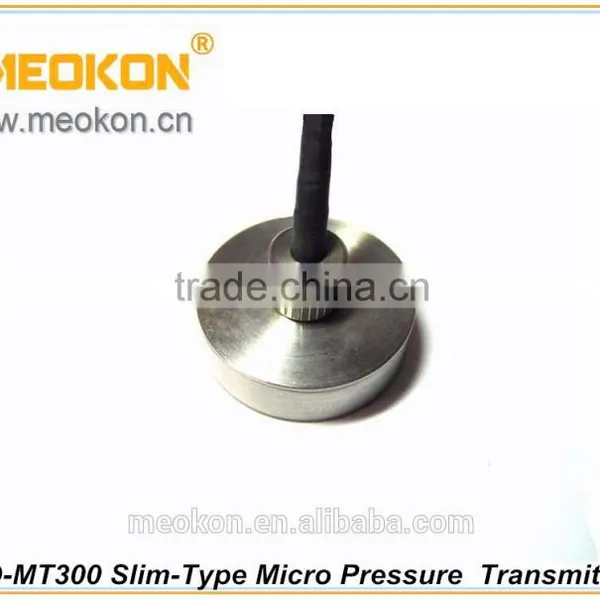

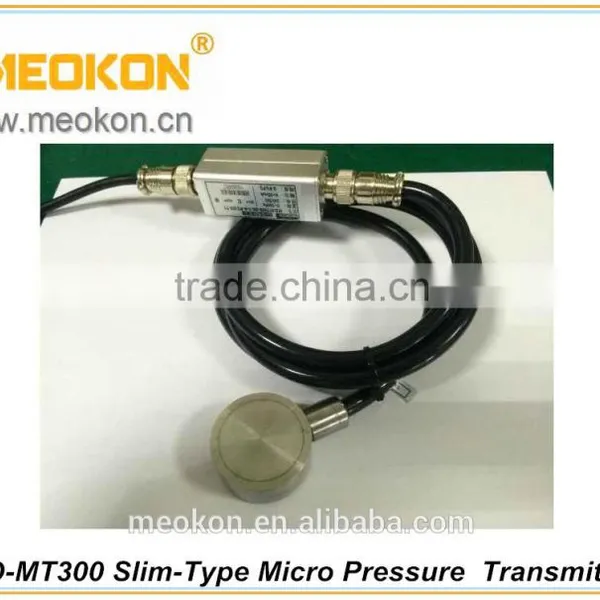

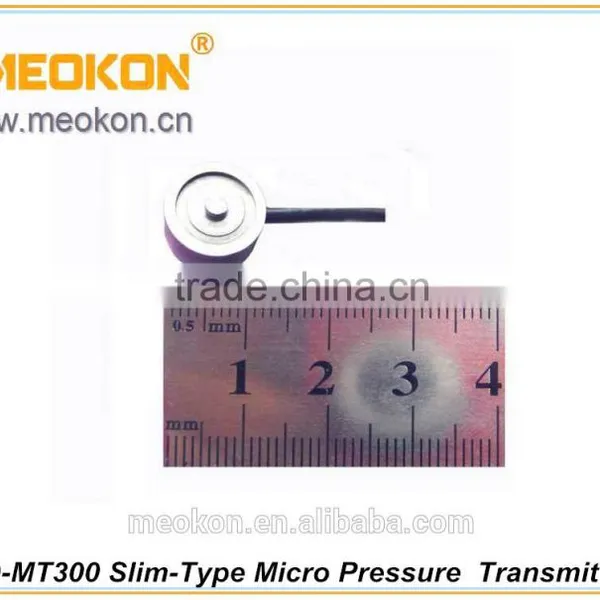

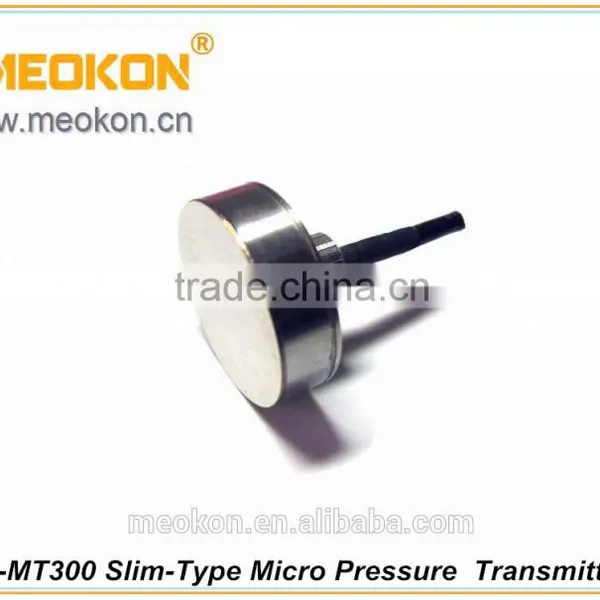

MD-MT300 is slim pressure transmitter, and the min diameter is 10mm, thickness 5mm.
MD-MT micro pressure transmitter is applied to specific environment. The ultrathin and small arethe main characteristics. And the size and range can be customized according to customs’requirements.MD-MT micro pressure transmitter uses micro-machining technology andencapslation to handle with pressure resistance sensor to keep the product excellent dynamic and static qualities.
Micro pressure transmitter mainly is applied in the followed situations: acrodynamics,
aircraft&engine experiment, wind tunnel experiment, hydromechanics experiment, hydraulic
modeling experiment, biomedicine experiment, chemical explosive& nuclear explosive blast
experiment
FEATURES:
- High dynamic frequency response, wide operational temperature range, wide measurement range
- Small size, ultrathin, water-proof, oil-proof
- The size and range of the product can be customized
SPECIFICATION
| Range | 0-5...5...10...25...100...8000Kpa |
| Overload Capacity | 2-4 Times |
| Load Resistance | ≤[(supply voltage-6.5V)/0.02A]Ω |
| Response Time | Selectable |
| Acc. | 0.5%FS 0.25%FS |
| Long-term Stability | Typical:±0.2%FS/year |
Temperature effect on zero |
Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Sensitivity Temperature drift | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Operating Temperature | -30~ 80℃ |
| Compensation Temperature | -10~ 70℃ |
| Storage Temperature | -40~120℃ |
| Electric Protection | Reverse connect protection, En60326 |
| Protection Grade | IP65(DIN) IP67(straight out) |
| Measurement Medium | Gas, water, oil |
| Shell | 304SS |
| Supply | 5V |
| Output Signal | mv(Full range>30mv) |
APPLICATION
Acrodynamics
Hydromechanics Experiment
Biomedicine Experiment
Chemical Explosive & Nuclear Explosive Blast Experiment
Hydraulic Modeling Experiment
Aircraft & Engine Experiment
Wind Tunnel Experiment

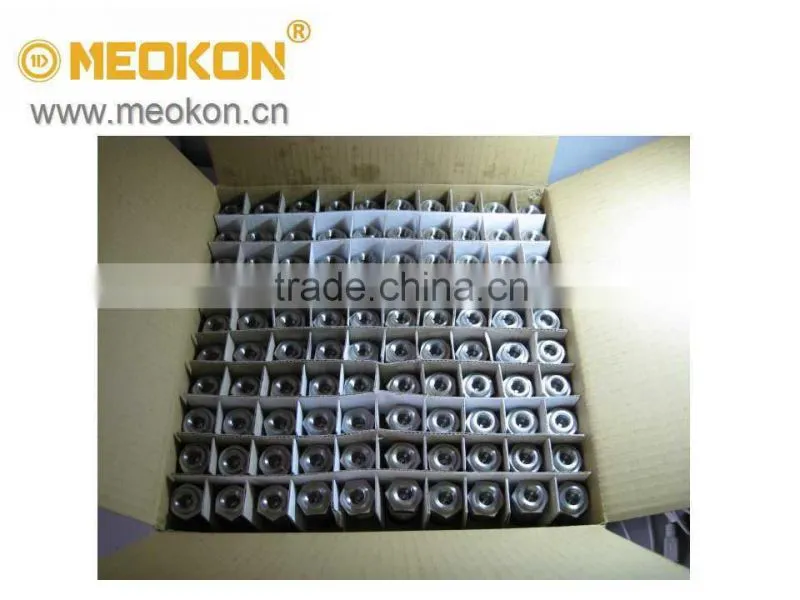

Standard pressure indicator transmitter export packing or follow the customer' requirements
SHIPPING:
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
