Help CenterMD-L100 General Input Type Liquid Lever Transmitter
Related Products
-
MD-L200 Anti-thunder Liquid Lever TransmitterUS$ 1 - 100MOQ: 1 Piece -
MD-L500 Antiseptic Liquid Lever Transmitter Most PopularUS$ 1 - 100MOQ: 1 Piece
-
MD-L600 Mounted Liquid Lever TransmitterUS$ 1 - 100MOQ: 1 Piece
-
MD-MT100 Probe-Shaped Micro Pressure TransmitterUS$ 1 - 100MOQ: 1 Piece
-
MD-MT200 Mounting Type Micro Pressure TransmitterUS$ 1 - 100MOQ: 1 Piece
MD-L is an important application of latter-day pressure sensor to measure liquid level or water depth by hydrostatics theory. It uses high precision sensitive element, precise temperature compensation technology and be equipped with special cable to keep it leakproofness.

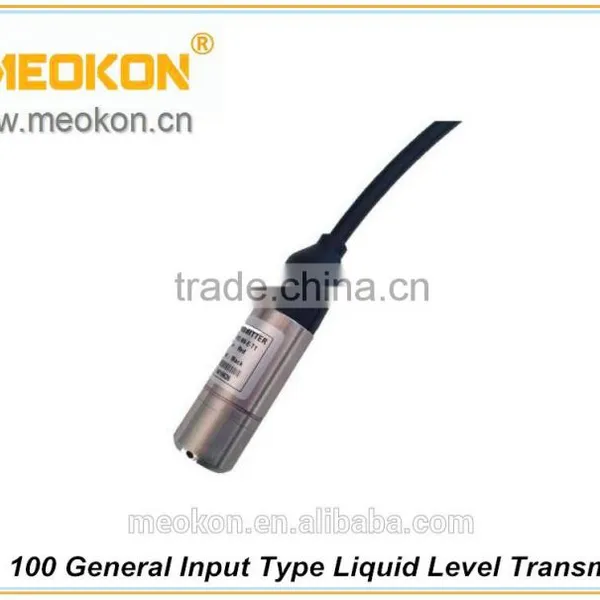

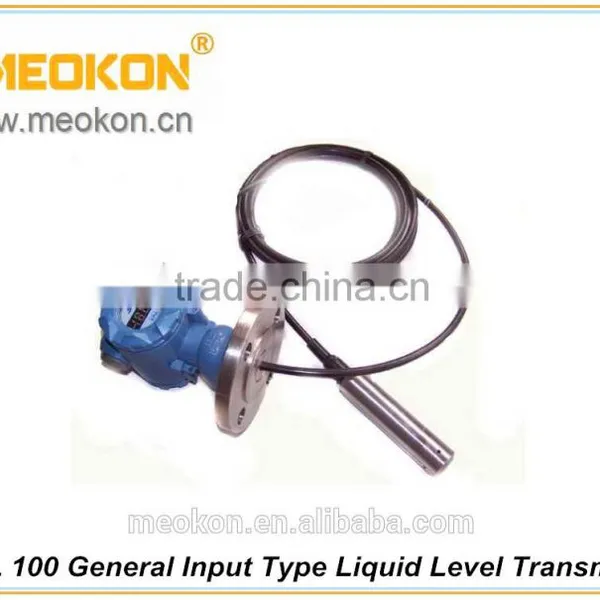

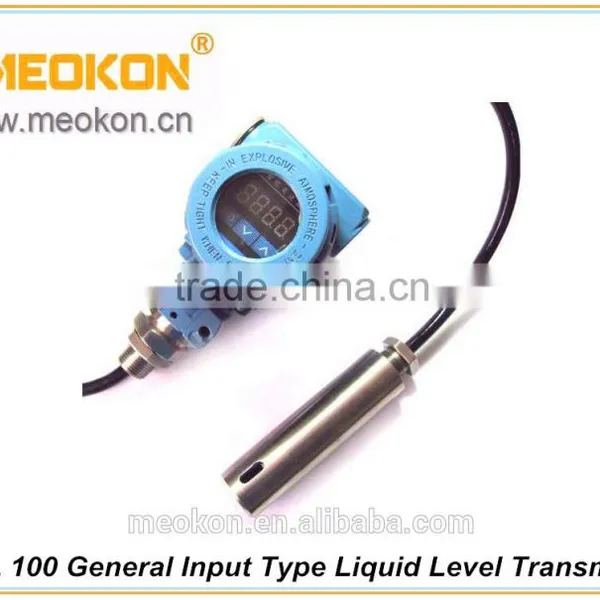

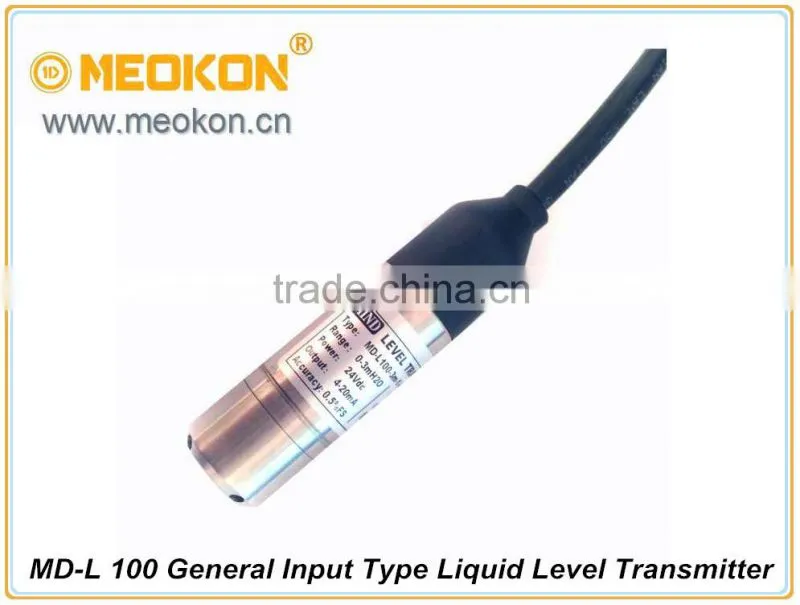

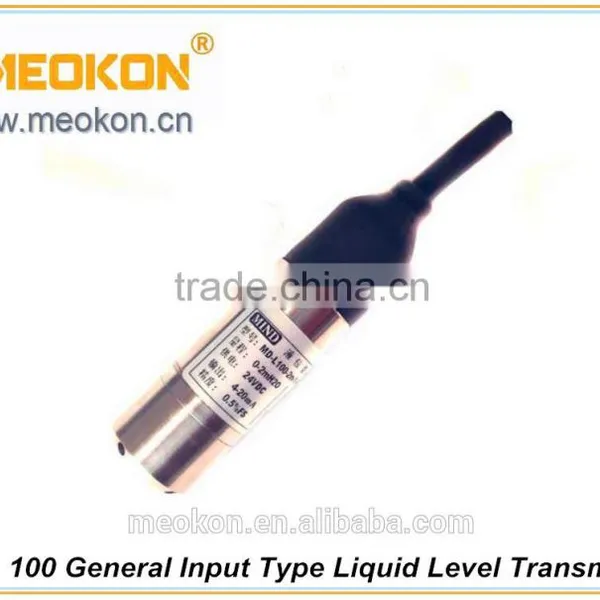

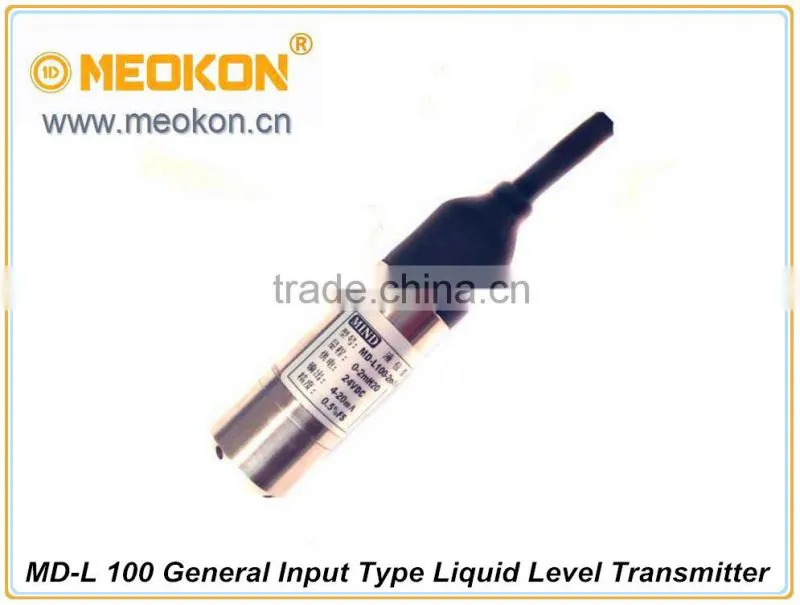

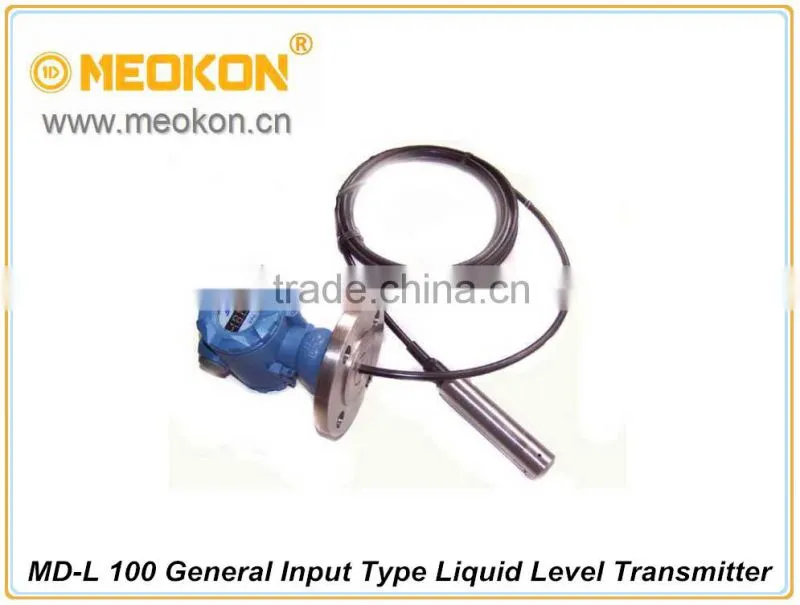

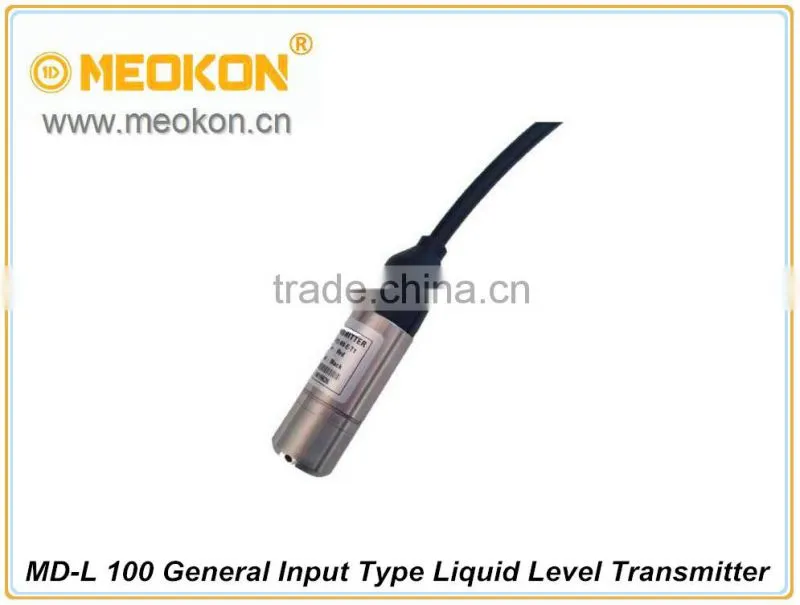

MD-L100 General Input Type Liquid Level Transmitter It uses isolating membrane diffused-silicon chip as its pressure chip to keep high precision, low drift. It is equipped with liquid special cable to adapt to river, leak, pool and water tank.
SPECIFICATION
| Range | 0..1...2...5...8...10...100mH2O |
| Overload Pressure | 200% ; |
| Supporting | 2088 Industrial Shell |
| Transmission Distance | ≥1Km(supply 24V) |
| Acc. | 0.5%FS 0.25%FS |
| Long-term Stability | Typical:±0.1%FS/year |
Temperature effect on zero |
Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Sensitivity Temperature drift | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Operating Temperature | 0~80℃(Customized product to 100 ℃) |
| Compensation Temperature | 0~ 70℃ |
| Storage Temperature | -40~100℃ |
| Electric Protection | Reverse connect protection, Excess voltage protection |
| Protection Grade | IP68 |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | Input Type; Mounted Type(G1/4, G1/2, M20*1.5, selectable) |
| Shell | Stainless Steel |
| Supply | 9-32VDC (Typical24V) |
| Output Signal | 4-20mA |
APPLICATION
- Civil Pool
- Hydrological and Hydraulic System
- Level of other Liquid
- Analysis of river/leak/pool
- Oil Level of Locomotive, oil tanker
- Marine Liquid Level
- Liquid Level of Water Tank
- Water Supply, Drainage of city
PRODUCT SIZE
Standard pressure indicator transmitter export packing or follow the customer' requirements
SHIPPING:
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
MEOKON Sensing Technology (Shanghai) Co., Ltd is a high and new technology enterprise. The leading products: digital pressure gauge, digital pressure switch, intelligent pressure controller, pressure sensor, pressure transmitter, the transmitting instrument. It is a set R&D, design, production and sale in one professional unit.
We have more than 100 types specifications of sensors and transmitting instruments. According to customers' requirements, different kinds of sensors, display control appliances and measuring control systems can be customized. MEOKON' products are mainly used in these fields: air compressor, automobile professions, spurt & hydraulic pressure, water supply system, devoting to a wide range of sensor, transmitting instrument, measuring and controlling appliance, the date acquisition system.
Quality control is rigorously carried out through the whole production process. Our products are qualified for industrial standards, such as CE,CPA. Others, we have a good staff group and enterprise culture: sports meeting, cultural shows, parties, tourism and other activities.
MEOKON Sensing Technology (Shanghai) Co, Ltd sincerely look forward to your cooperation!
