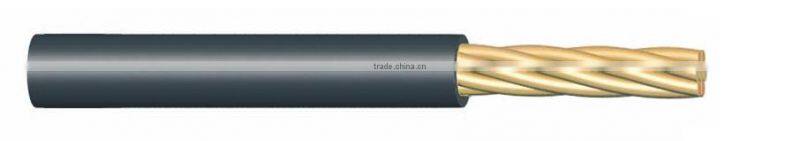

Help CenterCy Control Cable 300/500V Flexible Cu/Hf/Petp/Tcwb/Lszh BS 6500
Related Products
-
Classic 100 CY, Control Cable, Flexible Cu/PVC/PVC/TCWB/PVC, 450/750 V (DIN VDE 0281)US$ 0.5 - 20MOQ: 500 Meters -
Froh2r Control Cable 500V Flexible Cu/PVC/Cwb/PVC CEI 20-22/2US$ 0.1 - 3MOQ: 500 Inches
-
YY LSZH Control Cable, 300/500 V, Low Smoke Zero Halogen Flexible Cu/XLPE/LSZH (BS 6500)US$ 0.8 - 10MOQ: 500 Meters
-
Cu /PVC/ Sta/ PVC Control Cable 1.5mm2 0.6/1Kv IEC 60502-1US$ 1 - 5MOQ: 500 Inches
-
CY LSZH Control Cable, 300/500 V, Flexible CU/HF/PETP/TCWB/LSZH (BS 6500/BS EN 50525-3-11)US$ 0.5 - 2MOQ: 500 Meters

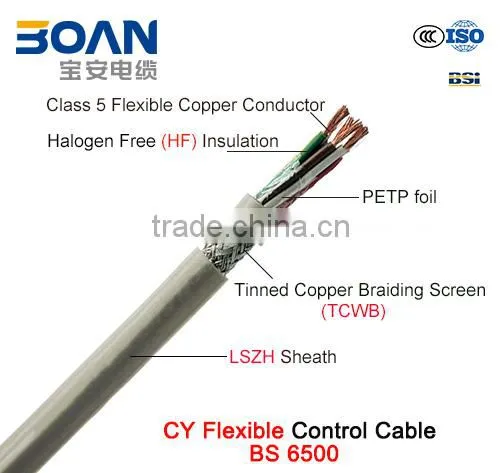

CY Control Cable
Application For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use when temporarily moved, and in conditions of medium mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors.
Standards Generally to BS6500, IEC 60754-1
Technical Data
Conductor Stranded Class 5 copper conductors to EN 60228 Voltage Rating 300/500V
Insulation HF (Halogen Free) to VDE 0207-HI2
Temperature Rating Installation: -15° C to +70° C Operating: -30° C to +70° C
Binding Tape Plastic core wrap
Minimum Bending Radius 10 x overall diameter
Screen LIYCY:
TCWB (Tinned Copper Wire Braid) Core Identification 2 core
- Colour coded 3 cores and above
- Black with white numbers and one Green/Yellow Core.
Sheath LSZH (Low Smoke Zero Halogen) RAL 7001 Acc to VDE 0207-HM2
Sheath Colour Grey
| Nominal Cross Sectional | Conductor Structure | Nominal Thickness of insulation | Nominal Thickness of sheath | Approximate Overall Diameter | Approximate Overall Diameter | Approximate Weight |
| (mm2) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/km) |
| CY Control Cable 300/500 V 2 Cores | ||||||
| 0.5 | 16/0.2 | 0.5 | 0.6 | 4.7 | 6.7 | 45 |
| 0.75 | 24/0.2 | 0.5 | 0.6 | 5.3 | 7.3 | 54 |
| 1 | 32/0.2 | 0.5 | 0.6 | 5.5 | 7.5 | 60 |
| 1.5 | 30/0.25 | 0.5 | 0.6 | 6.1 | 8.1 | 70 |
| 2.5 | 50/0.25 | 0.5 | 0.6 | 7.3 | 9.3 | 104 |
| CY Control Cable 300/500 V 3 Cores | ||||||
| 0.5 | 16/0.2 | 0.5 | 0.6 | 5.1 | 7.1 | 53 |
| 0.75 | 24/0.2 | 0.5 | 0.6 | 5.6 | 7.6 | 65 |
| 1 | 32/0.2 | 0.5 | 0.6 | 5.8 | 7.8 | 73 |
| 1.5 | 30/0.25 | 0.5 | 0.6 | 6.5 | 8.5 | 90 |
| 2.5 | 50/0.25 | 0.5 | 0.6 | 7.9 | 9.9 | 140 |
| CY Control Cable 300/500 V 4 Cores | ||||||
| 0.5 | 16/0.2 | 0.5 | 0.6 | 5.6 | 7.6 | 63 |
| 0.75 | 24/0.2 | 0.5 | 0.6 | 6.1 | 8.1 | 77 |
| 1 | 32/0.2 | 0.5 | 0.6 | 6.3 | 8.3 | 89 |
| 1.5 | 30/0.25 | 0.5 | 0.6 | 7.1 | 9.1 | 108 |
| 2.5 | 50/0.25 | 0.5 | 0.6 | 8.7 | 10.7 | 173 |
| 4 | 56/0.3 | 0.5 | 0.6 | 10.4 | 12.4 | 236 |
| 6 | 84/0.3 | 0.5 | 0.8 | 12.1 | 14.1 | 339 |
| CY Control Cable 300/500 V 5 Cores | ||||||
| 0.5 | 16/0.2 | 0.5 | 0.6 | 6 | 8 | 76 |
| 0.75 | 24/0.2 | 0.5 | 0.6 | 6.6 | 8.6 | 91 |
| 1 | 32/0.2 | 0.5 | 0.6 | 6.9 | 8.9 | 105 |
| 1.5 | 30/0.25 | 0.5 | 0.6 | 7.7 | 9.7 | 125 |
| 2.5 | 50/0.25 | 0.5 | 0.6 | 9.3 | 11.3 | 206 |
| CY Control Cable 300/500 V 7 Cores | ||||||
| 0.75 | 24/0.2 | 0.5 | 0.6 | 7.1 | 9.1 | 115 |
| 1 | 32/0.2 | 0.5 | 0.6 | 7.7 | 9.7 | 139 |
| 1.5 | 30/0.25 | 0.5 | 0.6 | 8.6 | 10.6 | 160 |
| 2.5 | 50/0.25 | 0.5 | 0.6 | 10.1 | 12.1 | 267 |
| CY Control Cable 300/500 V 12 Cores | ||||||
| 0.5 | 16/0.2 | 0.5 | 0.6 | 8.5 | 10.5 | 140 |
| 0.75 | 24/0.2 | 0.5 | 0.6 | 9.4 | 11.4 | 177 |
| 1 | 32/0.2 | 0.5 | 0.6 | 9.7 | 11.7 | 207 |
| 1.5 | 30/0.25 | 0.5 | 0.6 | 11.1 | 13.1 | 279 |
| CY Control Cable 300/500 V 18 Cores | ||||||
| 0.75 | 24/0.2 | 0.5 | 0.6 | 10.9 | 12.9 | 250 |
| 1 | 32/0.2 | 0.5 | 0.6 | 11.7 | 13.7 | 295 |
