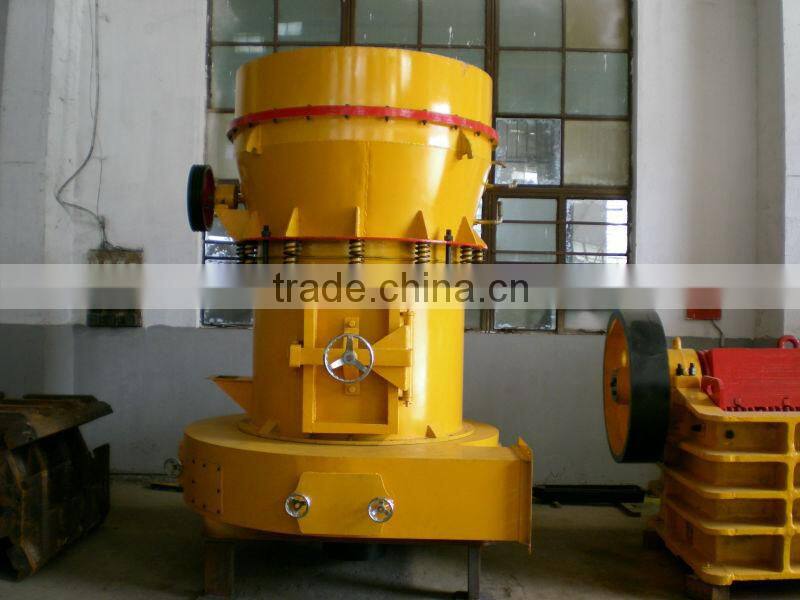

ZOONYEE 3 ring professional mining raymond mill for sale
introduction:
This machne is applicable to the grinding and processin of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 Mohs and humidity less than 6% in mining,construction ,chemical industry and metallurgy,such as barite,calcite,feldspar,talcum,marble ,limestone,clay ,glass.The fineness of the finished product can be adjusted from 100 mess to 325 mesh according to requirements.
Structural characteristics:
The whole grinding mill is of a standing structure ,It featues small occupying space and strong integration capability.It can form an indpendent production system from the lump materials,crushing to finished powder and packaging.
All the finished particles have a good uniformity of fineness,with passing screen rate as high as 98%.This is what other machine can not reach.
The machine adopts electromagnetic vibrating feeder,which ensures even and regular feeding.It is easy to adjust,small in dimension,light in weight,with lower oil and power consumption and easy maintenance.
The electricity system of the mill is centrally controlled,so no people are needed in th operating room.
Specifications:
| Model | 3R2714 | 4R3216 | 5R4119 | 6R4525 |
| Mill roller quantity(piece) | 3 | 4 | 5 | 6 |
| Feeding size(mm) | 15-20 | 20-25 | 20-25 | 25-30 |
| Final product size(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 |
| Capacity(t/h) | 2-10 | 4-45 | 8-78 | 16-176 |
| Speed of centre shaft(r/min) | 150 | 130 | 105 | 82 |
| Diameter of Mill ring(mm) | 930 | 1073 | 1400 | 1770 |
| Diameter of mill roller(mm) | 270 | 320 | 410 | 450 |
| Height of mill roller(mm) | 140 | 160 | 190 | 250 |
| Power(kw) | 22 | 37 | 75 | 132 |

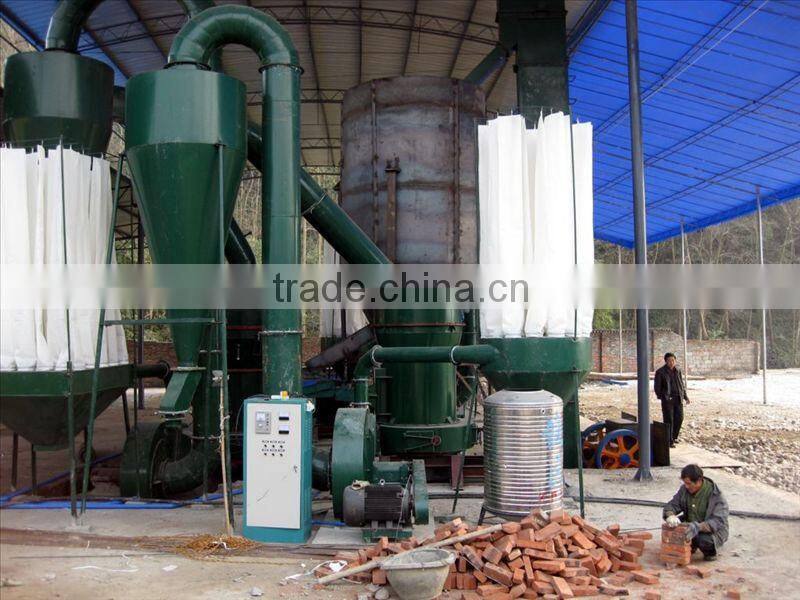

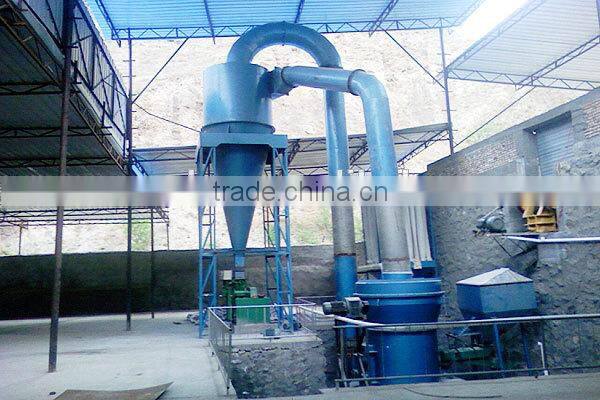

pictures:
After-sales service of raymond mill:
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
Introduction of our company:
Zhengzhou Zoonyee mining machinery Co.,Ltd has been specialized in this field of stone crushing equipment for decade years.We have many experts and professional technical personnels.We also do technical communication and cooperation with large construction waste treatment equipment manufacturers in Europe.The company insists to innovate and continues to develop products with international leading technology and independent intellectual property rights.Zoonyee company pays attention to the development of new products and new technology,so far the company has won more than 10 invention patents and new national utility patents.
Besides expansion on domestic market,our products have also been exported to Canada, Russia, India,Mongolia,South Africa,Central Asia,Western Asia and other countries and regions.
Our eternal objective is to create the biggest value for our customers.
Our product scope
Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
Mill:ball mill ,raymond mill.
rotary Kiln
Hoist
Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill
