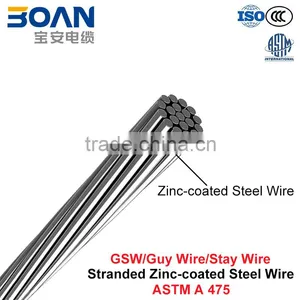

Gsw, Guy Wire, Stay Wire, Steel Wire, Zinc-coated Steel Wire, Stranded Galvanized Steel Wire (ASTM A 475)
US$ 0.1 - 5
MOQ: 5000 Meters
Key Specifications
Get Latest Price
Steel Grade:
Zinc coated
Standard:
ASTM
Wire Gauge:
1.04-4.55 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gsw, Stay Wire, Guy Wire, Stranded Galvanized Steel Wire (BS 183)US$ 1 - 5MOQ: 5000 Meters -
ACSR/AW, Aluminium Conductors Aluminium Clad Steel Reinforced (IEC 61089)US$ 1.01 - 10MOQ: 5000 Meters
-
ACSR/AW, Aluminium Conductors Aluminium Clad Steel Reinforced (UNE 21018)US$ 0.3 - 3MOQ: 5000 Meters
-
ACSR/AW, Aluminium Conductors Aluminium Clad Steel Reinforced (ASTM B 549)US$ 1.17 - 9MOQ: 5000 Meters
-
ACSR/AC, Aluminium Conductors Aluminium Clad Steel Reinforced (AS 3607)US$ 1.79 - 8MOQ: 5000 Meters
Steel Grade
Zinc coated
Standard
ASTM
Wire Gauge
1.04-4.55 mm
Place of Origin
Jiangsu, China
Type
Galvanized
Application
Rope
Alloy Or Not
Non-alloy
Model Number
GSW
Brand Name
BOAN
Product Description

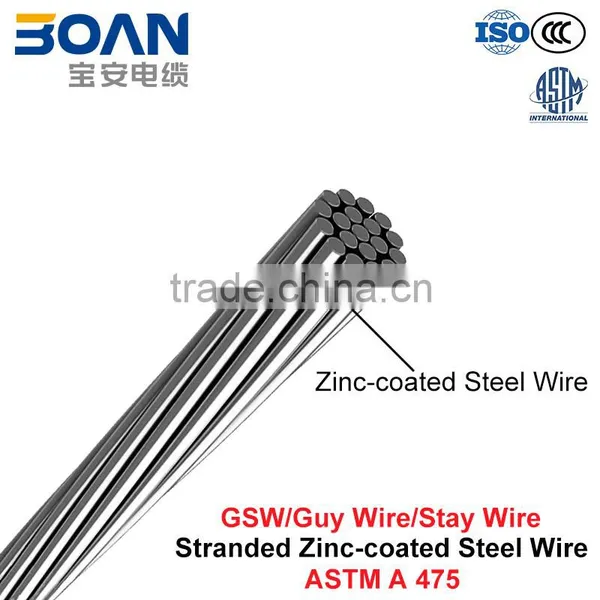

Gsw, Guy Wire, Stay Wire, Steel Wire, Stranded Galvanized Steel Wire (ASTM A 475)
1. Standard
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays—Bare overhead
2. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
3. Specification:
See the table below.
| Number / Dia. of Wire | Calculated Cross Sect. Area | Approx. Overall Diameter | Approx. Weight | Calculated Breaking Load | Standard Length per Reel | ||||
| Common Grade | Siemen- Martin Grade | High Strength Grade | Extra High Strength Grade | ||||||
| Inch | No. / mm | mm² | mm | kg/km | kN | m | |||
| 1/8 | 7 / 1.04 | 5.9 | 3.12 | 47 | 2.402 | 4.048 | 5.916 | 8.140 | 2,000 |
| 5/32 | 7 / 1.32 | 9.6 | 3.96 | 76 | 3.870 | 6.539 | 9.519 | 13.078 | 2,000 |
| 3/16 | 7 / 1.57 | 13.6 | 4.71 | 107 | 5.115 | 8.452 | 12.677 | 17.748 | 2,000 |
| 7/32 | 3 / 2.64 | 16.4 | 5.69 | 131 | 6.228 | 10.409 | 15.569 | 21.796 | 2,000 |
| 7/32 | 7 / 1.83 | 18.4 | 5.49 | 146 | 6.850 | 11.387 | 17.126 | 24.020 | 2,000 |
| 1/4 | 3 / 3.05 | 21.9 | 6.57 | 174 | 8.274 | 13.523 | 21.040 | 29.981 | 2,000 |
| 1/4 | 7 / 2.03 | 22.7 | 6.09 | 180 | 8.452 | 14.012 | 21.129 | 29.581 | 2,000 |
| 9/32 | 3 / 3.3 | 25.7 | 7.11 | 204 | 9.252 | 15.035 | 23.398 | 33.362 | 2,000 |
| 9/32 | 7 / 2.36 | 30.6 | 7.08 | 243 | 11.432 | 18.905 | 28.469 | 39.812 | 2,000 |
| 5/16 | 3 / 3.68 | 31.9 | 7.93 | 254 | 11.076 | 18.193 | 28.246 | 40.479 | 2,000 |
| 5/16 | 7 / 2.64 | 38.3 | 7.92 | 304 | 14.234 | 23.798 | 35.586 | 49.820 | 2,000 |
| 3/8 | 3 / 4.19 | 41.4 | 9.03 | 329 | 14.813 | 24.732 | 37.187 | 52.489 | 2,000 |
| 3/8 | 7 / 3.05 | 51.1 | 9.15 | 405 | 18.905 | 30.915 | 48.040 | 68.503 | 2,000 |
| 7/16 | 7 / 3.68 | 74.5 | 11.04 | 590 | 25.355 | 41.591 | 64.499 | 92.523 | 2,000 |
| 1/2 | 7 / 4.19 | 96.5 | 12.57 | 765 | 32.917 | 53.823 | 83.627 | 119.657 | 2,000 |
| 1/2 | 19 / 2.54 | 96.3 | 12.70 | 765 | 33.895 | 56.492 | 84.961 | 118.768 | 2,000 |
| 9/16 | 7 / 4.78 | 125.6 | 14.34 | 996 | 42.703 | 69.837 | 108.981 | 155.688 | 2,000 |
| 9/16 | 19 / 2.87 | 122.9 | 14.35 | 976 | 42.881 | 71.616 | 107.202 | 149.905 | 2,000 |
| 5/8 | 7 / 5.26 | 152.1 | 15.78 | 1,206 | 51.599 | 84.961 | 131.667 | 188.605 | 2,000 |
| 5/8 | 19 / 3.18 | 150.9 | 15.90 | 1,198 | 48.930 | 80.513 | 124.995 | 178.819 | 2,000 |
| 3/4 | 19 / 3.81 | 216.6 | 19.05 | 1,720 | 71.172 | 116.543 | 181.487 | 259.331 | 2,000 |
| 7/8 | 19 / 4.5 | 302.2 | 22.50 | 2,400 | 97.416 | 159.691 | 248.211 | 354.523 | 2,000 |
| 1 | 19 / 5.08 | 385.1 | 25.40 | 3,058 | 127.664 | 209.066 | 325.610 | 464.839 | 1,000 |
| 1 | 37 / 3.63 | 382.9 | 25.41 | 3,042 | 125.885 | 205.508 | 319.827 | 456.832 | 1,000 |
| 1 1/8 | 37 / 4.09 | 486.1 | 28.63 | 3,862 | 160.136 | 262.000 | 407.457 | 581.827 | 1,000 |
| 1 1/4 | 37 / 4.55 | 601.6 | 31.85 | 4,780 | 198.391 | 324.720 | 505.318 | 721.502 | 1,000 |
