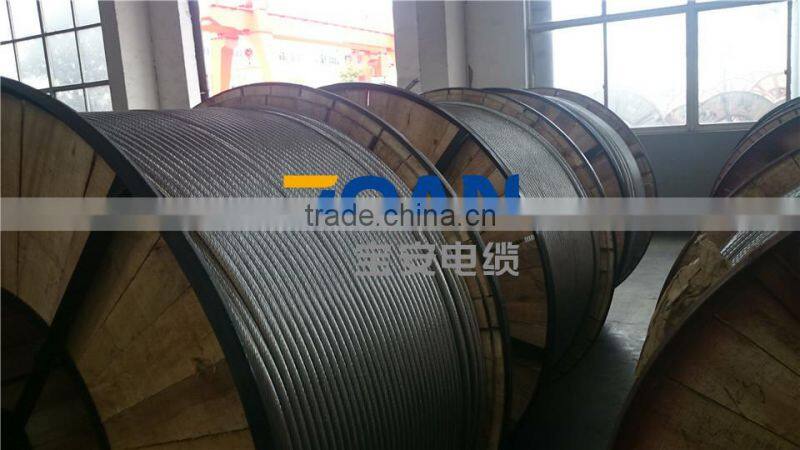

Gsw, Stay Wire, Guy Wire, Stranded Galvanized Steel Wire (BS 183)
US$ 1 - 5
MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOAN
Model Number:
SWG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ACSR/AW, Aluminium Conductors Aluminium Clad Steel Reinforced (IEC 61089)US$ 1.01 - 10MOQ: 5000 Meters -
ACSR/AW, Aluminium Conductors Aluminium Clad Steel Reinforced (UNE 21018)US$ 0.3 - 3MOQ: 5000 Meters
-
ACSR/AW, Aluminium Conductors Aluminium Clad Steel Reinforced (ASTM B 549)US$ 1.17 - 9MOQ: 5000 Meters
-
ACSR/AC, Aluminium Conductors Aluminium Clad Steel Reinforced (AS 3607)US$ 1.79 - 8MOQ: 5000 Meters
-
AAC Conductor, All Aluminium Conductor (DIN 48201)US$ 0.15 - 10MOQ: 5000 Meters
Place of Origin
Jiangsu, China
Brand Name
BOAN
Model Number
SWG
Surface Treatment
Galvanized
Galvanized Technique
Hot Dipped Galvanized
Type
Flat Wire
Function
Other, Stay/Guy
Wire Gauge
1.8mm-4.75mm
Product Description
Gsw, Stay wire, Guy Wire, Stranded Galvanized Steel Wire (BS 183)
1. Standard ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR) BS183: Specification for General Purpose Galvanized Steel Wire Strand BS 50189: Conductors ofr overhead lines-Zinc coated steel wires IEC 60888: Zinc-coated steel wires for stranded conductors DIN 48200: Wires for stranded conductors JIS G 3537: Zinc-coated steel wire strands AS 1222.1: Steel conductors and stays—Bare overhead
2. Application Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
3. Specification:See the table below.
| Construction Number of wires/wire diameter | Approximate strand diameter | Minimum breaking load of strand | Approx. mass | ||||||
| Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 | |||
| mm | kN | kN | kN | kN | kN | kN | kN | kg/km | |
| 3/1.80 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 |
| 3/2.65 | 5.7 | 5.80 | 7.95 | - | - | - | -- - | - | 130 |
| 3/3.25 | 7.0 | 8.70 | 11.95 | - | - | - | - | - | 195 |
| 3/4.00 | 8.6 | 13.20 | 18.10 | -- | - | - | - | - | 295 |
| 4/1.80 | 4,4 | 3.55 | 4.90 | - | - | - | - | 80 | |
| 4/2.65 | 6.4 | 7.70 | 10.60 | - | - | - | - | - | 172 |
| 4/3.25 | 7.9 | 11.60 | 15.90 | - | - | - | - | - | 260 |
| 4/4.00 | 9.7 | 17.60 | 24.10 | 35.20 | - | - | - | - | 390 |
| 5/1.50 | 4.1 | 3.10 | 4.24 | 6.18 | - | - | - | - | 69 |
| 5/1.80 | 4.9 | 4.45 | 6.10 | 8.90 | - | - | - | - | 95 |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.30 | - -- | - | - | 220 | |
| 5/3.25 | 8.8 | 14.50 | 19.90 | 29.00 | -- | - | - | - | 320 |
| 5/4.00 | 10.8 | 22.00 | 30.15 | 43.95 | - | - | - | - | 490 |
| 7/0.56 | 1,7 | 0.60 | 0.83 | 1.20 | - | 1.70 | 1.98 | 2.24 | 14 |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | 2.75 | 3.19 | 3.60 | 28 | |
| 7/0.85 | 2.6 | 1.39 | 1.90 | 2.80 | - | 3.95 | 4.57 | 5.15 | 31 |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3,10 | 4.45 | 5.12 | 5.80 | 35 | |
| 7/1.00 | 3.0 | 1.92 | 2.64 | 3.85 | - | 5.50 | 6.32 | 7.15 | 43 |
| 7/1.25 | 3.8 | 3.01 | 4.10 | 6.00 | - | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14.00 | 84 |
| 7/1.60 | 4.8 | 4.90 | 6.75 | 9.85 | 11.95 | 14.10 | 16.20 | 18.30 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.80 | 20.50 | 23.20 | 140 |
| 7/2.00 | 6.0 | 7.70 | 10.55 | 15.40 | - | 22.00 | 25.30 | 38.60 | 170 |
| 7/2.36 | 7.1 | 10.70 | 14.70 | 21.40 | - | 30.60 | 3520 | 39.80 | 240 |
| 7/2.65 | 8.0 | 13.50 | 18.50 | 27.00 | 38.60 | 44.40 | 50.20 | 300 | |
| 7/3.00 | 9,0 | 17.30 | 23.75 | 34.65 | - | 49.50 | 56.90 | 64.30 | 392 |
| 7/3.15 | 9.5 | 19.10 | 26.20 | 38.20 | - | 54.55 | 62.75 | 70.90 | 430 |
| 7/3.25 | 9.8 | 20.30 | 27.85 | 40.65 | - | 58.05 | 66,80 | 75.50 | 460 |
| 7/3.65 | 11.0 | 25.60 | 35.15 | 51.25 | 73.25 | 84.20 | 95.20 | 570 | |
| 7/4.00 | 12.0 | 30.90 | 42.20 | 61.60 | - | 88,00 | 101.0 | 114.0 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.50 | - | 99.30 | 114.0 | 129.0 | 780 |
| 7/4.75 | 14.0 | 43.40 | 59.45 | 86,80 | - | 124.0 | 142.7 | 161.3 | 970 |
| 19/1.00 | 5.0 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.40 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7.0 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8.0 | 13.37 | 18.34 | 26.75 | - | 38.20 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10.0 | 20.90 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.60 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.80 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15.0 | 47.00 | 64.50 | 94.00 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.80 | 90.27 | 131.6 | 159.9 | 188.0 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20.0 | 83.55 | 114.6 | 167.1 | 203.0 | 238.7 | 274,6 | 310.4 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.6 | 235.7 | 286.0 | 336.7 | 387.2 | 437.7 | 2630 |
