AAC Conductor, Type ACP Wire, Greased All Aluminium Conductor (GOST 839-80)
US$ 0.15 - 21
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boan
Model Number:
AAC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BCC, Bare Copper Stranded Conductor (BS EN 13602)US$ 1 - 30MOQ: 500 Meters -
AACSR, Aluminium Alloy Conductors Steel Reinforced (NF C 34-125)US$ 1.79 - 14.6MOQ: 5000 Meters
-
AACSR, Aluminium Alloy Conductors Steel Reinforced (DIN 48206)US$ 1.79 - 8MOQ: 5000 Meters
-
ACSR, Aluminium Conductors Steel Reinforced (BS 215-2)US$ 1.18 - 6.5MOQ: 5000 Meters
-
AACSR, Aluminium Alloy Conductors Steel Reinforced (ASTM B711)US$ 0.9 - 11MOQ: 5000 Meters
Place of Origin
Jiangsu, China
Brand Name
Boan
Model Number
AAC
Type
Low Voltage
Application
Overhead
Conductor Material
Aluminum
Product Description

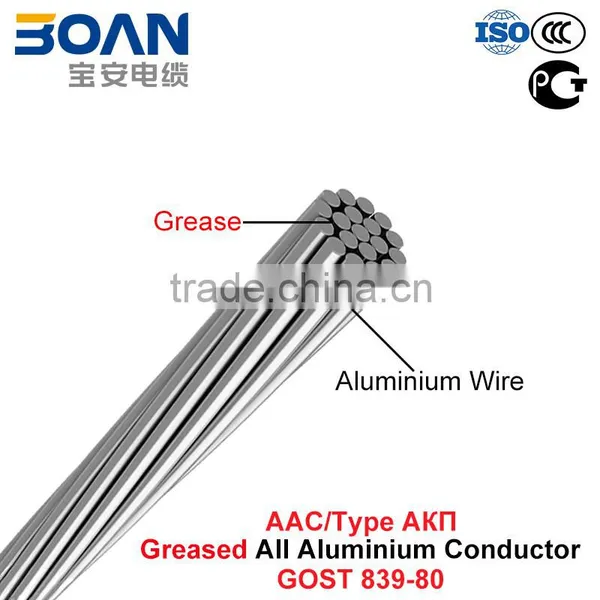

AAC Conductor, Type ACP Wire, Greased All Aluminium Conductor (GOST 839-80)
AAC conductor is widely used in power transmission lines with various voltage levels.
Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
Specification:
All aluminium conductor (AAC)
Relative manufacturing standards:
GOST 839-80
Construction:
Aluminum alloy 1350-H-19 wires. Additional corrosion protection is available through the application of grease to the corrosion or infusion of the complete cable with grease.
| Nominal Corss-section | Number of Wires | Wire Diameter | Calculated Cross-section | Overall Diameter | D.C. Resistance at 20 | Min. Breaking Load | Conductor Weight | Grease Weight |
| mm2 | mm | mm2 | mm | Ω/km | kg/km | kg/km | ||
| 10 | 7 | 1,35 | 10,0 | 4,05 | 2,8631 | 1950 | 27,4 | - |
| 16 | 7 | 1,70 | 15,9 | 5,10 | 1,8007 | 3021 | 43,0 | 0,5 |
| 25 | 7 | 2,13 | 24,9 | 6,40 | 1,1498 | 4500 | 68,0 | 0,5 |
| 35 | 7 | 2,50 | 34,3 | 7,50 | 0,8347 | 5913 | 94,0 | 0,5 |
| 40 | 7 | 2,70 | 40,0 | 8,09 | 0,7157 | 6800 | 109,4 | - |
| 50 | 7 | 3,00 | 49,5 | 9,00 | 0,5784 | 8198 | 135,0 | 0,5 |
| 63 | 7 | 3,39 | 63,0 | 10,16 | 0,4544 | 10390 | 172,3 | - |
| 70 | 7 | 3,55 | 69,3 | 10,70 | 0,4131 | 11288 | 189,0 | 1,0 |
| 95 | 7 | 4,10 | 92,4 | 12,30 | 0,3114 | 14784 | 252,0 | 1,0 |
| 100 | 19 | 2,59 | 100,0 | 12,94 | 0,2877 | 17000 | 274,9 | - |
| 120 | 19 | 2,80 | 117,0 | 14,00 | 0,2459 | 19890 | 321,0 | 16 |
| 125 | 19 | 2,89 | 125,0 | 14,47 | 0,2301 | 21250 | 343,6 | - |
| 150 | 19 | 3,15 | 148,0 | 15,80 | 0,1944 | 24420 | 406,0 | 20 |
| 160 | 19 | 3,27 | 160,0 | 16,37 | 0,1798 | 26400 | 439,8 | - |
| 185 | 19 | 3,50 | 182,8 | 17,50 | 0,1574 | 29832 | 502,0 | 25 |
| 200 | 19 | 3,66 | 200,0 | 18,30 | 0,1438 | 32000 | 549,7 | - |
| 240 | 19 | 4,00 | 238,7 | 20,00 | 0,1205 | 38192 | 655,0 | 33 |
| 250 | 19 | 4,09 | 250,0 | 20,47 | 0,1150 | 40000 | 687,1 | - |
| 300 | 37 | 3,15 | 288,3 | 22,10 | 0,1000 | 47569 | 794,0 | 54 |
| 315 | 37 | 3,29 | 315,0 | 23,05 | 0,0915 | 51970 | 867,5 | - |
| 350 | 37 | 3,45 | 345,8 | 24,20 | 0,0833 | 57057 | 952,0 | 65 |
| 400 | 37 | 3,66 | 389,2 | 25,60 | 0,0740 | 63420 | 1072,0 | 73 |
| 450 | 37 | 3,90 | 449,1 | 27,30 | 0,0642 | 71856 | 1206,0 | 84 |
| 500 | 37 | 4,15 | 500,4 | 29,10 | 0,0576 | 80000 | 1378,0 | 94 |
| 550 | 61 | 3,37 | 544,0 | 30,30 | 0,0529 | 89760 | 1500,0 | 117 |
| 560 | 37 | 4,39 | 560,0 | 30,73 | 0,0531 | 89600 | 1542,2 | - |
| 600 | 61 | 3,50 | 586,8 | 31,50 | 0,0491 | 95632 | 1618,0 | 126 |
| 630 | 61 | 3,63 | 630,0 | 32,64 | 0,0458 | 100800 | 1738,4 | - |
| 650 | 61 | 3,66 | 641,7 | 32,90 | 0,0450 | 104575 | 1771,0 | 138 |
| 700 | 61 | 3,80 | 691,7 | 34,20 | 0,0417 | 112725 | 1902,0 | 149 |
| 710 | 61 | 3,85 | 710,0 | 34,65 | 0,0406 | 113600 | 1959,2 | - |
| 750 | 61 | 3,95 | 747,4 | 35,60 | 0,0386 | 119584 | 2062,0 | 161 |
