BCC, Bare Copper Stranded Conductor (BS EN 13602)
US$ 1 - 30
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DingAn or OEM
Model Number:
BCC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AACSR, Aluminium Alloy Conductors Steel Reinforced (NF C 34-125)US$ 1.79 - 14.6MOQ: 5000 Meters -
AACSR, Aluminium Alloy Conductors Steel Reinforced (DIN 48206)US$ 1.79 - 8MOQ: 5000 Meters
-
ACSR, Aluminium Conductors Steel Reinforced (BS 215-2)US$ 1.18 - 6.5MOQ: 5000 Meters
-
AACSR, Aluminium Alloy Conductors Steel Reinforced (ASTM B711)US$ 0.9 - 11MOQ: 5000 Meters
-
AAC Conductor, Overhead Bare Conducotr, All Aluminium Conductor (IEC 61089)US$ 0.13 - 7MOQ: 1000 Meters
Place of Origin
Jiangsu, China
Brand Name
DingAn or OEM
Model Number
BCC
Insulation Material
Other, Bare cable
Type
Low Voltage
Application
Overhead
Conductor Material
Copper
Product Description

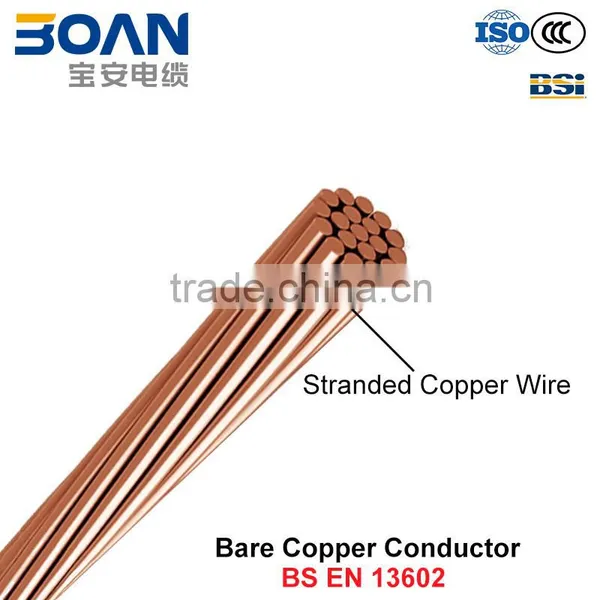

BCC, Bare Copper Class 2 Conductor (BS EN 13602)
Applications
For use in electrical grounding systems and on insulators for overhead transmission and distribution applications. Stranded conductors offer greater flexibility than solid.
Cable Standards
BS EN 13602, BS EN 60228
Construction
Conductor
Class 2 annealed stranded copper conductor according to BS EN 60228 (previously BS 6360)
|
NOMINAL CROSS SECTIONAL AREA |
NO. OF WIRES | DIAMETER OF WIRES | DIAMETER OF CONDUCTORS | Minimum Elongation | Minimum Tensile Strength | NOMINAL WEIGHT | MAXIMUM DC RESISTANCE AT 20°C |
| mm2 | mm | mm | % | N/mm2 | kg/km | ohms/km | |
| 1.5 | 7 | 0.53 | 1.59 | 24 | 200 | 13 | 12.1 |
| 2.5 | 7 | 0.67 | 2.01 | 24 | 200 | 21 | 7.41 |
| 4 | 7 | 0.85 | 2.55 | 24 | 200 | 35 | 4.61 |
| 6 | 7 | 1.05 | 3.15 | 26 | 200 | 52 | 3.08 |
| 10 | 7 | 1.35 | 3.85 | 26 | 200 | 87 | 1.83 |
| 16 | 7 | 1.74 | 4.8 | 28 | 200 | 137 | 1.15 |
| 25 | 7 | 2.19 | 5.8 | 28 | 200 | 215 | 0.727 |
| 35 | 7 | 2.62 | 6.9 | 28 | 200 | 300 | 0.524 |
| 50 | 10 | 2.62 | 8.2 | 28 | 200 | 410 | 0.387 |
| 70 | 14 | 2.62 | 9.7 | 28 | 200 | 595 | 0.268 |
| 95 | 19 | 2.62 | 11.4 | 28 | 200 | 820 | 0.193 |
| 120 | 24 | 2.62 | 13.1 | 28 | 200 | 1040 | 0.153 |
| 150 | 30 | 2.62 | 14.2 | 28 | 200 | 1280 | 0.124 |
| 185 | 37 | 2.62 | 15.8 | 28 | 200 | 1600 | 0.0991 |
| 240 | 48 | 2.62 | 18.6 | 28 | 200 | 2100 | 0.0754 |
| 300 | 58 | 2.62 | 20.4 | 28 | 200 | 2700 | 0.0601 |
| 400 | 55 | 3 | 26 | 33 | 200 | 3400 | 0.047 |
| 500 | 70 | 3 | 30 | 33 | 200 | 4400 | 0.0366 |
