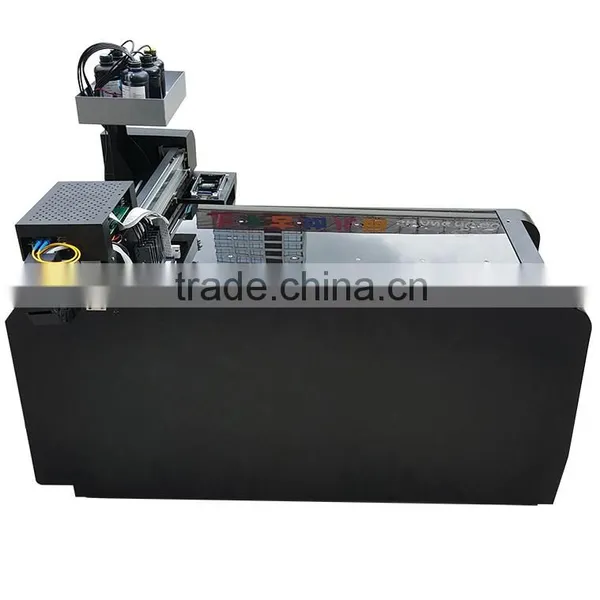

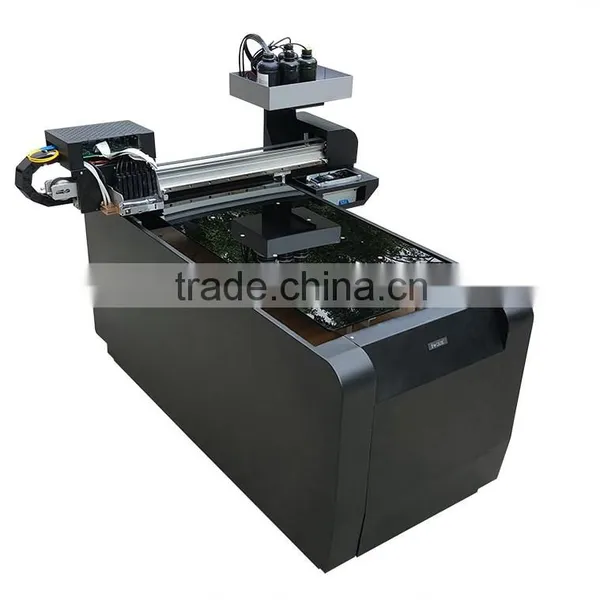

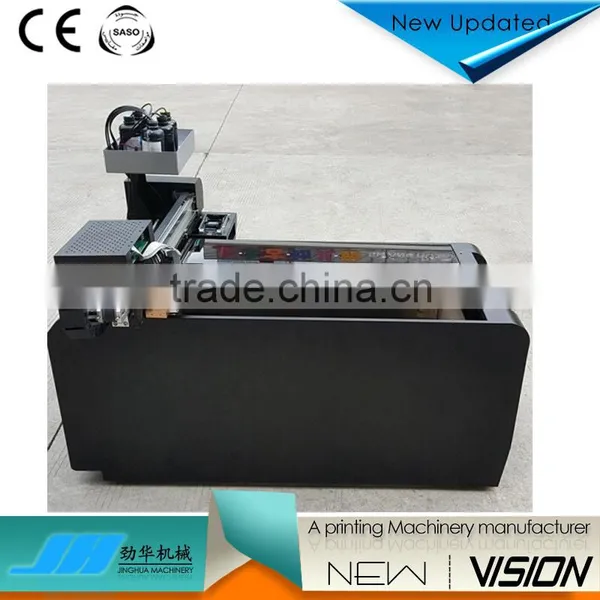

For phone case printing Frigga- Jet UV a2 size flatbed printing machine
Product Description
Sapphire-Jet eco solvent printer china which is a multi functional LED UV flatbed printer that created by Focus industrial co.,ltd. The uv
led printer was built with industrial configuration as thicken aluminum profile, water cyculation cooling system, 100W automatic detect UV Curing
system... 6 color and max. 5760 dpi printing resolution. Can print on bend, cylinder objects, balls and bottles. Output with good 3D texture printing
result...
| Model | Sapphire-Jet A4 flatbed printing machine | |
| LED-UV Function | UV lamp system | 6 Power degree adjustable system |
| UV Power | 100W | |
| UV lamp life time | 50000hours | |
| UV light wavelength | 390-400nm | |
| Light power | 500mw/w | |
| Cooling type | Water circulation | |
| Cooling adjustment | Automatic on/off between 25-30c | |
| Control Software | FocusRIP-UV V3.5.0 | |
| Repeat printing precision | Overlap small than 0.1mm | |
| Head maintain | Head clean during/after printing, Keep-wet system when idle. | |
| Ink system | Ink damper refill system | |
| Max. printing size | A4+: 210mm*300mm | |
| Print head | L800 with 1440 nozzles | |
| Print color | CMYK+WW | |
| Print direction | Unidirection / Bidirection | |
| Print speed | A4(1440dpi)/ 80s | |
| Max. media thickness | 15CM | |
| Max. media weight | 15KG | |
| Max. printing resolution | 5760dpi*1440dpi | |
| Ink volume | 150ML | |
| Ink type | UV environmentally ink | |
| Height adjustable | Manual / Automatic | |
| Print head protection | Intellective automatic detect | |
| Working power | 110-220V 50-60HZ 75W | |
| Interface | USB2.0 /IEEE1394 | |
| System require | Windows XP / Vista/ Win7 / MAC I Linus | |
| Working enviroment | 25-30C, 50% Humidity, Dust free | |
| Net weight/Gross weight | 40KG/50KG | |
| Printer size | 60CM*48CM*50CM | |
| Packing size | 70CM*58CM*55CM | |
Online video demo of flatbed printing machine : http://youtu.be/lyJm4KXnGmQ
Catalog download of flatbed printing machine :
Technical features
1.Flatbed printing machine has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design.
The new design reduces the environmental impact on equipment.
2. Fast printing speed by print on A4 size with full color of flatbed printing machine only need 64 seconds.
3. Super table size of uv printer ensure you can print on any media with max. 21*30cm printing area.
4. Thicken aluminium profile of uv printer made as the keel of the machine to ensure the machine stable working.
5. Support max. material thickness 15cm. expand more printing area for customer.
5. Support max. material thickness 15cm. expand more printing area for customer.
6. Modularized design of the flatbed of to ensure the fast Focus-Pallet-Add-onfamily exchanging procedure for get a mass production.
7. Intelligent Anti-Scratch-Protection system can detect the media by both red ray sensors to prevent the print head from scratching.

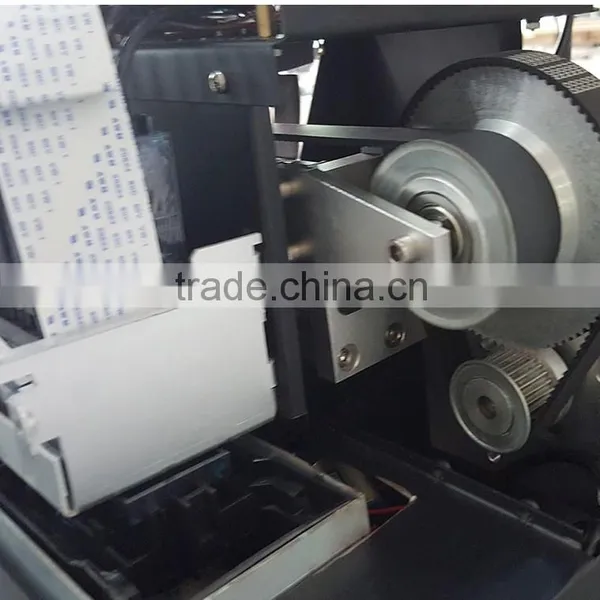

And ball screw design can make printing resolution much higher and printing more stable.
8. Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing,
to let you operate flatbed printer more convinence.
9. Patented Focus APCDS system can automatic detect the X(carriage), Y(flatbed) motion pulse and send back the real motion data to
mainboard for Interpolating,combine wiht the closed-loop structure circuit design to enhance the stability of the system and ensure
the flatbed printing with one pass printing precision and repeat printing precision.
10. Ball screw and raster make printing resolution better
11. High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without
waiting, also the LED light cost less power and harmless for human health. Combine with the high effective water circulation cooling system
to ensure the stable printing.
12. 6 color customize channel of uv printer can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.
13. Unique 3D texture output option of UV flatbed printer is available.
