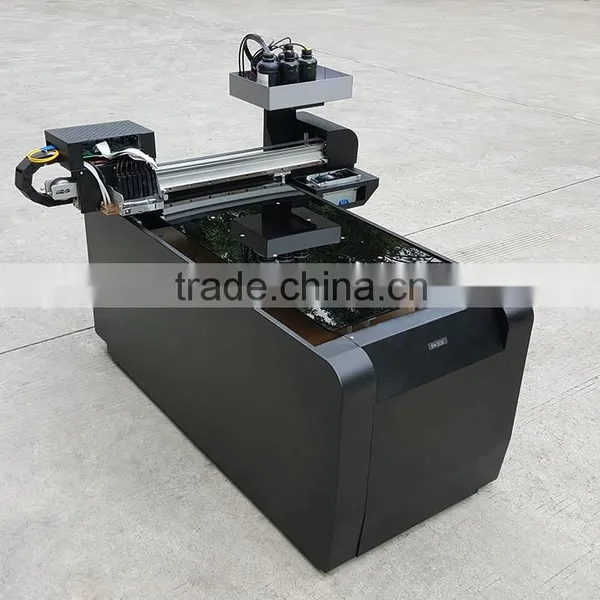

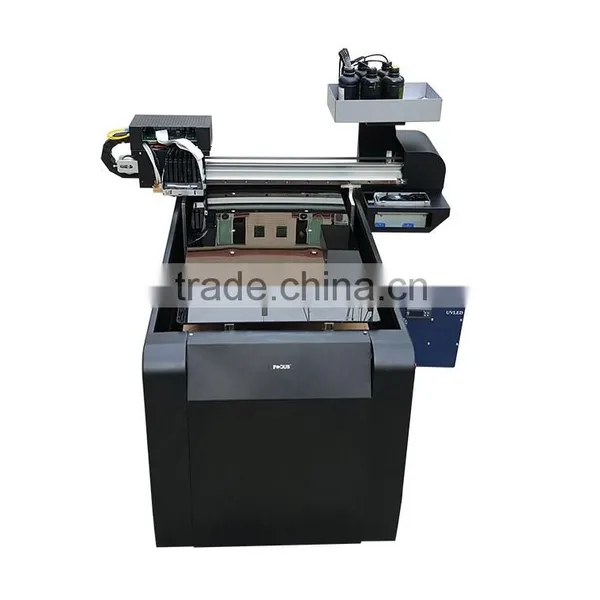

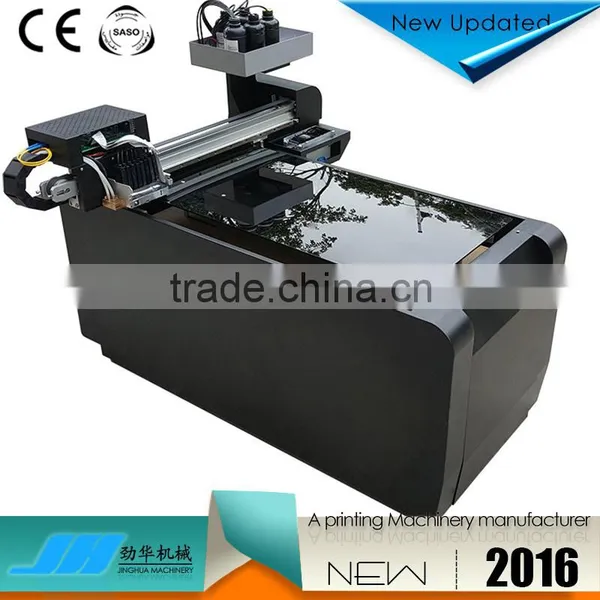

Focus new design Frigga- Jet DX5 UV a2 size flatbed printer

                                         JINGHUA new design Frigga- Jet DX5 UV a2 size flatbed printer

Product Description

Sapphire-Jet eco solvent  printer china which is a multi functional LED UV flatbed printer that created by Focus industrial co.,ltd. The uv

led printer was built with industrial configuration as thicken aluminum profile, water cyculation cooling system, 100W automatic detect UV Curing

system... 6 color and max. 5760 dpi printing resolution. Can print on bend, cylinder objects, balls and bottles. Output with good 3D texture printing

result...

 Online video demo of  A2 uv printer :  http://youtu.be/lyJm4KXnGmQ

Catalog download of  A2 uv printer  :


Technical features

1.  A2 uv printer has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design.

The new design reduces the environmental impact on equipment.

2. Fast printing speed by print on A4 size with full color of  A2 uv printer  only need 64 seconds.

3. Super table size of  uv printer ensure you can print on any media with max. 21*30cm printing area.

4. Thicken aluminium profile of  uv printer made as the keel of the machine to ensure the machine stable working.

5. Support max. material thickness 15cm. expand more printing area for customer.

5. Support max. material thickness 15cm. expand more printing area for customer.

6. Modularized design of the flatbed of  to ensure the fast Focus-Pallet-Add-onfamily exchanging procedure for get a mass production.

7. Intelligent Anti-Scratch-Protection system can detect the media by both red ray sensors to prevent the print head from scratching.

And ball screw design can make printing resolution much higher and printing more stable.

8. Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing,

to let you operate flatbed printer more convinence.

9. Patented Focus APCDS system can automatic detect the X(carriage), Y(flatbed) motion pulse and send back the real motion data to

mainboard for Interpolating,combine wiht the closed-loop structure circuit design to enhance the stability of the system and ensure

the flatbed printing with one pass printing precision and repeat printing precision.

10. Ball screw and raster make printing resolution better

11.  High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without

waiting, also the LED light cost less power and harmless for human health. Combine with the high effective water circulation cooling system

to ensure the stable printing.

12. 6 color customize channel of  uv printer can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.

13. Unique 3D texture output option  of UV flatbed printer is available.
