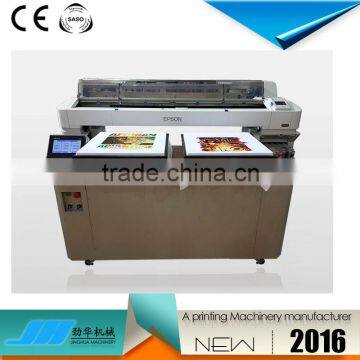

Polar-Jet direct to garment 3d t shirt printing machine

Direct to 3d t shirt printing machine  as following:

Focus Polar-Jet 3d t shirt printing machine is a newest created Industrial DTG direct to digital flatbed printer.  It was built under newest T7000 printing technology, 360nozzle per line, total 3600 nozzle, variable ink droplet technology get a grayscale printing result, Air negative pressure system go with individual keep wet cap station to anti head clog.  Match with Wasatch professional Color raster RIP to get a vivid printing result on light and dark underbase. Combine with Focus IPPS control system to get a reliable quality thanks to the top industrial configuration as French Scheider PLC controler, Touch screen,  Fuji film 750W AC servo motor, Dual ball screw and THK Linear rail. Compare with Original F2000 Tshirt printer, Focus Polar-Jet is faster, super printing size, industrial made and also costless. Focus Polar-Jet digital t shirt printing machine is the first choice to lead you get the industrial DTG printing.

Specification

  Catalog download: /download/a4dg665jxhwlbua/Focus_Polar-jet_industrial_DTG_printer_manual.rar

  Online video demo:  http://youtu.be/44AOUodn0v4

Technical features

 1.  New revolutionary printing technology

 Flatbed printer polar-Jet was built with newest printing technology, Mounted with newest advanced piezzo print head.  Variable size ink droplet technology, Smallest drop size 3.5piccolitters to get a grayscale printing result,  720 nozzle per color X 5 color, total 3600 nozzle, Maximum printing resolution 2880*1440dpi.

2. New ink supply system to anti-clog of print head.
Configure with negative air supply system to the damper and print head kit to solve out the head clog problem. Can get a obvious effective for white ink printing especially and high speed printing. The old version model with DX5 print head all are suppy the ink to the print head by syphonage way, so the white ink will be easy to clog as longtime settling. But with the negative pressure system, the ink inside the damper and print head will be absorbed by the negative pressure to keep a certain ink level without change.  so it can  prevent the ink clog, ink dripping and ink Oblique jet effectively.

3. New designed keep wet cap station
The new designed cap station divide each cap for each color line individual, traditional printer all use one cap for all color or half color, so it will cause the ink get mixed inside the cap station during keep wet at night. so the color near white head will be easy to be clogged, so the new cap station is designed specially  for prevent the ink mixture and head clog.

4. No chips reset require
Focus invented chips reset system let you forget the problems of  reset the ink cartridge chips, chips can not be detected... also 700ml big ink tank can reduce you job of refilling.

5. TCP/IP Ethernet cable interface
Print  via TCP/IP Ethernet cable let the data processing faster than traditional  USB 2.0/3.0 way

6. Supported by Wasatch professional Image raster RIP software
Wasatch SoftRIP helps users achieve superior color accuracy, high production speed, variable data customization, spot matching and cost savings with direct-to-garment inkjet printers, support ICC revise, ICC maker, Custom ink channel setting.  Printing to dark garments has never been easier! With Wasatch's new Auto-Generation features selected, white ink will automatically be printed as an underlay of your image. Use the Wasatch Tracer to create a mask around your image to easily eliminate any image data that you don't want printed. This is ideal for images with background colors that are not a solid fill. This will save on ink consumption and keep the "hand" of your printed shirt light.

7. Intellective PLC control system

Polar-Jet 3d t shirt printing machine  use the intellective French Scheider brand PLC controller to control all motion signal as forward/backward, online/offline to ensure the reliable working.

8. French Schneider brand control panel
The Scheider brand control panel make you opreate the machine easier and Humanity .

9. Mounted with Fuji 750W servo motor
The Fuji brand 750W  servo motor was mounted at Polar-jet for drive the flatbed/ pallet backward/forward motion. Strong powerful and the open loop design make sure the flatbed motion with high precision.

10.  Automatic media thickness adjustment
Polar-Jet support maximum 80cm media thickness, just input the media thickness number to the control panel.

11. Duall ball screw & linear rail for Z axis motion
Ball screw and linear rail were mounted at both side of the flatbed to guide the top printer move at Z axis with high precision, ensure the printing table water level at any positon to get a equal printing quality.

12. Dual ball screw and linear rial for Y axis motion
Printing table motion precision will effect the printing result directly, especially for print on dark underbase, as the rough motion precision will cause the printing image overlap. Polar-jet mounted with the Japan NSK brand ball screw combine with THk brand rail at both side for

a high motion precision with error less than 0.05mm repeatedly.

13. Easy-changing pallet
Polar-Jet digital t shirt printing machine support dual T-shirt printing pallet with size 40cm*55cm for each and big pallet with maximum printing size100*70CM.

Printing sample

Warranty

1.We provide 13month warranty since the shippin date.

 2.We have completely english instruction video and manual for you.

 3.We provide 2 days free online training.

 4. Engineer fly to your site for final repair if needed.

Packaging & Shipping

Polar-Jet flatbed printer fast speed top sale industrial digital tshirt printing
