China High Profassional Grinding Ball Rolling Machine with CE and ISO
Introduction of Ball Rolling Machine
Ball rolling machine is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc. It is used for grinding various ore and other grindable materials dry or wet.
Structural Feature of Ball Rolling Machine
Ball rolling machine is a principle and cylindrical revolving device, and belongs to external gear-driving ball mill. The materials are transported by feeder, and gets into mill chamber through hollow screw axis equably, and there is lining plate and steel balls in the chamber. When the cylinder body goes round and round, the steel ball is taken to certain height, then falls down, and the materials are struck and grinded heavily. The above action repeats constantly till the size of materials reaches the required fineness. The powdery materials are discharged through discharge grate plate, and the milling work is over.
Ball mill machine mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance. The ball mill has the features of stable running and reliable working.
|
Type
|
Model
|
Drum (mm)
|
Volume (m3)
|
Revolution (r/min)
|
Motor (KW)
|
Discharging Size (mm)
|
Output (t/h)
|
|
Wet-Grate Ball Mills
|
MQ1530 |
1500×3000 |
4.5 |
26.5-29.8 |
95 |
0.3-0.074 |
6.1-3.1 |
MQ2130 |
2100×3000 |
9.2 |
22.2-25.2 |
210 |
0.3-0.074 |
14-6.4 |
|
MQ2430 |
2400×3000 |
12.2 |
20.8-23.5 |
240 |
0.3-0.074 |
18.5-8.7 |
|
MQ2736 |
2700×3600 |
18.4 |
19.6-22.2 |
400 |
0.3-0.074 |
28-13 |
|
MQ3245 |
3200×4500 |
32.8 |
18-20.4 |
800 |
0.3-0.074 |
49-24 |
|
MQ3660 |
3600×6000 |
54.4 |
17-19.2 |
1600 |
0.3-0.074 |
82-38 |
|
|
Dry-Grate Ball Mills
|
MQG1515 |
1500×1500 |
2.2 |
26.5-29.8 |
60 |
0.4-0.074 |
5.2-1.9 |
MQG1522 |
1500×2250 |
3.4 |
26.5-29.8 |
75 |
0.4-0.074 |
10.2-2.7 |
|
MQG1530 |
1500×3000 |
4.5 |
26.5-29.8 |
95 |
0.4-0.074 |
14-3.6 |
|
MQG2122 |
2100×2200 |
6.7 |
22.2-25.2 |
155 |
0.4-0.074 |
25-5 |
|
MQG2424 |
2400×2400 |
9.8 |
20.8-23.5 |
210 |
0.4-0.074 |
29-7.5 |
|
MQG2430 |
2400×3000 |
12.2 |
20.8-23.5 |
240 |
0.4-0.074 |
38-9.5 |
|
|
Over-flow Ball Mills
|
MQY1530 |
1500×3000 |
4.5 |
26.5-29.8 |
95 |
0.3-0.074 |
6-2.8 |
MQY2136 |
2100×3600 |
11 |
19-25.2 |
210 |
0.3-0.074 |
12.8-6 |
|
MQY2430 |
2400×3000 |
12.2 |
17.8-23.5 |
240 |
0.3-0.074 |
16.6-7.8 |
|
MQY2740 |
2700×4000 |
20.4 |
16.8-22.2 |
400 |
0.3-0.074 |
27.7-13 |
|
MQY3254 |
3200×5400 |
39.4 |
15.5-20.4 |
1000 |
0.3-0.074 |
52.8-25.9 |
|
MQY3660 |
3600×6000 |
54.4 |
14.5-19.2 |
1250 |
0.3-0.074 |
74.1-32.4 |
Export standard,nude packing in container.if client have requirement,we can meet your requirements.
Pre-sale support
Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients.
Services during the sale
Pre-check and accept products ahead of delivery;
help clients to draft solving plans.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.

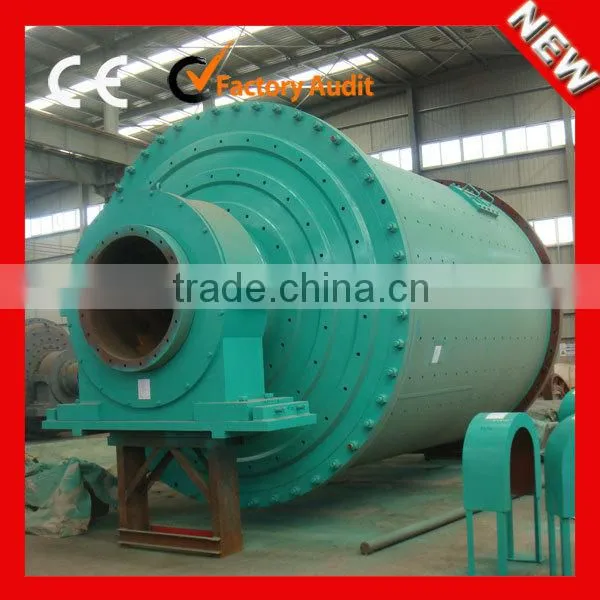

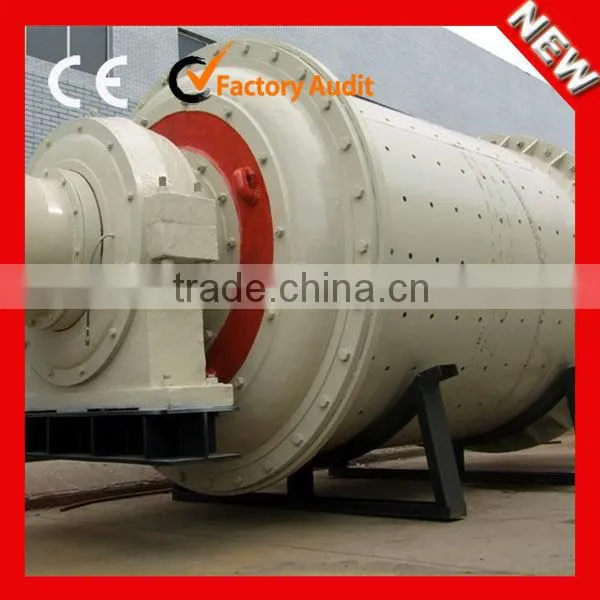

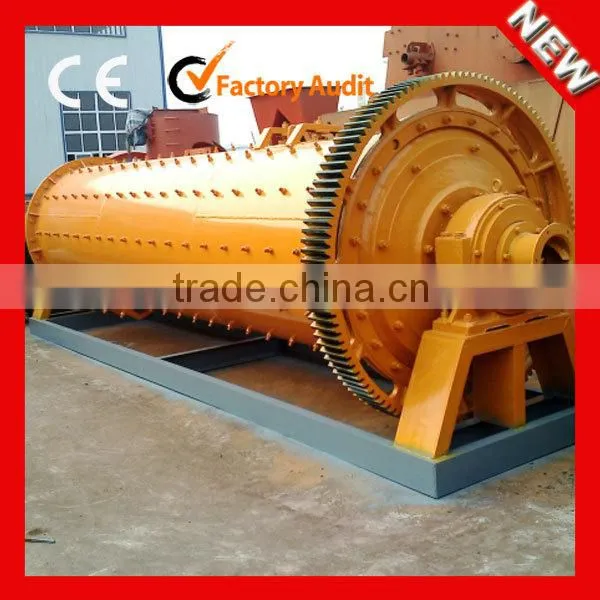

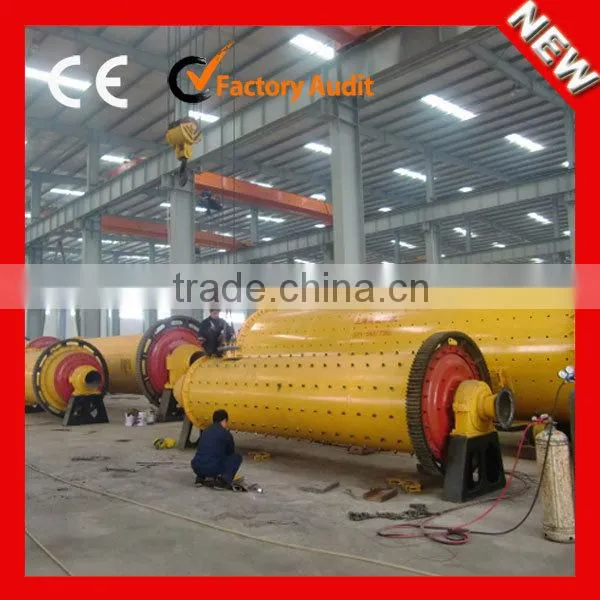

Product detail of ball mill machine
Zoonye ball rolling machine prices is low and reasonable.
