Specifications
Gold flotation machine1.High capacity
2.Work efficiently for more profits
3. CE/ISO
4. Low price, quickly deliv
Product Introduce of Flotation Machine :
The flotation machine is mainly composed of pulp chute, mixing device, air charging system, mineralized froth discharging device and electric motor. It is used for the selection of talcum etc. Besides, Stat, and also for roughing and selecting of the ferrous metals, precious metals and non-metallic mineral. It is also widely used in water purification. Therefore, the flotation machine is the most anticipated device in flotation, ore processing production. It is more efficient and more economy compared with the other device.
Application Materials of Flotation Machine:
Slime,talcum,Copper, Iron ore,Gold,limestone,Slag, limestone, plaster,quartz
Working Principle of Flotation Machine:
1. The impeller of flotation machine for copper ore is driven by V-belts, which can bring the centrifugal effect to form negative pressure.
2. While extracting sufficient air to mix with ore pulp, the machine stirs ore pulp and mixes it with chemicals to form mineralized froth.
3. By adjusting the height of the flash board to control the liquid level, the useful froth can be scraped from the loam board.
4. The height of the strobe must be adjusted carefully to keep the stabilization of liquid level and scrape the mineralized froth to the launder.
5. The impellers and stators should be kept at a distance and should be changed when worn. The bearing in the pump should be maintained every three months.
Technical date of Flotation Machine:
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
|
Trough cubage (m³) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
|
Impeller Diameter (mm) |
300 |
350 |
450 |
550 |
650 |
760 |
|
Production capacity (m³/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
|
Impeller Rotation speed (r/min) |
386 |
400 |
330 |
268 |
220 |
191 |
|
Motor |
Model |
1) Y90L-4 |
1)Y100L2-4 |
1)Y132M2-6 |
1)Y160L-6 |
1)Y180L-6 |
1)Y250M-8 |
2)Y90S-4 |
2)Y90S-4 |
2)Y90S-4 |
2)Y90S-4 |
2)Y90L-4 |
2)Y100L-6 |
||
Power (kw) |
1)1.5 |
1)3 |
1)5.5 |
1)11 |
1)15 |
1)30 |
|
2)1.1 |
2)1.1 |
2) 1.1 |
2)1.1 |
2)1.5 |
2)1.5 |
||
Dimension (mm) |
700*700*750 |
900*820*950 |
1100*1100*1100 |
1700*1600*1150 |
1850*2050*1200 |
2200*2900* 1400 |
|
Single trough weight (kg) |
468 |
990 |
1873 |
2538 |
2838 |
4129 |
|

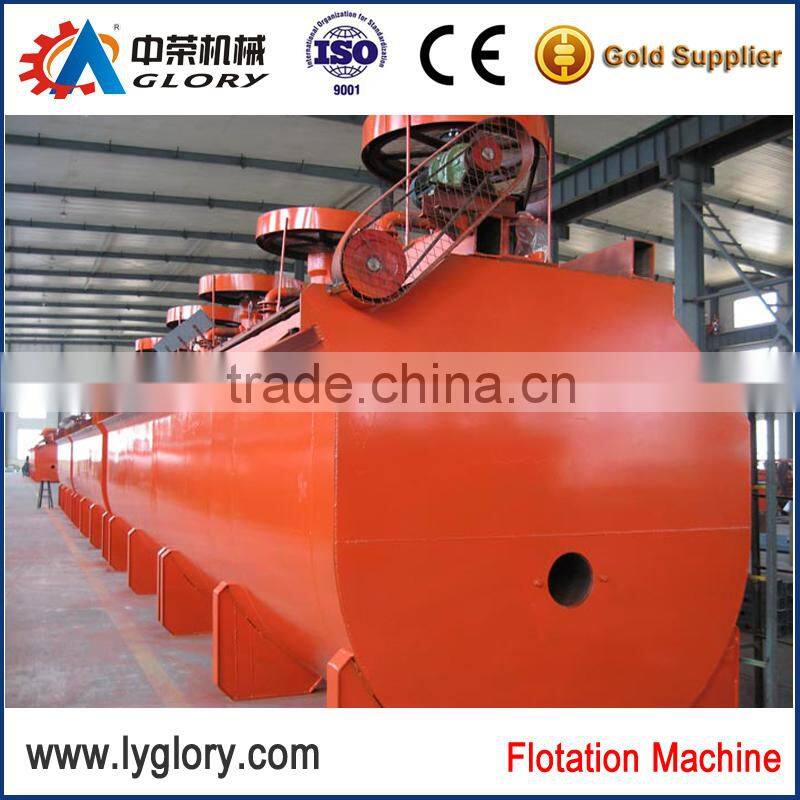

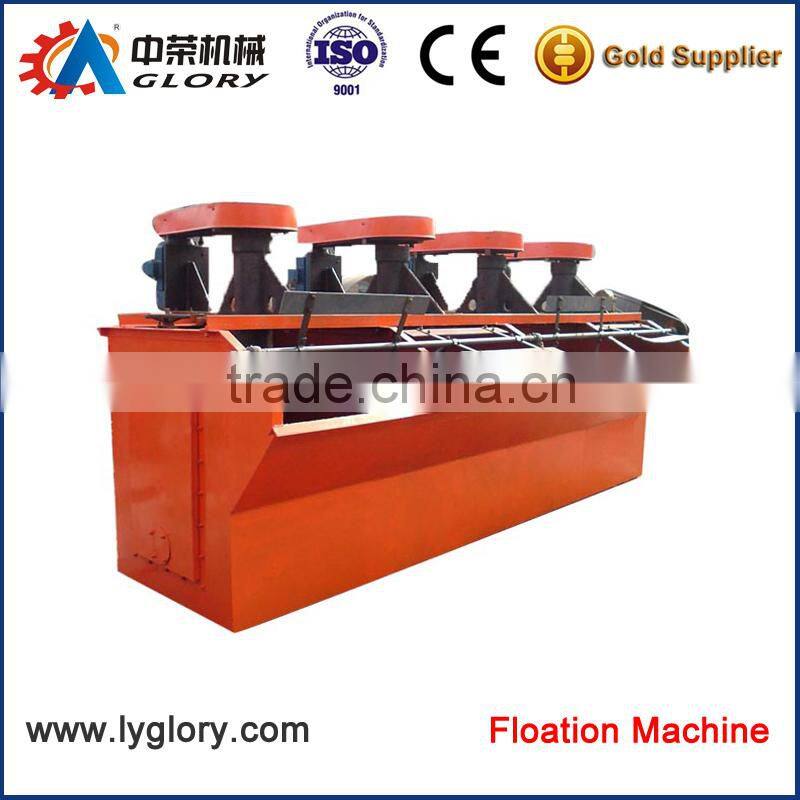

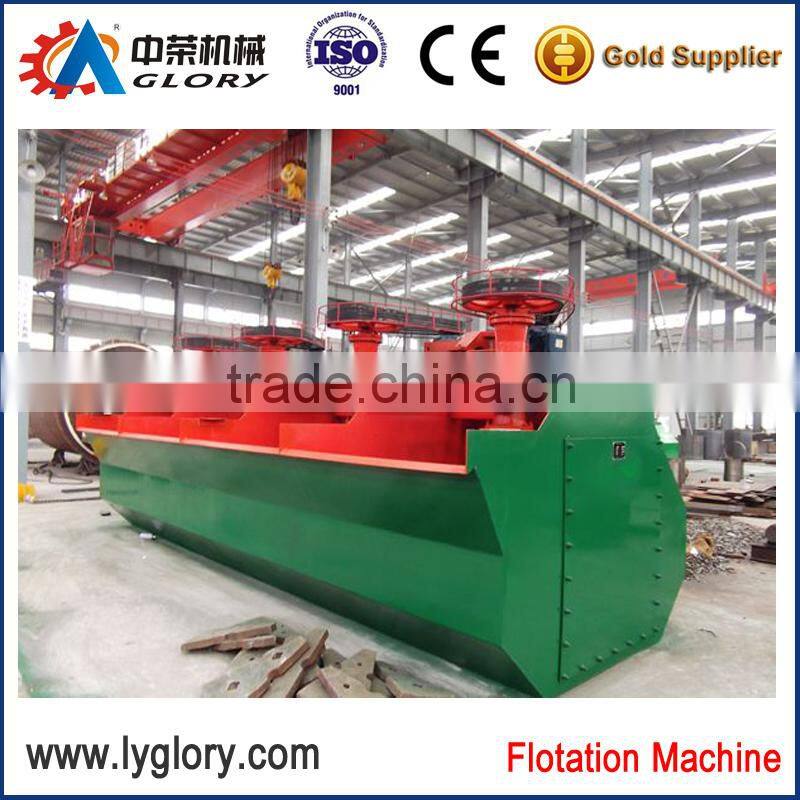

Pictures of Flotation Machine
Process capacity
Packaging:
Flotation machine body is in Standard containers,or in bulks, motors and small parts are packed in wooden cases.
Payment Term:
1. T/T and LC is usually used.
2. 30% T/T in advanced, and balance to be paid before delivery.
3. Take pictures or video in process and finish product before delivery to approval.
Transportation:
1. Export Port is Qingdao, Tianjin or Shanghai BY SEA.
2. If no request appoint port, we usally export from Qingdao Port.
3. Trade Term is usally based on FOB, C&F, CIF.
4. Shipping Advice will be provided for each shipment.
Professional mining equipment supplier with one-site service, Supply range is as follows:
Ore Dressing Equipment: Cement Mill, Slag Mill, Rod Mill, Ball Mill
Crushing/Screening Equipment: Jaw Crusher, Cone Crusher, Impact Crusher, Hammer Crusher, Crushing Plant, Vibrating Screen
Hoisting/Conveyor Equipment: Conveyor, Hoister,
Washing Equipment: Classifier, Flotation Equipment, Magnetic Separator
Installation and commissioning: If installation and commissioning service is requested, technical person will go to user’s working site for support. Details will be negotiated.
Quality Guarantee: Guarantee one year from shipment date.
Technical support: Product specification, Use Manual, Technical data and etc will be provided.
Related Spare parts are serviced.
Gold flotation machine
