HIW-90E/L Weili Hydraulic Ironworker Machine

Name: HIW-90E/L Weili Hydraulic Ironworker Machine
Brand: Tongwei
SKU: 116443533
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Tongwei

Model Number:

HIW-90E/L weili hydraulic ironworker machine

Nantong Weili CNC Machine Tool Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Tongwei

Model Number HIW-90E/L weili hydraulic ironworker machine

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

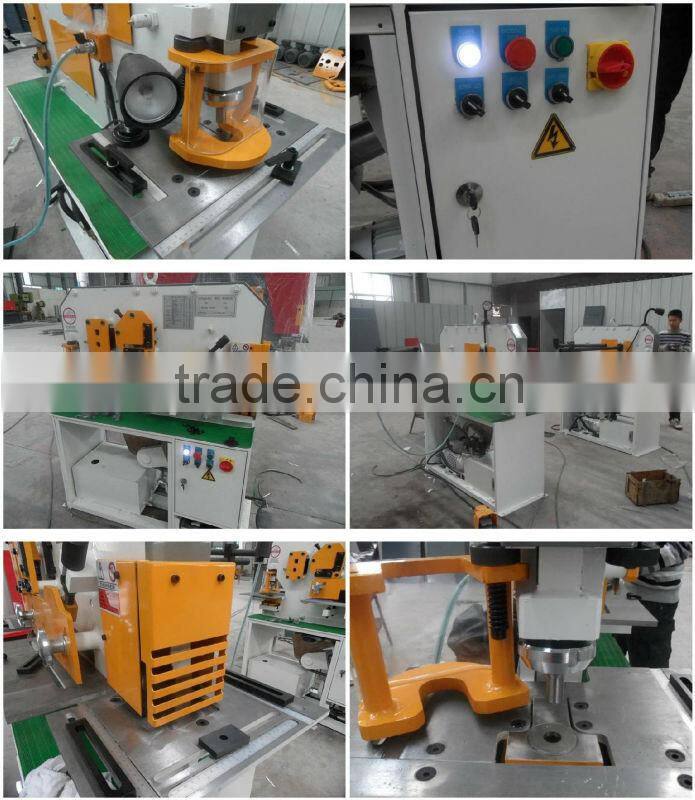

HIW-90E/L weili hydraulic ironworker machine
1. Temperature Cooling System
2. Automatic holding tight system

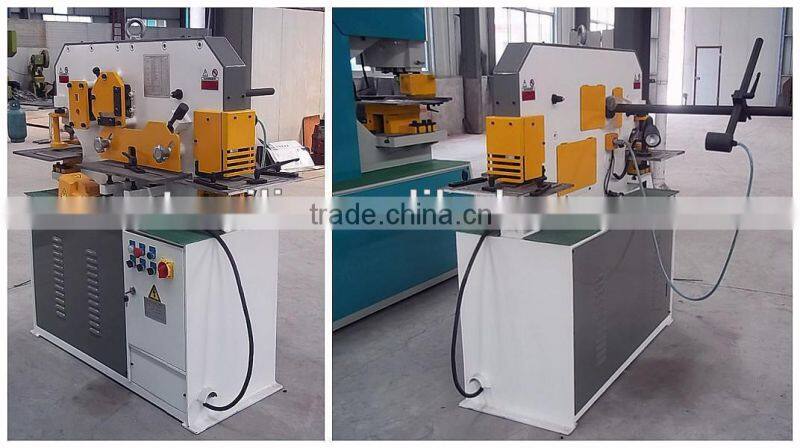

HIW-90E/L weili hydraulic ironworker machine

Remark:

1.Random machine (the following moulds are installed in the machine)

a. A pair of round hole punching die

b. A set of square and round bar blade

c. A set of angle stell blade

d. A set of shearing plate blade

e. A set of notching blade

Free sccessories

1. Foot pedal-1 pcs

2. Back gauge-1 pcs

3. Oil gun-1 pcs

4. Hook wrench-1 pcs

5. Socket head wrench-1 set

Technical Parameter

Model			HIW-60/L	HIW-90/E/L	HIW-120/E/L	HIW-160/E/L	HIW-200/E/L	HIW-250/E/L
Processing Capacity (KN)			600	900	1200	1600	2000	2500
Material Tensile Strength (Mpa)			≤450	≤450	≤450	≤450	≤450	≤450
Ram Stroke(mm)			80	80	80	80	100	100
Number of Stroke(times/min)			8-22	8-22	8-22	8-22	8-24	8-24
Throat Depth			300	355	400	600	550	550
Shear Angle			7°	8°	8°	8°	8°	8°
Flat Shearing	Max. Shearing Capacity (thickness* width (mm)		16×250	20×330	25×330	30×355	35×400	40×450
Flat Shearing	Max. Shearing Capacity (thickness* width (mm)		8×400	10×480	16×600	20×600	25×700	30×750
Bar Shearing	Square Bar(mm)		40	45	50	55	60	65
	Round Bar (mm)		45	50	60	65	70	80
	C-channel (mm)		126	160	200	280	300	320
	I-beam (mm)		126	160	200	280	300	320
Angle shearing	90° shearing (mm)		120×12	140×12	160×14	180×16	200×18	200×20
Angle shearing	45° shearing (mm)		70x8	70x10	80x7	80x10	80x10	80x10
Hole Punching	Max. Punching Capacity (diameter* thickness) (mm)		Φ25*16	Φ30*20	Φ35*25	Φ38*28	Φ40*35	Φ40*40
Motor (KW)			4	5.5	7.5	11	15	18.5
Dimension(mm)		Length	1650	1950	2350	2680	2800	3200
		Width	800	900	980	1060	1260	1440
		Height	1780	1930	2100	2380	2420	2450
Weight			1800	2600	4800	6800	9200	12800
