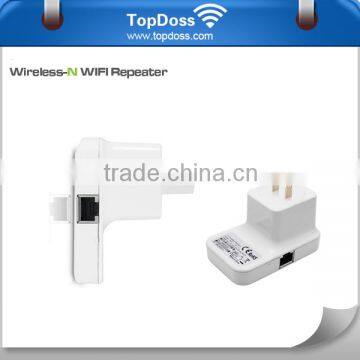

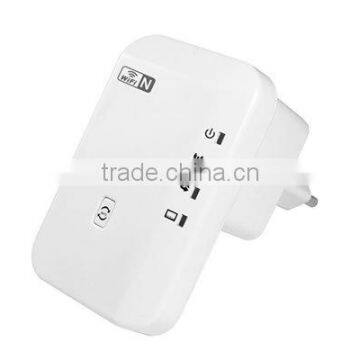

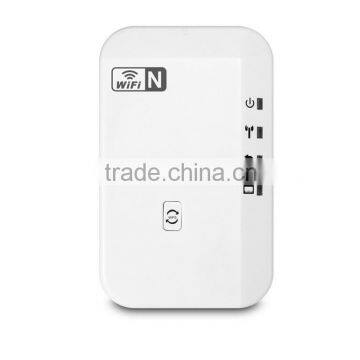

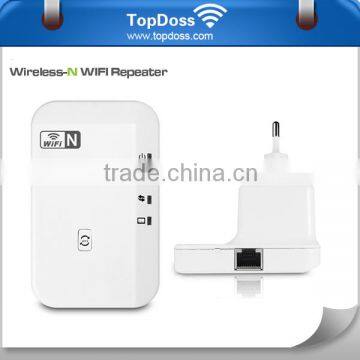

300mbps 220v Wlan Outdoor Signal Wireless-N Repeater Wifi Signal Repeater

Wireless

  signal repeater

Standard

IEEE802.11b, IEEE 802.11g, IEEE 802.11n

Modulation

802.11b: DSSS / BPSK / QPSK / CCK

802.11g: OFDM / DSSS / BPSK / QPSK / CCK

802.11n: OFDM / DSSS / BPSK / QPSK / CCK

Speed

802.11b: 11Mbps
802.11g: 54Mbps
802.11n: 300Mbps

Channel

11: (Ch.1-11) - USA
13: (Ch.1-13) – Europe
14: (Ch.1-14) – Japan

Frequency band

2.412~2.462GHz –USA
2.412~2.472GHz –Europe ETSI
2.412~2.484GHz –Japan

Power

802.11b: 17dBm ± 1.5 dBm
802.11g: 14dBm ± 1.5 dBm
802.11n: 14dBm ± 1.5 dBm

Sensitivity

802.11b: -83dBm /802.11g: -70dBm / 802.11n: -68dBm

Antenna

2 x 3dBi Integrated Antennas

Distance

Outdoors 300m, Indoor 100m (According to the actual environment change)

Security

64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS

Software

Standard Version

RFC768 User Datagram Protocol(UDP)
RFC791 Internet Protocol(IP)
RFC792 Internet Control Message Protocol
RFC793 Transmission Control Protocol(TCP)
bandwidth: 20MHz, 40MHz, Automatic(option)
Wireless Mode: 11n only, 11 b/g/n mixed, 11 b/g mixed, 11g only, 11b only(option)

Mode

AP Mode / Repeater Mode

Wireless Security

Wireless MAC address Screening
Wireless security function switch
64/128/152-bit WEP
WPA-PSK/WPA2-PSK, WPA/WPA2

Function

IP bandwidth control (Router mode support)
DNS Relay (Router mode support)
VPN Pass-through (Router mode support)
Static Router (Router mode support)
DHCP Server (Router mode support)

DHCP settings

Server list (Router mode support)
Static IP address allocation (Router mode support)

Security
Settings

IP and MAC address binding against ARP attacks (Router mode support)
IP address Screening (Router mode support)
Name Screening (Router mode support)
MAC address Screening (Router mode support)

System Tools

Traffic statistics
System Journal

Hardware

Ports

1 x RJ45 Jack

Button

Reset WPS

LED

1 * LAN, 1 * WLAN, 1 * Power, 1 * WPS

Chipset

RTL8196E

Flash

16Mbps

SDRAM

128Mbps

Power supply

Internal DC5V / 1A

Power plug

EU plug

Power consumption

2.3W

Rated voltage/ frequency /current

100-240 VAC 50/60Hz, 0.1A Max.,

Environmental

Operating temperature

0 ~ 40 Celsius degree

Storage temperature

-10 ~ 70 Celsius degree

Relative humidity

10% ~ 90% (Non Condensation)

Product information:

Color

White + Black

Product size

Approx. 9.5 * 8cm / 3.74 * 3.15in

Product weight

Approx. 108g / 3.8oz

Package size

Approx. 18 * 11.8 * 6.6cm / 7.09 * 4.65 * 2.6in

Package weight

Approx. 218g / 7.68oz
