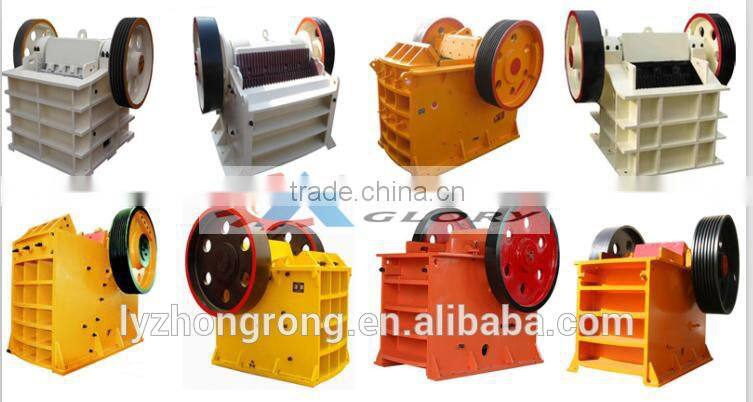

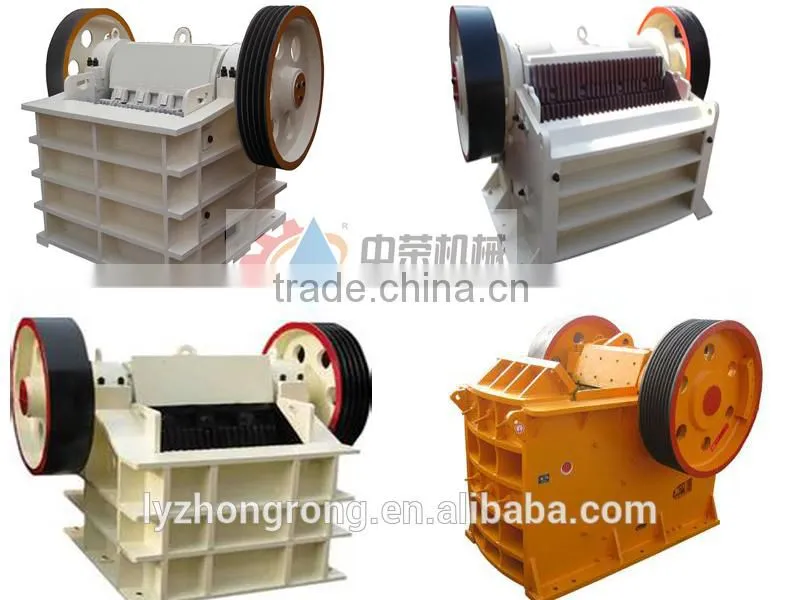

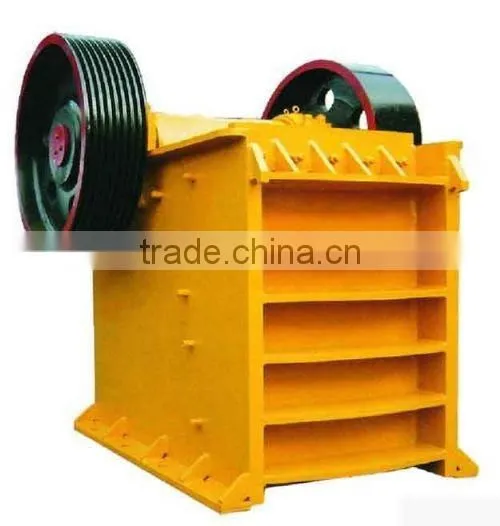

Jaw crusher
Advantages & applications:
1. large crushing ratio, uniform particle size.
2. easy to replace parts, maintenance, small amount of work.
3. simple structure, reliable operation and low cost .
4. low noise, less dust.
5. nesting population adjustment range, can meet different user requirements;
Working principle:
The motor transmits power through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves.So the moving jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
Technical Data:
Model |
Feed Opening Size(mm) |
Max Feed Size |
Capacity |
Motor Power |
Adjustment Range of Discharge Opening(mm) |
Eccentric Shaft Speed(r/min) |
Weight (t) |
PEX100*600 |
100*600 |
80 |
2-8 |
7.5 |
7-21 |
330 |
1 |
PEX150*750 |
150*750 |
120 |
5-16 |
15 |
18-48 |
320 |
3.5 |
PEX250*750 |
250*750 |
210 |
8-22 |
22 |
25-60 |
330 |
4.9 |
PEX250*1000 |
250*1000 |
210 |
10-32 |
30 |
25-60 |
330 |
6.5 |
PEX250*1200 |
250*1200 |
210 |
13-42 |
37 |
25-60 |
330 |
7.7 |
PEX350*700 |
350*700 |
300 |
16-35 |
30 |
30-80 |
300 |
6.5 |
PEX300*1300 |
300*1300 |
250 |
15-55 |
75 |
30-80 |
300 |
11 |
PE150*250 |
150*250 |
125 |
0.6-3 |
5.5 |
10-40 |
300 |
1 |
PE250*400 |
250*400 |
210 |
3-13 |
15 |
20-60 |
300 |
2.8 |
PE400*600 |
400*600 |
340 |
10-34 |
30 |
40-100 |
275 |
6.5 |
PE500*750 |
500*750 |
425 |
20-52 |
55 |
50-100 |
275 |
10.5 |
PE600*900 |
600*900 |
500 |
30-75 |
55 |
65-160 |
250 |
15.5 |
PE750*1060 |
750*1060 |
630 |
72-130 |
110 |
80-160 |
250 |
28 |
PE870*1060 |
870*1060 |
670 |
160-210 |
110 |
200-260 |
250 |
30.5 |
PE900*1200 |
900*1200 |
750 |
90-190 |
132-160 |
95-180 |
200 |
50 |
PE1000*1200 |
1000*1200 |
850 |
197-214 |
132-160 |
230-265 |
200 |
51 |
PE1200*1500 |
1200*1500 |
950 |
188-500 |
160-250 |
150-350 |
180 |
100.9 |
PE1400*1800 |
1400*1800 |
1100 |
288-480 |
250-315 |
500-1100 |
180 |
120 |

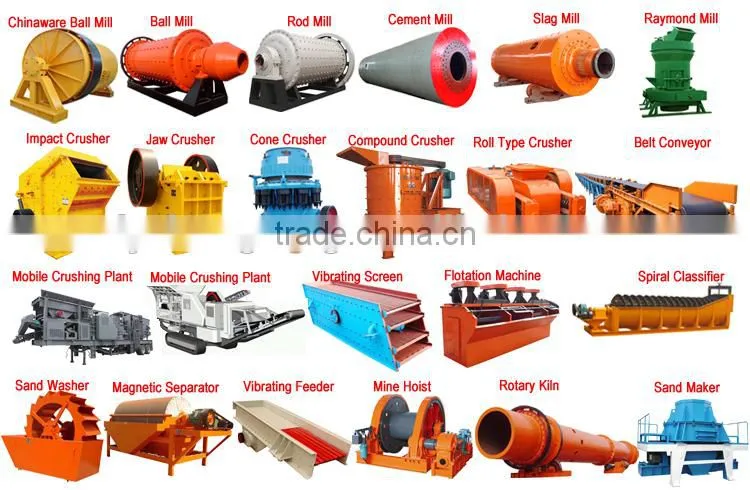

Mining machines we can supply:

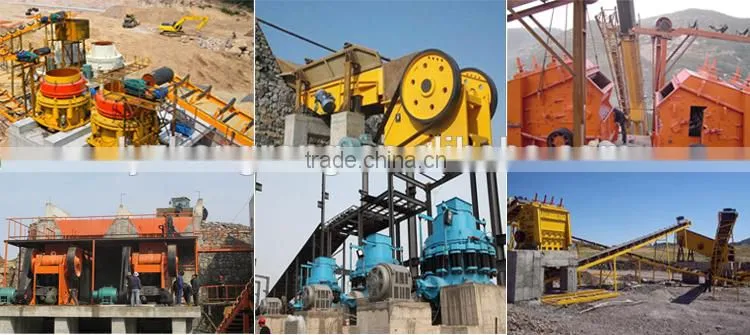

Customer visit:
Any interest or inquiry, please do not hesitate to contact me.
We will provide our best price and service to you.
